L shaped antenna simulation.#
In this notebook we will generate the mesh of an L shaped antenna and generate a json for a transient simulation.
import gmsh
from palacetoolkit.simulation import generate_palace_config_from_entities
from palacetoolkit.viz import view_mesh
from palacetoolkit.mesh import (
Entity,
run_entity_pipeline,
generate_3d_mesh,
create_graded_mesh
)
Parameters:#
h : Patch height along z-axis, specified as a scalar in meters.
l1 : Ground plane length along x-axis, specified as a scalar in meters
w1 : Ground plane width along y-axis, specified as a scalar in meters
w3 : Strip line width along y-axis, specified as a scalar in meters.
air_height : Air box height along z-axis, specified as a scalar in meters.
air_margin : Air box margin along x and y axes, specified as a scalar in meters.
freq : Simulation frequency in GHz, specified as a scalar.
filename : Output mesh filename, specified as a string.
l1: float = 0.06
w1: float = 0.06
w3: float = 0.002
h: float = 0.0013
air_height: float = 0.025
air_margin: float = 0.025
freq: float = 3.3
mesh_file: str = "l_antenna.msh"
eps_r: float = 2.2
loss_tan: float = 0.0009
wavelength = 3e8 / (freq * 1e9)
mesh_size = wavelength / 15
Initialize the model#
gmsh.initialize()
gmsh.model.add("patch_antenna")
kernel = gmsh.model.occ
Geometry Construction#
total_xmin = -l1/2 - air_margin
total_xmax = l1/2 + air_margin
total_ymin = -w1/2 - air_margin
total_ymax = w1/2 + air_margin
total_zmax = h + air_height
# 1. Create volumes
substrate = kernel.addBox(-l1/2, -w1/2, 0, l1, w1, h)
airsphere_radius = max(abs(total_xmin), abs(total_xmax), abs(total_ymin), abs(total_ymax), total_zmax)
air_sphere = kernel.addSphere(0.0, 0.0, 0.0, airsphere_radius)
kernel.synchronize()
# 2. Create 2D surfaces (ground, patch, ports)
ground_plane = kernel.addRectangle(-l1/2, -w1/2, 0, l1, w1)
strip_length_x = l1/2
strip_length_y = w1/2 + w3/2
feed_line_x = kernel.addRectangle(-l1/2, -w3/2, h, strip_length_x, w3)
feed_line_y = kernel.addRectangle(0, -w3/2, h, w3, strip_length_y)
top_conductor, top_map = kernel.fuse(
[(2, feed_line_x)], [(2, feed_line_y)],
removeObject=True, removeTool=True
)
kernel.synchronize()
# Lumped ports - build directly in-plane, no rotation
# Port 1: at x = -l1/2, vertical face
p1 = kernel.addPoint(-l1/2, -w3/2, 0)
p2 = kernel.addPoint(-l1/2, w3/2, 0)
p3 = kernel.addPoint(-l1/2, w3/2, h)
p4 = kernel.addPoint(-l1/2, -w3/2, h)
lp1_a = kernel.addLine(p1, p2)
lp1_b = kernel.addLine(p2, p3)
lp1_c = kernel.addLine(p3, p4)
lp1_d = kernel.addLine(p4, p1)
loop1 = kernel.addCurveLoop([lp1_a, lp1_b, lp1_c, lp1_d])
lumped_port_1 = kernel.addPlaneSurface([loop1])
kernel.synchronize()
# Port 2: at y = w1/2, vertical face
p5 = kernel.addPoint(0, w1/2, 0)
p6 = kernel.addPoint(w3, w1/2, 0)
p7 = kernel.addPoint(w3, w1/2, h)
p8 = kernel.addPoint(0, w1/2, h)
lp2_a = kernel.addLine(p5, p6)
lp2_b = kernel.addLine(p6, p7)
lp2_c = kernel.addLine(p7, p8)
lp2_d = kernel.addLine(p8, p5)
loop2 = kernel.addCurveLoop([lp2_a, lp2_b, lp2_c, lp2_d])
lumped_port_2 = kernel.addPlaneSurface([loop2])
kernel.synchronize()
# Define the entities which will be the physical groups.
entities = [
Entity("substrate", dim=3, btype="dielectric", mesh_order=1, tags=[substrate], loss_tan=loss_tan, eps_r=eps_r, mu_r=1.0),
Entity("air_sphere", dim=3, btype="dielectric", mesh_order=2, tags=[air_sphere], loss_tan=0.0, eps_r=1.0, mu_r=1.0),
Entity("top_conductor", dim=2, btype="pec", mesh_order=1, tags=[top_conductor[0][1]]),
Entity("ground_plane", dim=2, btype="pec", mesh_order=1, tags=[ground_plane]),
Entity("lumped_port_1", dim=2, btype="lumped_port", mesh_order=0, tags=[lumped_port_1], R=50.0, direction="+Z", excitation=True),
Entity("lumped_port_2", dim=2, btype="lumped_port", mesh_order=0, tags=[lumped_port_2], R=50.0, direction="+Z", excitation=False),
]
Info : [ 0%] Union
Info : [ 10%] Union
Info : [ 20%] Union - Performing Vertex-Face intersection
Info : [ 30%] Union
Info : [ 40%] Union
Info : [ 50%] Union
Info : [ 60%] Union
Info : [ 70%] Union - Filling splits of vertices
Info : [ 80%] Union - Splitting faces
Info : Cannot bind existing OpenCASCADE surface 9 to second tag 10
Info : Could not preserve tag of 2D object 10 (->9)
pg_map = run_entity_pipeline(entities)
lumped_port_1 = entities[-1].dimtags[0]
lumped_port_2 = entities[-2].dimtags[0]
# Refine near the top conductor and also locally refine the ports.
create_graded_mesh( wavelength,
ppw_near=100,
ppw_far=15,
set_as_background=True,
local_refinements = {lumped_port_1: 100, lumped_port_2 : 100})
mesh_sizes = {
"substrate": wavelength / 12,
"air_sphere": wavelength / 4,
"lumped_port_1": wavelength / 18,
"lumped_port_2": wavelength / 18,
"top_conductor": wavelength /10
}
generate_3d_mesh(entities, mesh_sizes, mesh_file, optimize=True, verbose=False)
gmsh.finalize()
Physical group 'substrate' (dim=3): pg=1, tags=[1]
Physical group 'air_sphere' (dim=3): pg=2, tags=[2]
Physical group 'top_conductor' (dim=2): pg=3, tags=[9]
Physical group 'ground_plane' (dim=2): pg=4, tags=[8]
Physical group 'lumped_port_1' (dim=2): pg=5, tags=[10]
Physical group 'lumped_port_2' (dim=2): pg=6, tags=[11]
Physical group 'air_sphere__substrate' (dim=2): pg=7, tags=[12, 13, 14, 15, 16, 17, 18, 19]
Physical group 'air_sphere__None' (dim=2): pg=8, tags=[20]
ignoring 3 curves from {'air_sphere__None'}
global: 28 curves, SizeMin=0.0009
ppw_near=100 ppw_far=15
SizeMax=0.0061 transition=0.0227
local: dimtag=(2, 11), ppw=100, SizeMin=0.0009
local: dimtag=(2, 10), ppw=100, SizeMin=0.0009

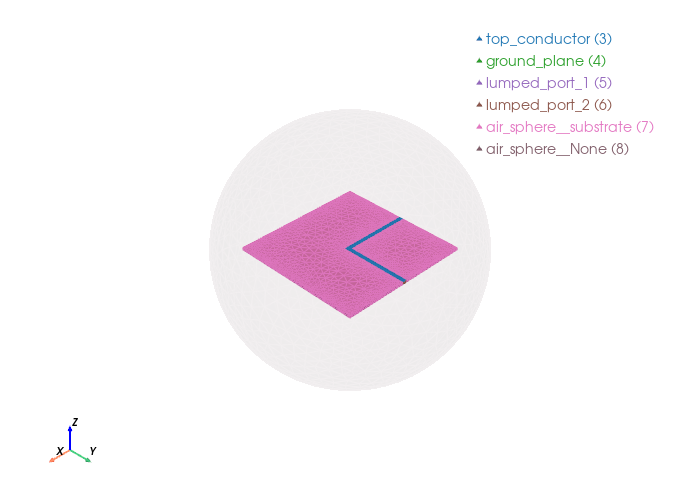

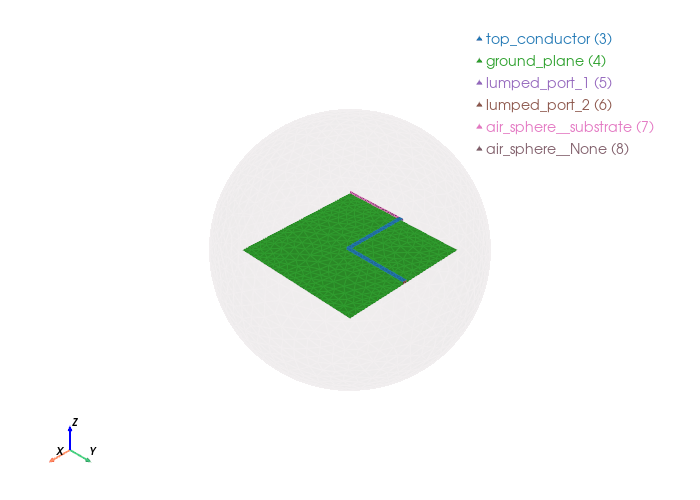

view_mesh(mesh_file, transparent_groups= "air_sphere__None")
Loading mesh file: l_antenna.msh
Groups to render transparent: air_sphere__None
Mesh loaded successfully with 2 cell blocks
Found 10310 triangles total
Physical group tags in mesh: {3: 'top_conductor', 4: 'ground_plane', 5: 'lumped_port_1', 6: 'lumped_port_2', 7: 'air_sphere__substrate', 8: 'air_sphere__None'}
Simulation Configuration#
We define the key parameters for the electromagnetic simulation here. These settings control the frequency sweep range, material properties (dielectric constant and loss tangent for the substrate), and solver-specific configurations like port impedance and mesh order.
output_file : output filename for the configuration JSON file
freq : frequency for the simulation (GHz)
eps_r: relative permittivity of the substrate
loss_tan: loss tangent of the substrate
port_impedance: characteristic impedance of the lumped port (Ohms)
solver_order: order of the finite element basis functions for the simulation (e.g., 1 for linear, 2 for quadratic)
output_file_transient: str = "l_antenna_transient.json"
output_file_driven: str = "l_antenna_driven.json"
freq: float = 3.64
eps_r: float = 2.2
loss_tan: float = 0.0009
port_impedance: float = 50.0
solver_order: int = 2
freq_min = 3.3
freq_max = 3.8
freq_step = 0.01
import numpy as np
eps_0 = 8.8541878128e-12
sigma = 2 * np.pi * freq * eps_0 * eps_r * loss_tan
Generating the Palace Configuration File#
Finally, we assemble the simulation parameters into two JSON configuration. One for a transient simulation and one for a driven where we check the s-parameters.
config_transient = generate_palace_config_from_entities(
entity_defs= [e.to_dict() for e in entities],
pg_map=pg_map,
mesh_file=mesh_file,
output_file=output_file_transient,
sim_type="transient",
excitation_freq=freq,
excitation_width=0.05,
max_time=0.5,
time_step=0.005,
save_step=2,
)
config_driven = generate_palace_config_from_entities(
entity_defs= [e.to_dict() for e in entities],
pg_map=pg_map,
mesh_file=mesh_file,
output_file=output_file_driven,
sim_type="driven",
L0=1.0,
solver_order=2,
absorbing_order=1,
farfield=False,
freq_min=3.3,
freq_max=3.8,
freq_step=0.01,
linear_maxits=300,
)
Palace config written to l_antenna_transient.json
Palace config written to l_antenna_driven.json
Running PALACE#
from palacetoolkit.simulation import run_palace
# Transient sim
run_palace(config_file="l_antenna_transient.json", num_procs=1)
Palace simulation output
Running: /home/runner/.cache/palacetoolkit/runtime/palace-cpu-v0.17.0/bin/palace --serial /home/runner/work/PalaceToolkit/PalaceToolkit/docs/examples/l_antenna_transient.json
>> /home/runner/.cache/palacetoolkit/runtime/palace-cpu-v0.17.0/bin/palace-x86_64.bin /home/runner/work/PalaceToolkit/PalaceToolkit/docs/examples/l_antenna_transient.json
_____________ _______
_____ __ \____ __ /____ ____________
____ /_/ / __ ` / / __ ` / ___/ _ \
___ _____/ /_/ / / /_/ / /__/ ___/
/__/ \___,__/__/\___,__/\_____\_____/
Git changeset ID: v0.17.0-272-gb22f654ab
Running with 1 MPI process, 1 OpenMP thread
Device configuration: omp,cpu
Memory configuration: host-std
libCEED backend: /cpu/self/xsmm/blocked
Added 1443 duplicate vertices for interior boundaries in the mesh
Added 3286 duplicate boundary elements for interior boundaries in the mesh
Characteristic length and time scales:
Lc = 1.100e-04 m, tc = 3.669e-04 ns
Finished partitioning mesh into 1 subdomain
Mesh curvature order: 1
Mesh bounding box:
(Xmin, Ymin, Zmin) = (-5.497e-05, -5.500e-05, -5.500e-05) m
(Xmax, Ymax, Zmax) = (+5.492e-05, +5.491e-05, +5.500e-05) m
Parallel Mesh Stats:
minimum average maximum total
vertices 16196 16196 16196 16196
edges 103526 103526 103526 103526
faces 169866 169866 169866 169866
elements 82533 82533 82533 82533
neighbors 0 0 0
minimum maximum
h 0.00474058 0.0966723
kappa 1.05585 7.38466
Estimated current per-rank memory usage is: Min. 107.5M, Max. 107.5M, Avg. 107.5M, Total 107.5M
Estimated current per-node memory usage is: Min. 107.5M, Max. 107.5M, Avg. 107.5M, Total 107.5M
Configuring Robin absorbing BC (order 1) at attributes:
8
Configuring Robin impedance BC for lumped ports at attributes:
5: Rs = 7.692e+01 Ω/sq, n = (-1.0,+0.0,+0.0)
6: Rs = 7.692e+01 Ω/sq, n = (+0.0,+1.0,+0.0)
Configuring lumped port circuit properties:
Index = 1: R = 5.000e+01 Ω
Index = 2: R = 5.000e+01 Ω
Configuring lumped port excitation source term at attributes:
5: Index = 1
Configuring Dirichlet PEC BC at attributes:
3-4
Assembling system matrices, number of global unknowns:
H1 (p = 2): 119722, ND (p = 2): 546784, RT (p = 2): 757197
Operator assembly level: Partial
Mesh geometries:
Tetrahedron: P = 20, Q = 14 (quadrature order = 4)
Computing transient response for:
Excitation with index 1 has contributions from:
Lumped port 1
It 0/100: t = 0.000000e+00 ns (elapsed time = 3.91e-07 s)
Sol. ||E|| = 0.000000e+00, ||B|| = 0.000000e+00
Field energy E (0.000e+00 J) + H (0.000e+00 J) = 0.000e+00 J
Wrote fields to disk (Paraview) at step 1
Updating solution error estimates
It 1/100: t = 5.000000e-03 ns (elapsed time = 1.33e+01 s)
Assembling multigrid hierarchy:
Level 0 (p = 1): 103526 unknowns
Level 1 (p = 2): 546784 unknowns
Level 0 (auxiliary) (p = 1): 16196 unknowns
Level 1 (auxiliary) (p = 2): 119722 unknowns
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.269615e-07
1 KSP residual norm ||r||_B = 9.638581e-08
2 KSP residual norm ||r||_B = 9.090338e-08
3 KSP residual norm ||r||_B = 1.059638e-07
4 KSP residual norm ||r||_B = 1.034920e-07
5 KSP residual norm ||r||_B = 1.117599e-07
6 KSP residual norm ||r||_B = 1.270557e-07
7 KSP residual norm ||r||_B = 1.577894e-07
8 KSP residual norm ||r||_B = 1.744215e-07
9 KSP residual norm ||r||_B = 1.860081e-07
10 KSP residual norm ||r||_B = 1.739801e-07
11 KSP residual norm ||r||_B = 1.199749e-07
12 KSP residual norm ||r||_B = 5.284112e-08
13 KSP residual norm ||r||_B = 1.724502e-08
14 KSP residual norm ||r||_B = 6.041985e-09
15 KSP residual norm ||r||_B = 1.954417e-09
16 KSP residual norm ||r||_B = 5.965344e-10
17 KSP residual norm ||r||_B = 1.753302e-10
18 KSP residual norm ||r||_B = 4.116981e-11
19 KSP residual norm ||r||_B = 9.040539e-12
20 KSP residual norm ||r||_B = 1.971564e-12
21 KSP residual norm ||r||_B = 4.175612e-13
22 KSP residual norm ||r||_B = 8.445354e-14
23 KSP residual norm ||r||_B = 1.724028e-14
24 KSP residual norm ||r||_B = 4.009776e-15
25 KSP residual norm ||r||_B = 9.299870e-16
PCG solver converged in 25 iterations (avg. reduction factor: 4.727e-01)
Sol. ||E|| = 6.207456e-04, ||B|| = 1.184226e-05
Field energy E (4.679e-23 J) + H (8.907e-23 J) = 1.359e-22 J
Updating solution error estimates
It 2/100: t = 1.000000e-02 ns (elapsed time = 8.61e+01 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 3.218285e-07
1 KSP residual norm ||r||_B = 2.402797e-07
2 KSP residual norm ||r||_B = 2.136394e-07
3 KSP residual norm ||r||_B = 2.067418e-07
4 KSP residual norm ||r||_B = 1.534972e-07
5 KSP residual norm ||r||_B = 1.107430e-07
6 KSP residual norm ||r||_B = 1.037793e-07
7 KSP residual norm ||r||_B = 1.630805e-07
8 KSP residual norm ||r||_B = 2.904015e-07
9 KSP residual norm ||r||_B = 3.066860e-07
10 KSP residual norm ||r||_B = 2.401787e-07
11 KSP residual norm ||r||_B = 2.028163e-07
12 KSP residual norm ||r||_B = 1.123193e-07
13 KSP residual norm ||r||_B = 3.391701e-08
14 KSP residual norm ||r||_B = 1.089747e-08
15 KSP residual norm ||r||_B = 3.959792e-09
16 KSP residual norm ||r||_B = 1.283984e-09
17 KSP residual norm ||r||_B = 4.052230e-10
18 KSP residual norm ||r||_B = 1.028321e-10
19 KSP residual norm ||r||_B = 2.288850e-11
20 KSP residual norm ||r||_B = 4.986390e-12
21 KSP residual norm ||r||_B = 1.071089e-12
22 KSP residual norm ||r||_B = 2.178071e-13
23 KSP residual norm ||r||_B = 4.397948e-14
24 KSP residual norm ||r||_B = 1.019627e-14
25 KSP residual norm ||r||_B = 2.364753e-15
26 KSP residual norm ||r||_B = 4.796732e-16
PCG solver converged in 26 iterations (avg. reduction factor: 4.652e-01)
Sol. ||E|| = 1.618930e-03, ||B|| = 3.176163e-05
Field energy E (3.184e-22 J) + H (6.408e-22 J) = 9.591e-22 J
Wrote fields to disk (Paraview) at step 3
Updating solution error estimates
It 3/100: t = 1.500000e-02 ns (elapsed time = 1.51e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 5.550643e-07
1 KSP residual norm ||r||_B = 4.167723e-07
2 KSP residual norm ||r||_B = 3.653085e-07
3 KSP residual norm ||r||_B = 3.300887e-07
4 KSP residual norm ||r||_B = 2.239714e-07
5 KSP residual norm ||r||_B = 1.325556e-07
6 KSP residual norm ||r||_B = 9.689586e-08
7 KSP residual norm ||r||_B = 1.325084e-07
8 KSP residual norm ||r||_B = 2.815588e-07
9 KSP residual norm ||r||_B = 4.042339e-07
10 KSP residual norm ||r||_B = 2.660841e-07
11 KSP residual norm ||r||_B = 1.781330e-07
12 KSP residual norm ||r||_B = 1.408980e-07
13 KSP residual norm ||r||_B = 5.128220e-08
14 KSP residual norm ||r||_B = 1.474511e-08
15 KSP residual norm ||r||_B = 5.185868e-09
16 KSP residual norm ||r||_B = 1.763136e-09
17 KSP residual norm ||r||_B = 6.063396e-10
18 KSP residual norm ||r||_B = 1.697828e-10
19 KSP residual norm ||r||_B = 3.921862e-11
20 KSP residual norm ||r||_B = 8.518479e-12
21 KSP residual norm ||r||_B = 1.818476e-12
22 KSP residual norm ||r||_B = 3.741248e-13
23 KSP residual norm ||r||_B = 7.680840e-14
24 KSP residual norm ||r||_B = 1.762443e-14
25 KSP residual norm ||r||_B = 4.008346e-15
26 KSP residual norm ||r||_B = 8.283037e-16
PCG solver converged in 26 iterations (avg. reduction factor: 4.660e-01)
Sol. ||E|| = 3.065937e-03, ||B|| = 6.003959e-05
Field energy E (1.142e-21 J) + H (2.290e-21 J) = 3.431e-21 J
Updating solution error estimates
It 4/100: t = 2.000000e-02 ns (elapsed time = 2.00e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 7.465293e-07
1 KSP residual norm ||r||_B = 5.646997e-07
2 KSP residual norm ||r||_B = 4.926416e-07
3 KSP residual norm ||r||_B = 4.282033e-07
4 KSP residual norm ||r||_B = 2.767784e-07
5 KSP residual norm ||r||_B = 1.423500e-07
6 KSP residual norm ||r||_B = 7.627427e-08
7 KSP residual norm ||r||_B = 7.226881e-08
8 KSP residual norm ||r||_B = 1.422638e-07
9 KSP residual norm ||r||_B = 3.093015e-07
10 KSP residual norm ||r||_B = 2.686064e-07
11 KSP residual norm ||r||_B = 1.020847e-07
12 KSP residual norm ||r||_B = 6.485175e-08
13 KSP residual norm ||r||_B = 4.802184e-08
14 KSP residual norm ||r||_B = 1.634871e-08
15 KSP residual norm ||r||_B = 5.392252e-09
16 KSP residual norm ||r||_B = 1.768094e-09
17 KSP residual norm ||r||_B = 6.475582e-10
18 KSP residual norm ||r||_B = 2.088451e-10
19 KSP residual norm ||r||_B = 5.169738e-11
20 KSP residual norm ||r||_B = 1.132769e-11
21 KSP residual norm ||r||_B = 2.409609e-12
22 KSP residual norm ||r||_B = 4.989038e-13
23 KSP residual norm ||r||_B = 1.035176e-13
24 KSP residual norm ||r||_B = 2.363000e-14
25 KSP residual norm ||r||_B = 5.315390e-15
26 KSP residual norm ||r||_B = 1.108101e-15
PCG solver converged in 26 iterations (avg. reduction factor: 4.684e-01)
Sol. ||E|| = 5.219159e-03, ||B|| = 1.025881e-04
Field energy E (3.309e-21 J) + H (6.685e-21 J) = 9.993e-21 J
Wrote fields to disk (Paraview) at step 5
Updating solution error estimates
It 5/100: t = 2.500000e-02 ns (elapsed time = 2.62e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.322281e-07
1 KSP residual norm ||r||_B = 6.983330e-07
2 KSP residual norm ||r||_B = 6.074601e-07
3 KSP residual norm ||r||_B = 5.309389e-07
4 KSP residual norm ||r||_B = 3.427587e-07
5 KSP residual norm ||r||_B = 1.780060e-07
6 KSP residual norm ||r||_B = 9.522359e-08
7 KSP residual norm ||r||_B = 8.927059e-08
8 KSP residual norm ||r||_B = 1.700808e-07
9 KSP residual norm ||r||_B = 3.429408e-07
10 KSP residual norm ||r||_B = 3.194525e-07
11 KSP residual norm ||r||_B = 1.972268e-07
12 KSP residual norm ||r||_B = 1.749048e-07
13 KSP residual norm ||r||_B = 8.065602e-08
14 KSP residual norm ||r||_B = 2.356404e-08
15 KSP residual norm ||r||_B = 8.230508e-09
16 KSP residual norm ||r||_B = 2.805624e-09
17 KSP residual norm ||r||_B = 9.747424e-10
18 KSP residual norm ||r||_B = 2.799007e-10
19 KSP residual norm ||r||_B = 6.554532e-11
20 KSP residual norm ||r||_B = 1.424816e-11
21 KSP residual norm ||r||_B = 3.036145e-12
22 KSP residual norm ||r||_B = 6.268577e-13
23 KSP residual norm ||r||_B = 1.292552e-13
24 KSP residual norm ||r||_B = 2.961630e-14
25 KSP residual norm ||r||_B = 6.705946e-15
26 KSP residual norm ||r||_B = 1.390290e-15
PCG solver converged in 26 iterations (avg. reduction factor: 4.675e-01)
Sol. ||E|| = 8.236126e-03, ||B|| = 1.619415e-04
Field energy E (8.239e-21 J) + H (1.666e-20 J) = 2.490e-20 J
Updating solution error estimates
It 6/100: t = 3.000000e-02 ns (elapsed time = 3.09e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.077389e-06
1 KSP residual norm ||r||_B = 8.068709e-07
2 KSP residual norm ||r||_B = 7.012312e-07
3 KSP residual norm ||r||_B = 6.060294e-07
4 KSP residual norm ||r||_B = 3.846205e-07
5 KSP residual norm ||r||_B = 1.897402e-07
6 KSP residual norm ||r||_B = 8.393093e-08
7 KSP residual norm ||r||_B = 5.247293e-08
8 KSP residual norm ||r||_B = 7.290549e-08
9 KSP residual norm ||r||_B = 1.598538e-07
10 KSP residual norm ||r||_B = 2.278531e-07
11 KSP residual norm ||r||_B = 1.584861e-07
12 KSP residual norm ||r||_B = 1.532520e-07
13 KSP residual norm ||r||_B = 8.762971e-08
14 KSP residual norm ||r||_B = 2.663719e-08
15 KSP residual norm ||r||_B = 9.340676e-09
16 KSP residual norm ||r||_B = 3.190482e-09
17 KSP residual norm ||r||_B = 1.109090e-09
18 KSP residual norm ||r||_B = 3.209563e-10
19 KSP residual norm ||r||_B = 7.557774e-11
20 KSP residual norm ||r||_B = 1.643757e-11
21 KSP residual norm ||r||_B = 3.500414e-12
22 KSP residual norm ||r||_B = 7.237556e-13
23 KSP residual norm ||r||_B = 1.494668e-13
24 KSP residual norm ||r||_B = 3.423373e-14
25 KSP residual norm ||r||_B = 7.739959e-15
26 KSP residual norm ||r||_B = 1.606443e-15
PCG solver converged in 26 iterations (avg. reduction factor: 4.695e-01)
Sol. ||E|| = 1.244637e-02, ||B|| = 2.449934e-04
Field energy E (1.882e-20 J) + H (3.812e-20 J) = 5.694e-20 J
Wrote fields to disk (Paraview) at step 7
Updating solution error estimates
It 7/100: t = 3.500000e-02 ns (elapsed time = 3.71e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.225322e-06
1 KSP residual norm ||r||_B = 9.015470e-07
2 KSP residual norm ||r||_B = 7.779833e-07
3 KSP residual norm ||r||_B = 6.805150e-07
4 KSP residual norm ||r||_B = 4.346290e-07
5 KSP residual norm ||r||_B = 2.215935e-07
6 KSP residual norm ||r||_B = 1.049748e-07
7 KSP residual norm ||r||_B = 7.544317e-08
8 KSP residual norm ||r||_B = 1.109195e-07
9 KSP residual norm ||r||_B = 1.981283e-07
10 KSP residual norm ||r||_B = 2.374671e-07
11 KSP residual norm ||r||_B = 2.505373e-07
12 KSP residual norm ||r||_B = 2.809156e-07
13 KSP residual norm ||r||_B = 1.164180e-07
14 KSP residual norm ||r||_B = 3.628750e-08
15 KSP residual norm ||r||_B = 1.339470e-08
16 KSP residual norm ||r||_B = 4.441878e-09
17 KSP residual norm ||r||_B = 1.433494e-09
18 KSP residual norm ||r||_B = 3.819624e-10
19 KSP residual norm ||r||_B = 8.692946e-11
20 KSP residual norm ||r||_B = 1.888483e-11
21 KSP residual norm ||r||_B = 4.036655e-12
22 KSP residual norm ||r||_B = 8.305156e-13
23 KSP residual norm ||r||_B = 1.698638e-13
24 KSP residual norm ||r||_B = 3.913004e-14
25 KSP residual norm ||r||_B = 8.941090e-15
26 KSP residual norm ||r||_B = 1.838401e-15
PCG solver converged in 26 iterations (avg. reduction factor: 4.679e-01)
Sol. ||E|| = 1.806086e-02, ||B|| = 3.557339e-04
Field energy E (3.962e-20 J) + H (8.038e-20 J) = 1.200e-19 J
Updating solution error estimates
It 8/100: t = 4.000000e-02 ns (elapsed time = 4.18e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.345825e-06
1 KSP residual norm ||r||_B = 9.835058e-07
2 KSP residual norm ||r||_B = 8.462749e-07
3 KSP residual norm ||r||_B = 7.386633e-07
4 KSP residual norm ||r||_B = 4.687183e-07
5 KSP residual norm ||r||_B = 2.346025e-07
6 KSP residual norm ||r||_B = 1.008556e-07
7 KSP residual norm ||r||_B = 5.356330e-08
8 KSP residual norm ||r||_B = 5.411533e-08
9 KSP residual norm ||r||_B = 8.014483e-08
10 KSP residual norm ||r||_B = 1.012969e-07
11 KSP residual norm ||r||_B = 1.289453e-07
12 KSP residual norm ||r||_B = 2.150751e-07
13 KSP residual norm ||r||_B = 1.236166e-07
14 KSP residual norm ||r||_B = 4.125369e-08
15 KSP residual norm ||r||_B = 1.541480e-08
16 KSP residual norm ||r||_B = 5.046250e-09
17 KSP residual norm ||r||_B = 1.602471e-09
18 KSP residual norm ||r||_B = 4.219651e-10
19 KSP residual norm ||r||_B = 9.567029e-11
20 KSP residual norm ||r||_B = 2.079565e-11
21 KSP residual norm ||r||_B = 4.448204e-12
22 KSP residual norm ||r||_B = 9.147068e-13
23 KSP residual norm ||r||_B = 1.867076e-13
24 KSP residual norm ||r||_B = 4.306781e-14
25 KSP residual norm ||r||_B = 9.864018e-15
26 KSP residual norm ||r||_B = 2.023912e-15
PCG solver converged in 26 iterations (avg. reduction factor: 4.702e-01)
Sol. ||E|| = 2.539303e-02, ||B|| = 5.004523e-04
Field energy E (7.832e-20 J) + H (1.591e-19 J) = 2.374e-19 J
Wrote fields to disk (Paraview) at step 9
Updating solution error estimates
It 9/100: t = 4.500000e-02 ns (elapsed time = 4.81e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.460663e-06
1 KSP residual norm ||r||_B = 1.046020e-06
2 KSP residual norm ||r||_B = 8.900011e-07
3 KSP residual norm ||r||_B = 7.839657e-07
4 KSP residual norm ||r||_B = 5.015546e-07
5 KSP residual norm ||r||_B = 2.586342e-07
6 KSP residual norm ||r||_B = 1.173626e-07
7 KSP residual norm ||r||_B = 6.856426e-08
8 KSP residual norm ||r||_B = 6.954769e-08
9 KSP residual norm ||r||_B = 8.677176e-08
10 KSP residual norm ||r||_B = 1.044452e-07
11 KSP residual norm ||r||_B = 1.556587e-07
12 KSP residual norm ||r||_B = 2.689667e-07
13 KSP residual norm ||r||_B = 1.452859e-07
14 KSP residual norm ||r||_B = 5.131049e-08
15 KSP residual norm ||r||_B = 1.899648e-08
16 KSP residual norm ||r||_B = 5.978774e-09
17 KSP residual norm ||r||_B = 1.837654e-09
18 KSP residual norm ||r||_B = 4.672760e-10
19 KSP residual norm ||r||_B = 1.044835e-10
20 KSP residual norm ||r||_B = 2.277633e-11
21 KSP residual norm ||r||_B = 4.885559e-12
22 KSP residual norm ||r||_B = 9.996746e-13
23 KSP residual norm ||r||_B = 2.023291e-13
24 KSP residual norm ||r||_B = 4.691883e-14
25 KSP residual norm ||r||_B = 1.085373e-14
26 KSP residual norm ||r||_B = 2.205347e-15
PCG solver converged in 26 iterations (avg. reduction factor: 4.682e-01)
Sol. ||E|| = 3.454088e-02, ||B|| = 6.812121e-04
Field energy E (1.449e-19 J) + H (2.948e-19 J) = 4.397e-19 J
Updating solution error estimates
It 10/100: t = 5.000000e-02 ns (elapsed time = 5.29e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.592227e-06
1 KSP residual norm ||r||_B = 1.121216e-06
2 KSP residual norm ||r||_B = 9.438648e-07
3 KSP residual norm ||r||_B = 8.355988e-07
4 KSP residual norm ||r||_B = 5.383341e-07
5 KSP residual norm ||r||_B = 2.830957e-07
6 KSP residual norm ||r||_B = 1.316202e-07
7 KSP residual norm ||r||_B = 7.684568e-08
8 KSP residual norm ||r||_B = 7.026711e-08
9 KSP residual norm ||r||_B = 7.432847e-08
10 KSP residual norm ||r||_B = 8.599583e-08
11 KSP residual norm ||r||_B = 1.367089e-07
12 KSP residual norm ||r||_B = 2.638197e-07
13 KSP residual norm ||r||_B = 1.615672e-07
14 KSP residual norm ||r||_B = 6.044726e-08
15 KSP residual norm ||r||_B = 2.207409e-08
16 KSP residual norm ||r||_B = 6.803014e-09
17 KSP residual norm ||r||_B = 2.061376e-09
18 KSP residual norm ||r||_B = 5.149766e-10
19 KSP residual norm ||r||_B = 1.143819e-10
20 KSP residual norm ||r||_B = 2.499873e-11
21 KSP residual norm ||r||_B = 5.369941e-12
22 KSP residual norm ||r||_B = 1.095118e-12
23 KSP residual norm ||r||_B = 2.204245e-13
24 KSP residual norm ||r||_B = 5.129127e-14
25 KSP residual norm ||r||_B = 1.194607e-14
26 KSP residual norm ||r||_B = 2.410584e-15
PCG solver converged in 26 iterations (avg. reduction factor: 4.704e-01)
Sol. ||E|| = 4.552326e-02, ||B|| = 8.983287e-04
Field energy E (2.517e-19 J) + H (5.126e-19 J) = 7.643e-19 J
Wrote fields to disk (Paraview) at step 11
Updating solution error estimates
It 11/100: t = 5.500000e-02 ns (elapsed time = 5.91e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.652610e-06
1 KSP residual norm ||r||_B = 1.147855e-06
2 KSP residual norm ||r||_B = 9.585142e-07
3 KSP residual norm ||r||_B = 8.497210e-07
4 KSP residual norm ||r||_B = 5.489368e-07
5 KSP residual norm ||r||_B = 2.898176e-07
6 KSP residual norm ||r||_B = 1.323088e-07
7 KSP residual norm ||r||_B = 6.803152e-08
8 KSP residual norm ||r||_B = 4.466175e-08
9 KSP residual norm ||r||_B = 2.756237e-08
10 KSP residual norm ||r||_B = 1.566645e-08
11 KSP residual norm ||r||_B = 1.314107e-08
12 KSP residual norm ||r||_B = 2.791242e-08
13 KSP residual norm ||r||_B = 6.134301e-08
14 KSP residual norm ||r||_B = 5.198819e-08
15 KSP residual norm ||r||_B = 2.307215e-08
16 KSP residual norm ||r||_B = 7.203849e-09
17 KSP residual norm ||r||_B = 2.171236e-09
18 KSP residual norm ||r||_B = 5.379722e-10
19 KSP residual norm ||r||_B = 1.191438e-10
20 KSP residual norm ||r||_B = 2.608649e-11
21 KSP residual norm ||r||_B = 5.607334e-12
22 KSP residual norm ||r||_B = 1.141792e-12
23 KSP residual norm ||r||_B = 2.290563e-13
24 KSP residual norm ||r||_B = 5.339453e-14
25 KSP residual norm ||r||_B = 1.248811e-14
26 KSP residual norm ||r||_B = 2.510269e-15
PCG solver converged in 26 iterations (avg. reduction factor: 4.692e-01)
Sol. ||E|| = 5.790174e-02, ||B|| = 1.143513e-03
Field energy E (4.072e-19 J) + H (8.306e-19 J) = 1.238e-18 J
Updating solution error estimates
It 12/100: t = 6.000000e-02 ns (elapsed time = 6.38e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.859021e-06
1 KSP residual norm ||r||_B = 1.250034e-06
2 KSP residual norm ||r||_B = 1.013383e-06
3 KSP residual norm ||r||_B = 9.058161e-07
4 KSP residual norm ||r||_B = 6.029655e-07
5 KSP residual norm ||r||_B = 3.459459e-07
6 KSP residual norm ||r||_B = 1.883639e-07
7 KSP residual norm ||r||_B = 1.332031e-07
8 KSP residual norm ||r||_B = 1.253476e-07
9 KSP residual norm ||r||_B = 1.294334e-07
10 KSP residual norm ||r||_B = 1.729632e-07
11 KSP residual norm ||r||_B = 3.014821e-07
12 KSP residual norm ||r||_B = 4.584397e-07
13 KSP residual norm ||r||_B = 2.221829e-07
14 KSP residual norm ||r||_B = 8.369688e-08
15 KSP residual norm ||r||_B = 2.869481e-08
16 KSP residual norm ||r||_B = 8.577281e-09
17 KSP residual norm ||r||_B = 2.549109e-09
18 KSP residual norm ||r||_B = 6.152503e-10
19 KSP residual norm ||r||_B = 1.350584e-10
20 KSP residual norm ||r||_B = 2.970827e-11
21 KSP residual norm ||r||_B = 6.385539e-12
22 KSP residual norm ||r||_B = 1.291905e-12
23 KSP residual norm ||r||_B = 2.574389e-13
24 KSP residual norm ||r||_B = 6.033382e-14
25 KSP residual norm ||r||_B = 1.424556e-14
26 KSP residual norm ||r||_B = 2.831240e-15
PCG solver converged in 26 iterations (avg. reduction factor: 4.694e-01)
Sol. ||E|| = 7.079685e-02, ||B|| = 1.399286e-03
Field energy E (6.088e-19 J) + H (1.244e-18 J) = 1.853e-18 J
Wrote fields to disk (Paraview) at step 13
Updating solution error estimates
It 13/100: t = 6.500000e-02 ns (elapsed time = 6.99e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.801971e-06
1 KSP residual norm ||r||_B = 1.218182e-06
2 KSP residual norm ||r||_B = 1.001496e-06
3 KSP residual norm ||r||_B = 8.948829e-07
4 KSP residual norm ||r||_B = 5.898723e-07
5 KSP residual norm ||r||_B = 3.250863e-07
6 KSP residual norm ||r||_B = 1.648329e-07
7 KSP residual norm ||r||_B = 1.055011e-07
8 KSP residual norm ||r||_B = 9.385013e-08
9 KSP residual norm ||r||_B = 9.170160e-08
10 KSP residual norm ||r||_B = 1.113828e-07
11 KSP residual norm ||r||_B = 1.887624e-07
12 KSP residual norm ||r||_B = 3.460643e-07
13 KSP residual norm ||r||_B = 2.010917e-07
14 KSP residual norm ||r||_B = 7.765734e-08
15 KSP residual norm ||r||_B = 2.730875e-08
16 KSP residual norm ||r||_B = 8.145596e-09
17 KSP residual norm ||r||_B = 2.426623e-09
18 KSP residual norm ||r||_B = 5.940677e-10
19 KSP residual norm ||r||_B = 1.310091e-10
20 KSP residual norm ||r||_B = 2.877317e-11
21 KSP residual norm ||r||_B = 6.190357e-12
22 KSP residual norm ||r||_B = 1.257427e-12
23 KSP residual norm ||r||_B = 2.508085e-13
24 KSP residual norm ||r||_B = 5.858747e-14
25 KSP residual norm ||r||_B = 1.380105e-14
26 KSP residual norm ||r||_B = 2.758320e-15
PCG solver converged in 26 iterations (avg. reduction factor: 4.721e-01)
Sol. ||E|| = 8.242342e-02, ||B|| = 1.630951e-03
Field energy E (8.252e-19 J) + H (1.690e-18 J) = 2.515e-18 J
Updating solution error estimates
It 14/100: t = 7.000000e-02 ns (elapsed time = 7.46e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 2.190527e-06
1 KSP residual norm ||r||_B = 1.406188e-06
2 KSP residual norm ||r||_B = 1.084379e-06
3 KSP residual norm ||r||_B = 9.668981e-07
4 KSP residual norm ||r||_B = 6.771416e-07
5 KSP residual norm ||r||_B = 4.438396e-07
6 KSP residual norm ||r||_B = 3.006162e-07
7 KSP residual norm ||r||_B = 2.577938e-07
8 KSP residual norm ||r||_B = 2.603279e-07
9 KSP residual norm ||r||_B = 3.066900e-07
10 KSP residual norm ||r||_B = 4.766537e-07
11 KSP residual norm ||r||_B = 7.634594e-07
12 KSP residual norm ||r||_B = 7.566039e-07
13 KSP residual norm ||r||_B = 2.982134e-07
14 KSP residual norm ||r||_B = 1.093423e-07
15 KSP residual norm ||r||_B = 3.569093e-08
16 KSP residual norm ||r||_B = 1.058700e-08
17 KSP residual norm ||r||_B = 3.121761e-09
18 KSP residual norm ||r||_B = 7.400869e-10
19 KSP residual norm ||r||_B = 1.618805e-10
20 KSP residual norm ||r||_B = 3.564570e-11
21 KSP residual norm ||r||_B = 7.613678e-12
22 KSP residual norm ||r||_B = 1.538972e-12
23 KSP residual norm ||r||_B = 3.080257e-13
24 KSP residual norm ||r||_B = 7.216300e-14
25 KSP residual norm ||r||_B = 1.700313e-14
26 KSP residual norm ||r||_B = 3.390667e-15
PCG solver converged in 26 iterations (avg. reduction factor: 4.662e-01)
Sol. ||E|| = 8.997379e-02, ||B|| = 1.782948e-03
Field energy E (9.833e-19 J) + H (2.019e-18 J) = 3.003e-18 J
Wrote fields to disk (Paraview) at step 15
Updating solution error estimates
It 15/100: t = 7.500000e-02 ns (elapsed time = 8.08e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.906501e-06
1 KSP residual norm ||r||_B = 1.270843e-06
2 KSP residual norm ||r||_B = 1.048413e-06
3 KSP residual norm ||r||_B = 9.602273e-07
4 KSP residual norm ||r||_B = 6.639714e-07
5 KSP residual norm ||r||_B = 4.047788e-07
6 KSP residual norm ||r||_B = 2.694953e-07
7 KSP residual norm ||r||_B = 2.749483e-07
8 KSP residual norm ||r||_B = 3.839502e-07
9 KSP residual norm ||r||_B = 5.019312e-07
10 KSP residual norm ||r||_B = 6.659890e-07
11 KSP residual norm ||r||_B = 8.817623e-07
12 KSP residual norm ||r||_B = 6.835906e-07
13 KSP residual norm ||r||_B = 2.373641e-07
14 KSP residual norm ||r||_B = 8.557859e-08
15 KSP residual norm ||r||_B = 2.958534e-08
16 KSP residual norm ||r||_B = 8.715434e-09
17 KSP residual norm ||r||_B = 2.588998e-09
18 KSP residual norm ||r||_B = 6.341331e-10
19 KSP residual norm ||r||_B = 1.398667e-10
20 KSP residual norm ||r||_B = 3.075576e-11
21 KSP residual norm ||r||_B = 6.623425e-12
22 KSP residual norm ||r||_B = 1.345423e-12
23 KSP residual norm ||r||_B = 2.673177e-13
24 KSP residual norm ||r||_B = 6.235442e-14
25 KSP residual norm ||r||_B = 1.474336e-14
26 KSP residual norm ||r||_B = 2.946411e-15
PCG solver converged in 26 iterations (avg. reduction factor: 4.743e-01)
Sol. ||E|| = 8.908027e-02, ||B|| = 1.769677e-03
Field energy E (9.639e-19 J) + H (1.989e-18 J) = 2.953e-18 J
Updating solution error estimates
It 16/100: t = 8.000000e-02 ns (elapsed time = 8.55e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 2.622519e-06
1 KSP residual norm ||r||_B = 1.626997e-06
2 KSP residual norm ||r||_B = 1.197443e-06
3 KSP residual norm ||r||_B = 1.056020e-06
4 KSP residual norm ||r||_B = 7.909570e-07
5 KSP residual norm ||r||_B = 6.180704e-07
6 KSP residual norm ||r||_B = 5.343503e-07
7 KSP residual norm ||r||_B = 5.295331e-07
8 KSP residual norm ||r||_B = 5.571851e-07
9 KSP residual norm ||r||_B = 7.237312e-07
10 KSP residual norm ||r||_B = 1.157614e-06
11 KSP residual norm ||r||_B = 1.480638e-06
12 KSP residual norm ||r||_B = 1.056239e-06
13 KSP residual norm ||r||_B = 3.837292e-07
14 KSP residual norm ||r||_B = 1.365966e-07
15 KSP residual norm ||r||_B = 4.357429e-08
16 KSP residual norm ||r||_B = 1.295160e-08
17 KSP residual norm ||r||_B = 3.811460e-09
18 KSP residual norm ||r||_B = 9.041795e-10
19 KSP residual norm ||r||_B = 1.985408e-10
20 KSP residual norm ||r||_B = 4.335712e-11
21 KSP residual norm ||r||_B = 9.136444e-12
22 KSP residual norm ||r||_B = 1.864296e-12
23 KSP residual norm ||r||_B = 3.810139e-13
24 KSP residual norm ||r||_B = 8.823890e-14
25 KSP residual norm ||r||_B = 2.037342e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.760e-01)
Sol. ||E|| = 7.361529e-02, ||B|| = 1.469963e-03
Field energy E (6.583e-19 J) + H (1.373e-18 J) = 2.031e-18 J
Wrote fields to disk (Paraview) at step 17
Updating solution error estimates
It 17/100: t = 8.500000e-02 ns (elapsed time = 9.14e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.981081e-06
1 KSP residual norm ||r||_B = 1.334284e-06
2 KSP residual norm ||r||_B = 1.147806e-06
3 KSP residual norm ||r||_B = 1.117827e-06
4 KSP residual norm ||r||_B = 8.470136e-07
5 KSP residual norm ||r||_B = 6.053222e-07
6 KSP residual norm ||r||_B = 5.418702e-07
7 KSP residual norm ||r||_B = 7.511668e-07
8 KSP residual norm ||r||_B = 1.205376e-06
9 KSP residual norm ||r||_B = 1.444852e-06
10 KSP residual norm ||r||_B = 1.454932e-06
11 KSP residual norm ||r||_B = 1.354442e-06
12 KSP residual norm ||r||_B = 7.641050e-07
13 KSP residual norm ||r||_B = 2.452406e-07
14 KSP residual norm ||r||_B = 8.740834e-08
15 KSP residual norm ||r||_B = 3.065353e-08
16 KSP residual norm ||r||_B = 8.966506e-09
17 KSP residual norm ||r||_B = 2.663556e-09
18 KSP residual norm ||r||_B = 6.604777e-10
19 KSP residual norm ||r||_B = 1.464333e-10
20 KSP residual norm ||r||_B = 3.218082e-11
21 KSP residual norm ||r||_B = 6.941402e-12
22 KSP residual norm ||r||_B = 1.413024e-12
23 KSP residual norm ||r||_B = 2.799537e-13
24 KSP residual norm ||r||_B = 6.499947e-14
25 KSP residual norm ||r||_B = 1.538546e-14
26 KSP residual norm ||r||_B = 3.089994e-15
PCG solver converged in 26 iterations (avg. reduction factor: 4.629e-01)
Sol. ||E|| = 3.518896e-02, ||B|| = 7.185047e-04
Field energy E (1.504e-19 J) + H (3.280e-19 J) = 4.784e-19 J
Updating solution error estimates
It 18/100: t = 9.000000e-02 ns (elapsed time = 9.61e+02 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 3.154480e-06
1 KSP residual norm ||r||_B = 1.926624e-06
2 KSP residual norm ||r||_B = 1.380010e-06
3 KSP residual norm ||r||_B = 1.209301e-06
4 KSP residual norm ||r||_B = 9.768643e-07
5 KSP residual norm ||r||_B = 9.153944e-07
6 KSP residual norm ||r||_B = 9.862816e-07
7 KSP residual norm ||r||_B = 1.058662e-06
8 KSP residual norm ||r||_B = 1.082286e-06
9 KSP residual norm ||r||_B = 1.413550e-06
10 KSP residual norm ||r||_B = 2.127520e-06
11 KSP residual norm ||r||_B = 2.166503e-06
12 KSP residual norm ||r||_B = 1.328428e-06
13 KSP residual norm ||r||_B = 4.752921e-07
14 KSP residual norm ||r||_B = 1.645276e-07
15 KSP residual norm ||r||_B = 5.218824e-08
16 KSP residual norm ||r||_B = 1.558213e-08
17 KSP residual norm ||r||_B = 4.594999e-09
18 KSP residual norm ||r||_B = 1.105423e-09
19 KSP residual norm ||r||_B = 2.446267e-10
20 KSP residual norm ||r||_B = 5.267771e-11
21 KSP residual norm ||r||_B = 1.091915e-11
22 KSP residual norm ||r||_B = 2.258121e-12
23 KSP residual norm ||r||_B = 4.730446e-13
24 KSP residual norm ||r||_B = 1.077075e-13
25 KSP residual norm ||r||_B = 2.427904e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.692e-01)
Sol. ||E|| = 3.712086e-02, ||B|| = 6.990641e-04
Field energy E (1.673e-19 J) + H (3.103e-19 J) = 4.777e-19 J
Wrote fields to disk (Paraview) at step 19
Updating solution error estimates
It 19/100: t = 9.500000e-02 ns (elapsed time = 1.02e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 2.070057e-06
1 KSP residual norm ||r||_B = 1.442683e-06
2 KSP residual norm ||r||_B = 1.337346e-06
3 KSP residual norm ||r||_B = 1.419424e-06
4 KSP residual norm ||r||_B = 1.192307e-06
5 KSP residual norm ||r||_B = 9.685902e-07
6 KSP residual norm ||r||_B = 1.027703e-06
7 KSP residual norm ||r||_B = 1.609940e-06
8 KSP residual norm ||r||_B = 2.549321e-06
9 KSP residual norm ||r||_B = 2.429906e-06
10 KSP residual norm ||r||_B = 1.790769e-06
11 KSP residual norm ||r||_B = 1.400252e-06
12 KSP residual norm ||r||_B = 7.703593e-07
13 KSP residual norm ||r||_B = 2.448409e-07
14 KSP residual norm ||r||_B = 8.579051e-08
15 KSP residual norm ||r||_B = 3.107152e-08
16 KSP residual norm ||r||_B = 9.089758e-09
17 KSP residual norm ||r||_B = 2.698986e-09
18 KSP residual norm ||r||_B = 6.833671e-10
19 KSP residual norm ||r||_B = 1.531259e-10
20 KSP residual norm ||r||_B = 3.360062e-11
21 KSP residual norm ||r||_B = 7.255663e-12
22 KSP residual norm ||r||_B = 1.483266e-12
23 KSP residual norm ||r||_B = 2.938232e-13
24 KSP residual norm ||r||_B = 6.779420e-14
25 KSP residual norm ||r||_B = 1.601703e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.648e-01)
Sol. ||E|| = 1.566086e-01, ||B|| = 3.047965e-03
Field energy E (2.979e-18 J) + H (5.901e-18 J) = 8.879e-18 J
Updating solution error estimates
It 20/100: t = 1.000000e-01 ns (elapsed time = 1.07e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 3.712494e-06
1 KSP residual norm ||r||_B = 2.258531e-06
2 KSP residual norm ||r||_B = 1.600695e-06
3 KSP residual norm ||r||_B = 1.399605e-06
4 KSP residual norm ||r||_B = 1.201917e-06
5 KSP residual norm ||r||_B = 1.291836e-06
6 KSP residual norm ||r||_B = 1.645008e-06
7 KSP residual norm ||r||_B = 1.850942e-06
8 KSP residual norm ||r||_B = 1.745809e-06
9 KSP residual norm ||r||_B = 2.124784e-06
10 KSP residual norm ||r||_B = 2.961762e-06
11 KSP residual norm ||r||_B = 2.614473e-06
12 KSP residual norm ||r||_B = 1.545131e-06
13 KSP residual norm ||r||_B = 5.615183e-07
14 KSP residual norm ||r||_B = 1.900810e-07
15 KSP residual norm ||r||_B = 6.035744e-08
16 KSP residual norm ||r||_B = 1.810050e-08
17 KSP residual norm ||r||_B = 5.360760e-09
18 KSP residual norm ||r||_B = 1.313137e-09
19 KSP residual norm ||r||_B = 2.929608e-10
20 KSP residual norm ||r||_B = 6.226923e-11
21 KSP residual norm ||r||_B = 1.272025e-11
22 KSP residual norm ||r||_B = 2.657596e-12
23 KSP residual norm ||r||_B = 5.673772e-13
24 KSP residual norm ||r||_B = 1.273728e-13
25 KSP residual norm ||r||_B = 2.820274e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.630e-01)
Sol. ||E|| = 3.393702e-01, ||B|| = 6.645061e-03
Field energy E (1.399e-17 J) + H (2.805e-17 J) = 4.204e-17 J
Wrote fields to disk (Paraview) at step 21
Updating solution error estimates
It 21/100: t = 1.050000e-01 ns (elapsed time = 1.13e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 2.225153e-06
1 KSP residual norm ||r||_B = 1.581807e-06
2 KSP residual norm ||r||_B = 1.544660e-06
3 KSP residual norm ||r||_B = 1.749931e-06
4 KSP residual norm ||r||_B = 1.578894e-06
5 KSP residual norm ||r||_B = 1.357967e-06
6 KSP residual norm ||r||_B = 1.514440e-06
7 KSP residual norm ||r||_B = 2.412357e-06
8 KSP residual norm ||r||_B = 3.621270e-06
9 KSP residual norm ||r||_B = 2.956921e-06
10 KSP residual norm ||r||_B = 1.869358e-06
11 KSP residual norm ||r||_B = 1.379005e-06
12 KSP residual norm ||r||_B = 7.925884e-07
13 KSP residual norm ||r||_B = 2.547220e-07
14 KSP residual norm ||r||_B = 8.786289e-08
15 KSP residual norm ||r||_B = 3.253796e-08
16 KSP residual norm ||r||_B = 9.559253e-09
17 KSP residual norm ||r||_B = 2.836637e-09
18 KSP residual norm ||r||_B = 7.283264e-10
19 KSP residual norm ||r||_B = 1.644742e-10
20 KSP residual norm ||r||_B = 3.607909e-11
21 KSP residual norm ||r||_B = 7.797088e-12
22 KSP residual norm ||r||_B = 1.599014e-12
23 KSP residual norm ||r||_B = 3.165833e-13
24 KSP residual norm ||r||_B = 7.271754e-14
25 KSP residual norm ||r||_B = 1.717363e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.555e-01)
Sol. ||E|| = 6.035673e-01, ||B|| = 1.184982e-02
Field energy E (4.425e-17 J) + H (8.919e-17 J) = 1.334e-16 J
Updating solution error estimates
It 22/100: t = 1.100000e-01 ns (elapsed time = 1.17e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 4.128953e-06
1 KSP residual norm ||r||_B = 2.494388e-06
2 KSP residual norm ||r||_B = 1.743180e-06
3 KSP residual norm ||r||_B = 1.497168e-06
4 KSP residual norm ||r||_B = 1.309653e-06
5 KSP residual norm ||r||_B = 1.501279e-06
6 KSP residual norm ||r||_B = 2.129392e-06
7 KSP residual norm ||r||_B = 2.525184e-06
8 KSP residual norm ||r||_B = 2.198148e-06
9 KSP residual norm ||r||_B = 2.413241e-06
10 KSP residual norm ||r||_B = 3.224167e-06
11 KSP residual norm ||r||_B = 2.736882e-06
12 KSP residual norm ||r||_B = 1.656966e-06
13 KSP residual norm ||r||_B = 6.207919e-07
14 KSP residual norm ||r||_B = 2.074252e-07
15 KSP residual norm ||r||_B = 6.600119e-08
16 KSP residual norm ||r||_B = 1.984908e-08
17 KSP residual norm ||r||_B = 5.904517e-09
18 KSP residual norm ||r||_B = 1.467880e-09
19 KSP residual norm ||r||_B = 3.295518e-10
20 KSP residual norm ||r||_B = 6.947955e-11
21 KSP residual norm ||r||_B = 1.405252e-11
22 KSP residual norm ||r||_B = 2.951557e-12
23 KSP residual norm ||r||_B = 6.371535e-13
24 KSP residual norm ||r||_B = 1.418795e-13
25 KSP residual norm ||r||_B = 3.108884e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.578e-01)
Sol. ||E|| = 9.687307e-01, ||B|| = 1.904971e-02
Field energy E (1.140e-16 J) + H (2.305e-16 J) = 3.445e-16 J
Wrote fields to disk (Paraview) at step 23
Updating solution error estimates
It 23/100: t = 1.150000e-01 ns (elapsed time = 1.23e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 2.490085e-06
1 KSP residual norm ||r||_B = 1.674278e-06
2 KSP residual norm ||r||_B = 1.557176e-06
3 KSP residual norm ||r||_B = 1.767568e-06
4 KSP residual norm ||r||_B = 1.644077e-06
5 KSP residual norm ||r||_B = 1.431192e-06
6 KSP residual norm ||r||_B = 1.538288e-06
7 KSP residual norm ||r||_B = 2.305316e-06
8 KSP residual norm ||r||_B = 3.382005e-06
9 KSP residual norm ||r||_B = 3.110966e-06
10 KSP residual norm ||r||_B = 2.347928e-06
11 KSP residual norm ||r||_B = 1.815145e-06
12 KSP residual norm ||r||_B = 9.629819e-07
13 KSP residual norm ||r||_B = 3.050576e-07
14 KSP residual norm ||r||_B = 1.072217e-07
15 KSP residual norm ||r||_B = 3.854724e-08
16 KSP residual norm ||r||_B = 1.119533e-08
17 KSP residual norm ||r||_B = 3.327112e-09
18 KSP residual norm ||r||_B = 8.396957e-10
19 KSP residual norm ||r||_B = 1.871584e-10
20 KSP residual norm ||r||_B = 4.111869e-11
21 KSP residual norm ||r||_B = 8.906409e-12
22 KSP residual norm ||r||_B = 1.821005e-12
23 KSP residual norm ||r||_B = 3.575024e-13
24 KSP residual norm ||r||_B = 8.215850e-14
PCG solver converged in 24 iterations (avg. reduction factor: 4.629e-01)
Sol. ||E|| = 1.454653e+00, ||B|| = 2.863724e-02
Field energy E (2.570e-16 J) + H (5.209e-16 J) = 7.779e-16 J
Updating solution error estimates
It 24/100: t = 1.200000e-01 ns (elapsed time = 1.28e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 4.172970e-06
1 KSP residual norm ||r||_B = 2.454401e-06
2 KSP residual norm ||r||_B = 1.643265e-06
3 KSP residual norm ||r||_B = 1.321881e-06
4 KSP residual norm ||r||_B = 1.082560e-06
5 KSP residual norm ||r||_B = 1.185668e-06
6 KSP residual norm ||r||_B = 1.730565e-06
7 KSP residual norm ||r||_B = 2.212614e-06
8 KSP residual norm ||r||_B = 1.905747e-06
9 KSP residual norm ||r||_B = 1.947492e-06
10 KSP residual norm ||r||_B = 2.657108e-06
11 KSP residual norm ||r||_B = 2.447148e-06
12 KSP residual norm ||r||_B = 1.608903e-06
13 KSP residual norm ||r||_B = 6.257789e-07
14 KSP residual norm ||r||_B = 2.090702e-07
15 KSP residual norm ||r||_B = 6.665871e-08
16 KSP residual norm ||r||_B = 2.003493e-08
17 KSP residual norm ||r||_B = 5.972057e-09
18 KSP residual norm ||r||_B = 1.493674e-09
19 KSP residual norm ||r||_B = 3.360734e-10
20 KSP residual norm ||r||_B = 7.075718e-11
21 KSP residual norm ||r||_B = 1.426612e-11
22 KSP residual norm ||r||_B = 3.000226e-12
23 KSP residual norm ||r||_B = 6.489805e-13
24 KSP residual norm ||r||_B = 1.442819e-13
25 KSP residual norm ||r||_B = 3.153543e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.533e-01)
Sol. ||E|| = 2.079668e+00, ||B|| = 4.097738e-02
Field energy E (5.253e-16 J) + H (1.067e-15 J) = 1.592e-15 J
Wrote fields to disk (Paraview) at step 25
Updating solution error estimates
It 25/100: t = 1.250000e-01 ns (elapsed time = 1.34e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 3.007788e-06
1 KSP residual norm ||r||_B = 1.772341e-06
2 KSP residual norm ||r||_B = 1.339347e-06
3 KSP residual norm ||r||_B = 1.296935e-06
4 KSP residual norm ||r||_B = 1.116289e-06
5 KSP residual norm ||r||_B = 9.290565e-07
6 KSP residual norm ||r||_B = 8.692294e-07
7 KSP residual norm ||r||_B = 1.032091e-06
8 KSP residual norm ||r||_B = 1.324325e-06
9 KSP residual norm ||r||_B = 1.632026e-06
10 KSP residual norm ||r||_B = 2.093530e-06
11 KSP residual norm ||r||_B = 2.168540e-06
12 KSP residual norm ||r||_B = 1.267000e-06
13 KSP residual norm ||r||_B = 4.240408e-07
14 KSP residual norm ||r||_B = 1.523740e-07
15 KSP residual norm ||r||_B = 5.082810e-08
16 KSP residual norm ||r||_B = 1.473664e-08
17 KSP residual norm ||r||_B = 4.378134e-09
18 KSP residual norm ||r||_B = 1.061189e-09
19 KSP residual norm ||r||_B = 2.319331e-10
20 KSP residual norm ||r||_B = 5.108414e-11
21 KSP residual norm ||r||_B = 1.100216e-11
22 KSP residual norm ||r||_B = 2.239031e-12
23 KSP residual norm ||r||_B = 4.401982e-13
24 KSP residual norm ||r||_B = 1.016841e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.628e-01)
Sol. ||E|| = 2.858673e+00, ||B|| = 5.636724e-02
Field energy E (9.926e-16 J) + H (2.018e-15 J) = 3.011e-15 J
Updating solution error estimates
It 26/100: t = 1.300000e-01 ns (elapsed time = 1.38e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 3.668257e-06
1 KSP residual norm ||r||_B = 2.032042e-06
2 KSP residual norm ||r||_B = 1.245359e-06
3 KSP residual norm ||r||_B = 8.647465e-07
4 KSP residual norm ||r||_B = 5.441322e-07
5 KSP residual norm ||r||_B = 3.955209e-07
6 KSP residual norm ||r||_B = 4.048237e-07
7 KSP residual norm ||r||_B = 4.584769e-07
8 KSP residual norm ||r||_B = 3.863861e-07
9 KSP residual norm ||r||_B = 3.656353e-07
10 KSP residual norm ||r||_B = 5.661185e-07
11 KSP residual norm ||r||_B = 8.424669e-07
12 KSP residual norm ||r||_B = 1.030396e-06
13 KSP residual norm ||r||_B = 5.321741e-07
14 KSP residual norm ||r||_B = 1.881796e-07
15 KSP residual norm ||r||_B = 6.046211e-08
16 KSP residual norm ||r||_B = 1.802259e-08
17 KSP residual norm ||r||_B = 5.359830e-09
18 KSP residual norm ||r||_B = 1.328593e-09
19 KSP residual norm ||r||_B = 2.970838e-10
20 KSP residual norm ||r||_B = 6.313347e-11
21 KSP residual norm ||r||_B = 1.284608e-11
22 KSP residual norm ||r||_B = 2.692242e-12
23 KSP residual norm ||r||_B = 5.746631e-13
24 KSP residual norm ||r||_B = 1.287293e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.629e-01)
Sol. ||E|| = 3.800693e+00, ||B|| = 7.498892e-02
Field energy E (1.755e-15 J) + H (3.572e-15 J) = 5.327e-15 J
Wrote fields to disk (Paraview) at step 27
Updating solution error estimates
It 27/100: t = 1.350000e-01 ns (elapsed time = 1.44e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 4.097400e-06
1 KSP residual norm ||r||_B = 2.276660e-06
2 KSP residual norm ||r||_B = 1.449082e-06
3 KSP residual norm ||r||_B = 1.107825e-06
4 KSP residual norm ||r||_B = 7.654736e-07
5 KSP residual norm ||r||_B = 5.556441e-07
6 KSP residual norm ||r||_B = 4.466334e-07
7 KSP residual norm ||r||_B = 3.617419e-07
8 KSP residual norm ||r||_B = 2.567679e-07
9 KSP residual norm ||r||_B = 2.154207e-07
10 KSP residual norm ||r||_B = 3.009564e-07
11 KSP residual norm ||r||_B = 5.092190e-07
12 KSP residual norm ||r||_B = 8.720903e-07
13 KSP residual norm ||r||_B = 5.605615e-07
14 KSP residual norm ||r||_B = 2.153157e-07
15 KSP residual norm ||r||_B = 6.986940e-08
16 KSP residual norm ||r||_B = 2.068655e-08
17 KSP residual norm ||r||_B = 6.118765e-09
18 KSP residual norm ||r||_B = 1.474614e-09
19 KSP residual norm ||r||_B = 3.243995e-10
20 KSP residual norm ||r||_B = 7.030107e-11
21 KSP residual norm ||r||_B = 1.470245e-11
22 KSP residual norm ||r||_B = 3.037375e-12
23 KSP residual norm ||r||_B = 6.255459e-13
24 KSP residual norm ||r||_B = 1.427965e-13
25 KSP residual norm ||r||_B = 3.266962e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.559e-01)
Sol. ||E|| = 4.906400e+00, ||B|| = 9.685944e-02
Field energy E (2.924e-15 J) + H (5.959e-15 J) = 8.883e-15 J
Updating solution error estimates
It 28/100: t = 1.400000e-01 ns (elapsed time = 1.49e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 2.779108e-06
1 KSP residual norm ||r||_B = 1.561358e-06
2 KSP residual norm ||r||_B = 1.158915e-06
3 KSP residual norm ||r||_B = 1.186442e-06
4 KSP residual norm ||r||_B = 1.263240e-06
5 KSP residual norm ||r||_B = 1.450463e-06
6 KSP residual norm ||r||_B = 1.821411e-06
7 KSP residual norm ||r||_B = 2.130719e-06
8 KSP residual norm ||r||_B = 2.071216e-06
9 KSP residual norm ||r||_B = 2.097010e-06
10 KSP residual norm ||r||_B = 2.382232e-06
11 KSP residual norm ||r||_B = 2.079427e-06
12 KSP residual norm ||r||_B = 1.197219e-06
13 KSP residual norm ||r||_B = 4.170688e-07
14 KSP residual norm ||r||_B = 1.470541e-07
15 KSP residual norm ||r||_B = 4.814647e-08
16 KSP residual norm ||r||_B = 1.388520e-08
17 KSP residual norm ||r||_B = 4.132450e-09
18 KSP residual norm ||r||_B = 1.009905e-09
19 KSP residual norm ||r||_B = 2.218670e-10
20 KSP residual norm ||r||_B = 4.847334e-11
21 KSP residual norm ||r||_B = 1.027582e-11
22 KSP residual norm ||r||_B = 2.112314e-12
23 KSP residual norm ||r||_B = 4.237828e-13
24 KSP residual norm ||r||_B = 9.655384e-14
PCG solver converged in 24 iterations (avg. reduction factor: 4.594e-01)
Sol. ||E|| = 6.165606e+00, ||B|| = 1.217817e-01
Field energy E (4.618e-15 J) + H (9.420e-15 J) = 1.404e-14 J
Wrote fields to disk (Paraview) at step 29
Updating solution error estimates
It 29/100: t = 1.450000e-01 ns (elapsed time = 1.55e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 5.910983e-06
1 KSP residual norm ||r||_B = 3.508290e-06
2 KSP residual norm ||r||_B = 2.435163e-06
3 KSP residual norm ||r||_B = 2.107683e-06
4 KSP residual norm ||r||_B = 1.907184e-06
5 KSP residual norm ||r||_B = 2.304601e-06
6 KSP residual norm ||r||_B = 3.491333e-06
7 KSP residual norm ||r||_B = 4.421985e-06
8 KSP residual norm ||r||_B = 3.664916e-06
9 KSP residual norm ||r||_B = 3.433580e-06
10 KSP residual norm ||r||_B = 4.199182e-06
11 KSP residual norm ||r||_B = 3.669164e-06
12 KSP residual norm ||r||_B = 2.335257e-06
13 KSP residual norm ||r||_B = 8.920765e-07
14 KSP residual norm ||r||_B = 2.981546e-07
15 KSP residual norm ||r||_B = 9.521662e-08
16 KSP residual norm ||r||_B = 2.866119e-08
17 KSP residual norm ||r||_B = 8.531157e-09
18 KSP residual norm ||r||_B = 2.123948e-09
19 KSP residual norm ||r||_B = 4.764796e-10
20 KSP residual norm ||r||_B = 1.004636e-10
21 KSP residual norm ||r||_B = 2.034625e-11
22 KSP residual norm ||r||_B = 4.274891e-12
23 KSP residual norm ||r||_B = 9.194968e-13
24 KSP residual norm ||r||_B = 2.046509e-13
25 KSP residual norm ||r||_B = 4.494187e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.681e-01)
Sol. ||E|| = 7.555200e+00, ||B|| = 1.493026e-01
Field energy E (6.934e-15 J) + H (1.416e-14 J) = 2.109e-14 J
Updating solution error estimates
It 30/100: t = 1.500000e-01 ns (elapsed time = 1.60e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 2.581571e-06
1 KSP residual norm ||r||_B = 2.395551e-06
2 KSP residual norm ||r||_B = 3.628478e-06
3 KSP residual norm ||r||_B = 5.776273e-06
4 KSP residual norm ||r||_B = 6.868491e-06
5 KSP residual norm ||r||_B = 5.785782e-06
6 KSP residual norm ||r||_B = 5.273912e-06
7 KSP residual norm ||r||_B = 6.153211e-06
8 KSP residual norm ||r||_B = 6.170494e-06
9 KSP residual norm ||r||_B = 3.169788e-06
10 KSP residual norm ||r||_B = 1.314722e-06
11 KSP residual norm ||r||_B = 7.827175e-07
12 KSP residual norm ||r||_B = 5.833239e-07
13 KSP residual norm ||r||_B = 2.082360e-07
14 KSP residual norm ||r||_B = 4.886820e-08
15 KSP residual norm ||r||_B = 1.581452e-08
16 KSP residual norm ||r||_B = 5.805280e-09
17 KSP residual norm ||r||_B = 1.920298e-09
18 KSP residual norm ||r||_B = 5.821724e-10
19 KSP residual norm ||r||_B = 1.560569e-10
20 KSP residual norm ||r||_B = 3.617270e-11
21 KSP residual norm ||r||_B = 7.887924e-12
22 KSP residual norm ||r||_B = 1.655712e-12
23 KSP residual norm ||r||_B = 3.324934e-13
24 KSP residual norm ||r||_B = 7.447176e-14
25 KSP residual norm ||r||_B = 1.730579e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.528e-01)
Sol. ||E|| = 9.037691e+00, ||B|| = 1.786846e-01
Field energy E (9.922e-15 J) + H (2.028e-14 J) = 3.020e-14 J
Wrote fields to disk (Paraview) at step 31
Updating solution error estimates
It 31/100: t = 1.550000e-01 ns (elapsed time = 1.66e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 8.094582e-06
1 KSP residual norm ||r||_B = 5.184286e-06
2 KSP residual norm ||r||_B = 3.992908e-06
3 KSP residual norm ||r||_B = 3.880615e-06
4 KSP residual norm ||r||_B = 4.094100e-06
5 KSP residual norm ||r||_B = 5.850131e-06
6 KSP residual norm ||r||_B = 1.005949e-05
7 KSP residual norm ||r||_B = 1.189025e-05
8 KSP residual norm ||r||_B = 6.937150e-06
9 KSP residual norm ||r||_B = 4.098873e-06
10 KSP residual norm ||r||_B = 3.876688e-06
11 KSP residual norm ||r||_B = 3.301243e-06
12 KSP residual norm ||r||_B = 2.487418e-06
13 KSP residual norm ||r||_B = 1.135449e-06
14 KSP residual norm ||r||_B = 3.758784e-07
15 KSP residual norm ||r||_B = 1.200943e-07
16 KSP residual norm ||r||_B = 3.655149e-08
17 KSP residual norm ||r||_B = 1.101344e-08
18 KSP residual norm ||r||_B = 2.841211e-09
19 KSP residual norm ||r||_B = 6.488956e-10
20 KSP residual norm ||r||_B = 1.344174e-10
21 KSP residual norm ||r||_B = 2.663056e-11
22 KSP residual norm ||r||_B = 5.629511e-12
23 KSP residual norm ||r||_B = 1.241969e-12
24 KSP residual norm ||r||_B = 2.724959e-13
25 KSP residual norm ||r||_B = 5.859170e-14
26 KSP residual norm ||r||_B = 1.291479e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.723e-01)
Sol. ||E|| = 1.056079e+01, ||B|| = 2.088961e-01
Field energy E (1.355e-14 J) + H (2.772e-14 J) = 4.127e-14 J
Updating solution error estimates
It 32/100: t = 1.600000e-01 ns (elapsed time = 1.70e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 3.721863e-06
1 KSP residual norm ||r||_B = 4.269705e-06
2 KSP residual norm ||r||_B = 6.297089e-06
3 KSP residual norm ||r||_B = 8.315130e-06
4 KSP residual norm ||r||_B = 1.049541e-05
5 KSP residual norm ||r||_B = 1.082031e-05
6 KSP residual norm ||r||_B = 1.117580e-05
7 KSP residual norm ||r||_B = 8.068167e-06
8 KSP residual norm ||r||_B = 6.708477e-06
9 KSP residual norm ||r||_B = 5.763399e-06
10 KSP residual norm ||r||_B = 4.583827e-06
11 KSP residual norm ||r||_B = 2.775946e-06
12 KSP residual norm ||r||_B = 1.052611e-06
13 KSP residual norm ||r||_B = 3.774477e-07
14 KSP residual norm ||r||_B = 1.244665e-07
15 KSP residual norm ||r||_B = 4.285401e-08
16 KSP residual norm ||r||_B = 1.159853e-08
17 KSP residual norm ||r||_B = 2.765095e-09
18 KSP residual norm ||r||_B = 6.738434e-10
19 KSP residual norm ||r||_B = 1.802458e-10
20 KSP residual norm ||r||_B = 4.281894e-11
21 KSP residual norm ||r||_B = 8.593072e-12
22 KSP residual norm ||r||_B = 1.621557e-12
23 KSP residual norm ||r||_B = 3.247793e-13
24 KSP residual norm ||r||_B = 7.227571e-14
25 KSP residual norm ||r||_B = 1.702447e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.645e-01)
Sol. ||E|| = 1.205822e+01, ||B|| = 2.386278e-01
Field energy E (1.766e-14 J) + H (3.617e-14 J) = 5.383e-14 J
Wrote fields to disk (Paraview) at step 33
Updating solution error estimates
It 33/100: t = 1.650000e-01 ns (elapsed time = 1.77e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.887337e-06
1 KSP residual norm ||r||_B = 6.616980e-06
2 KSP residual norm ||r||_B = 5.366985e-06
3 KSP residual norm ||r||_B = 5.435196e-06
4 KSP residual norm ||r||_B = 6.027524e-06
5 KSP residual norm ||r||_B = 8.995357e-06
6 KSP residual norm ||r||_B = 1.580079e-05
7 KSP residual norm ||r||_B = 1.704952e-05
8 KSP residual norm ||r||_B = 8.100092e-06
9 KSP residual norm ||r||_B = 3.127053e-06
10 KSP residual norm ||r||_B = 1.769129e-06
11 KSP residual norm ||r||_B = 1.088065e-06
12 KSP residual norm ||r||_B = 9.484151e-07
13 KSP residual norm ||r||_B = 9.156957e-07
14 KSP residual norm ||r||_B = 4.070149e-07
15 KSP residual norm ||r||_B = 1.357226e-07
16 KSP residual norm ||r||_B = 4.176340e-08
17 KSP residual norm ||r||_B = 1.274139e-08
18 KSP residual norm ||r||_B = 3.382569e-09
19 KSP residual norm ||r||_B = 7.847763e-10
20 KSP residual norm ||r||_B = 1.613052e-10
21 KSP residual norm ||r||_B = 3.152558e-11
22 KSP residual norm ||r||_B = 6.661336e-12
23 KSP residual norm ||r||_B = 1.490519e-12
24 KSP residual norm ||r||_B = 3.252813e-13
25 KSP residual norm ||r||_B = 6.916950e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.666e-01)
Sol. ||E|| = 1.345199e+01, ||B|| = 2.663364e-01
Field energy E (2.198e-14 J) + H (4.506e-14 J) = 6.704e-14 J
Updating solution error estimates
It 34/100: t = 1.700000e-01 ns (elapsed time = 1.81e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 4.759530e-06
1 KSP residual norm ||r||_B = 5.314589e-06
2 KSP residual norm ||r||_B = 7.155738e-06
3 KSP residual norm ||r||_B = 9.175474e-06
4 KSP residual norm ||r||_B = 1.194806e-05
5 KSP residual norm ||r||_B = 1.318273e-05
6 KSP residual norm ||r||_B = 1.445295e-05
7 KSP residual norm ||r||_B = 9.893342e-06
8 KSP residual norm ||r||_B = 8.399870e-06
9 KSP residual norm ||r||_B = 7.720270e-06
10 KSP residual norm ||r||_B = 6.083491e-06
11 KSP residual norm ||r||_B = 3.555270e-06
12 KSP residual norm ||r||_B = 1.422327e-06
13 KSP residual norm ||r||_B = 5.275135e-07
14 KSP residual norm ||r||_B = 1.621767e-07
15 KSP residual norm ||r||_B = 5.428488e-08
16 KSP residual norm ||r||_B = 1.572942e-08
17 KSP residual norm ||r||_B = 3.833604e-09
18 KSP residual norm ||r||_B = 8.976509e-10
19 KSP residual norm ||r||_B = 2.318486e-10
20 KSP residual norm ||r||_B = 5.466728e-11
21 KSP residual norm ||r||_B = 1.078798e-11
22 KSP residual norm ||r||_B = 1.958083e-12
23 KSP residual norm ||r||_B = 3.808424e-13
24 KSP residual norm ||r||_B = 8.268626e-14
PCG solver converged in 24 iterations (avg. reduction factor: 4.516e-01)
Sol. ||E|| = 1.465613e+01, ||B|| = 2.903187e-01
Field energy E (2.609e-14 J) + H (5.354e-14 J) = 7.963e-14 J
Wrote fields to disk (Paraview) at step 35
Updating solution error estimates
It 35/100: t = 1.750000e-01 ns (elapsed time = 1.87e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.041212e-05
1 KSP residual norm ||r||_B = 7.030401e-06
2 KSP residual norm ||r||_B = 5.752212e-06
3 KSP residual norm ||r||_B = 5.798499e-06
4 KSP residual norm ||r||_B = 6.448937e-06
5 KSP residual norm ||r||_B = 9.652109e-06
6 KSP residual norm ||r||_B = 1.709247e-05
7 KSP residual norm ||r||_B = 1.806081e-05
8 KSP residual norm ||r||_B = 8.296853e-06
9 KSP residual norm ||r||_B = 3.138814e-06
10 KSP residual norm ||r||_B = 1.887703e-06
11 KSP residual norm ||r||_B = 1.323402e-06
12 KSP residual norm ||r||_B = 1.171028e-06
13 KSP residual norm ||r||_B = 1.024151e-06
14 KSP residual norm ||r||_B = 4.202012e-07
15 KSP residual norm ||r||_B = 1.372827e-07
16 KSP residual norm ||r||_B = 4.221711e-08
17 KSP residual norm ||r||_B = 1.297962e-08
18 KSP residual norm ||r||_B = 3.510946e-09
19 KSP residual norm ||r||_B = 8.241339e-10
20 KSP residual norm ||r||_B = 1.690661e-10
21 KSP residual norm ||r||_B = 3.279304e-11
22 KSP residual norm ||r||_B = 6.912240e-12
23 KSP residual norm ||r||_B = 1.556649e-12
24 KSP residual norm ||r||_B = 3.394492e-13
25 KSP residual norm ||r||_B = 7.179231e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.545e-01)
Sol. ||E|| = 1.558180e+01, ||B|| = 3.088125e-01
Field energy E (2.949e-14 J) + H (6.058e-14 J) = 9.007e-14 J
Updating solution error estimates
It 36/100: t = 1.800000e-01 ns (elapsed time = 1.92e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 4.738248e-06
1 KSP residual norm ||r||_B = 4.844810e-06
2 KSP residual norm ||r||_B = 6.405660e-06
3 KSP residual norm ||r||_B = 8.275571e-06
4 KSP residual norm ||r||_B = 1.046462e-05
5 KSP residual norm ||r||_B = 1.088670e-05
6 KSP residual norm ||r||_B = 1.231086e-05
7 KSP residual norm ||r||_B = 1.046860e-05
8 KSP residual norm ||r||_B = 9.425911e-06
9 KSP residual norm ||r||_B = 8.014145e-06
10 KSP residual norm ||r||_B = 6.548940e-06
11 KSP residual norm ||r||_B = 4.028175e-06
12 KSP residual norm ||r||_B = 1.478523e-06
13 KSP residual norm ||r||_B = 5.115396e-07
14 KSP residual norm ||r||_B = 1.765086e-07
15 KSP residual norm ||r||_B = 6.140050e-08
16 KSP residual norm ||r||_B = 1.544729e-08
17 KSP residual norm ||r||_B = 3.410592e-09
18 KSP residual norm ||r||_B = 7.635432e-10
19 KSP residual norm ||r||_B = 2.038598e-10
20 KSP residual norm ||r||_B = 5.369513e-11
21 KSP residual norm ||r||_B = 1.173978e-11
22 KSP residual norm ||r||_B = 2.320628e-12
23 KSP residual norm ||r||_B = 4.790686e-13
24 KSP residual norm ||r||_B = 1.081911e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.457e-01)
Sol. ||E|| = 1.614351e+01, ||B|| = 3.201191e-01
Field energy E (3.166e-14 J) + H (6.509e-14 J) = 9.675e-14 J
Wrote fields to disk (Paraview) at step 37
Updating solution error estimates
It 37/100: t = 1.850000e-01 ns (elapsed time = 1.98e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.068927e-06
1 KSP residual norm ||r||_B = 5.899356e-06
2 KSP residual norm ||r||_B = 4.625315e-06
3 KSP residual norm ||r||_B = 4.395998e-06
4 KSP residual norm ||r||_B = 4.643760e-06
5 KSP residual norm ||r||_B = 6.716775e-06
6 KSP residual norm ||r||_B = 1.211790e-05
7 KSP residual norm ||r||_B = 1.409647e-05
8 KSP residual norm ||r||_B = 7.267712e-06
9 KSP residual norm ||r||_B = 3.661542e-06
10 KSP residual norm ||r||_B = 3.430757e-06
11 KSP residual norm ||r||_B = 2.960906e-06
12 KSP residual norm ||r||_B = 2.146645e-06
13 KSP residual norm ||r||_B = 1.142323e-06
14 KSP residual norm ||r||_B = 3.815985e-07
15 KSP residual norm ||r||_B = 1.209532e-07
16 KSP residual norm ||r||_B = 3.704608e-08
17 KSP residual norm ||r||_B = 1.139915e-08
18 KSP residual norm ||r||_B = 3.091397e-09
19 KSP residual norm ||r||_B = 7.273042e-10
20 KSP residual norm ||r||_B = 1.494995e-10
21 KSP residual norm ||r||_B = 2.896714e-11
22 KSP residual norm ||r||_B = 6.096547e-12
23 KSP residual norm ||r||_B = 1.370213e-12
24 KSP residual norm ||r||_B = 2.993614e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.599e-01)
Sol. ||E|| = 1.626591e+01, ||B|| = 3.227383e-01
Field energy E (3.214e-14 J) + H (6.616e-14 J) = 9.830e-14 J
Updating solution error estimates
It 38/100: t = 1.900000e-01 ns (elapsed time = 2.02e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 4.310555e-06
1 KSP residual norm ||r||_B = 2.979414e-06
2 KSP residual norm ||r||_B = 3.185659e-06
3 KSP residual norm ||r||_B = 4.378524e-06
4 KSP residual norm ||r||_B = 5.367988e-06
5 KSP residual norm ||r||_B = 4.950396e-06
6 KSP residual norm ||r||_B = 4.857883e-06
7 KSP residual norm ||r||_B = 6.762765e-06
8 KSP residual norm ||r||_B = 9.427331e-06
9 KSP residual norm ||r||_B = 5.795660e-06
10 KSP residual norm ||r||_B = 2.248639e-06
11 KSP residual norm ||r||_B = 1.113647e-06
12 KSP residual norm ||r||_B = 8.865306e-07
13 KSP residual norm ||r||_B = 3.875217e-07
14 KSP residual norm ||r||_B = 9.469058e-08
15 KSP residual norm ||r||_B = 2.792556e-08
16 KSP residual norm ||r||_B = 8.665806e-09
17 KSP residual norm ||r||_B = 2.993456e-09
18 KSP residual norm ||r||_B = 1.085355e-09
19 KSP residual norm ||r||_B = 3.072978e-10
20 KSP residual norm ||r||_B = 7.047460e-11
21 KSP residual norm ||r||_B = 1.525222e-11
22 KSP residual norm ||r||_B = 3.186748e-12
23 KSP residual norm ||r||_B = 6.371363e-13
24 KSP residual norm ||r||_B = 1.430451e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.459e-01)
Sol. ||E|| = 1.589066e+01, ||B|| = 3.155039e-01
Field energy E (3.067e-14 J) + H (6.323e-14 J) = 9.390e-14 J
Wrote fields to disk (Paraview) at step 39
Updating solution error estimates
It 39/100: t = 1.950000e-01 ns (elapsed time = 2.08e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 5.997301e-06
1 KSP residual norm ||r||_B = 3.397447e-06
2 KSP residual norm ||r||_B = 2.239469e-06
3 KSP residual norm ||r||_B = 1.663785e-06
4 KSP residual norm ||r||_B = 1.272615e-06
5 KSP residual norm ||r||_B = 1.358992e-06
6 KSP residual norm ||r||_B = 2.257682e-06
7 KSP residual norm ||r||_B = 3.708166e-06
8 KSP residual norm ||r||_B = 3.135538e-06
9 KSP residual norm ||r||_B = 2.257141e-06
10 KSP residual norm ||r||_B = 2.615070e-06
11 KSP residual norm ||r||_B = 2.432071e-06
12 KSP residual norm ||r||_B = 1.794626e-06
13 KSP residual norm ||r||_B = 8.457954e-07
14 KSP residual norm ||r||_B = 2.781332e-07
15 KSP residual norm ||r||_B = 8.916148e-08
16 KSP residual norm ||r||_B = 2.710063e-08
17 KSP residual norm ||r||_B = 8.232607e-09
18 KSP residual norm ||r||_B = 2.164578e-09
19 KSP residual norm ||r||_B = 4.994289e-10
20 KSP residual norm ||r||_B = 1.038687e-10
21 KSP residual norm ||r||_B = 2.043685e-11
22 KSP residual norm ||r||_B = 4.307171e-12
23 KSP residual norm ||r||_B = 9.471834e-13
24 KSP residual norm ||r||_B = 2.085254e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.505e-01)
Sol. ||E|| = 1.498253e+01, ||B|| = 2.977073e-01
Field energy E (2.727e-14 J) + H (5.630e-14 J) = 8.357e-14 J
Updating solution error estimates
It 40/100: t = 2.000000e-01 ns (elapsed time = 2.13e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 6.210022e-06
1 KSP residual norm ||r||_B = 3.175666e-06
2 KSP residual norm ||r||_B = 1.856463e-06
3 KSP residual norm ||r||_B = 1.349888e-06
4 KSP residual norm ||r||_B = 9.578383e-07
5 KSP residual norm ||r||_B = 7.314016e-07
6 KSP residual norm ||r||_B = 6.296777e-07
7 KSP residual norm ||r||_B = 6.039891e-07
8 KSP residual norm ||r||_B = 5.483443e-07
9 KSP residual norm ||r||_B = 4.998174e-07
10 KSP residual norm ||r||_B = 6.776331e-07
11 KSP residual norm ||r||_B = 1.100882e-06
12 KSP residual norm ||r||_B = 1.629992e-06
13 KSP residual norm ||r||_B = 8.812036e-07
14 KSP residual norm ||r||_B = 3.267692e-07
15 KSP residual norm ||r||_B = 1.080126e-07
16 KSP residual norm ||r||_B = 3.208170e-08
17 KSP residual norm ||r||_B = 9.563254e-09
18 KSP residual norm ||r||_B = 2.310868e-09
19 KSP residual norm ||r||_B = 5.045364e-10
20 KSP residual norm ||r||_B = 1.097130e-10
21 KSP residual norm ||r||_B = 2.323094e-11
22 KSP residual norm ||r||_B = 4.799124e-12
23 KSP residual norm ||r||_B = 9.671143e-13
24 KSP residual norm ||r||_B = 2.200371e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.534e-01)
Sol. ||E|| = 1.353436e+01, ||B|| = 2.691937e-01
Field energy E (2.225e-14 J) + H (4.603e-14 J) = 6.828e-14 J
Wrote fields to disk (Paraview) at step 41
Updating solution error estimates
It 41/100: t = 2.050000e-01 ns (elapsed time = 2.19e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 3.173132e-06
1 KSP residual norm ||r||_B = 2.042747e-06
2 KSP residual norm ||r||_B = 2.457153e-06
3 KSP residual norm ||r||_B = 4.184471e-06
4 KSP residual norm ||r||_B = 6.703950e-06
5 KSP residual norm ||r||_B = 7.542140e-06
6 KSP residual norm ||r||_B = 5.900188e-06
7 KSP residual norm ||r||_B = 4.139652e-06
8 KSP residual norm ||r||_B = 3.013065e-06
9 KSP residual norm ||r||_B = 1.826087e-06
10 KSP residual norm ||r||_B = 1.223409e-06
11 KSP residual norm ||r||_B = 1.028815e-06
12 KSP residual norm ||r||_B = 9.067554e-07
13 KSP residual norm ||r||_B = 3.872995e-07
14 KSP residual norm ||r||_B = 1.349205e-07
15 KSP residual norm ||r||_B = 4.966274e-08
16 KSP residual norm ||r||_B = 1.437767e-08
17 KSP residual norm ||r||_B = 4.322457e-09
18 KSP residual norm ||r||_B = 1.119367e-09
19 KSP residual norm ||r||_B = 2.465284e-10
20 KSP residual norm ||r||_B = 5.356225e-11
21 KSP residual norm ||r||_B = 1.170302e-11
22 KSP residual norm ||r||_B = 2.453319e-12
23 KSP residual norm ||r||_B = 4.685249e-13
24 KSP residual norm ||r||_B = 1.017524e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.388e-01)
Sol. ||E|| = 1.156989e+01, ||B|| = 2.304214e-01
Field energy E (1.626e-14 J) + H (3.373e-14 J) = 4.999e-14 J
Updating solution error estimates
It 42/100: t = 2.100000e-01 ns (elapsed time = 2.23e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.010113e-05
1 KSP residual norm ||r||_B = 6.157453e-06
2 KSP residual norm ||r||_B = 4.665691e-06
3 KSP residual norm ||r||_B = 4.600371e-06
4 KSP residual norm ||r||_B = 4.901035e-06
5 KSP residual norm ||r||_B = 6.940281e-06
6 KSP residual norm ||r||_B = 1.170365e-05
7 KSP residual norm ||r||_B = 1.457668e-05
8 KSP residual norm ||r||_B = 8.976251e-06
9 KSP residual norm ||r||_B = 4.631177e-06
10 KSP residual norm ||r||_B = 3.489847e-06
11 KSP residual norm ||r||_B = 2.943032e-06
12 KSP residual norm ||r||_B = 2.715969e-06
13 KSP residual norm ||r||_B = 1.416477e-06
14 KSP residual norm ||r||_B = 4.895035e-07
15 KSP residual norm ||r||_B = 1.580779e-07
16 KSP residual norm ||r||_B = 4.799215e-08
17 KSP residual norm ||r||_B = 1.438561e-08
18 KSP residual norm ||r||_B = 3.645966e-09
19 KSP residual norm ||r||_B = 8.241016e-10
20 KSP residual norm ||r||_B = 1.722783e-10
21 KSP residual norm ||r||_B = 3.459439e-11
22 KSP residual norm ||r||_B = 7.297537e-12
23 KSP residual norm ||r||_B = 1.581341e-12
24 KSP residual norm ||r||_B = 3.492303e-13
25 KSP residual norm ||r||_B = 7.612961e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.526e-01)
Sol. ||E|| = 9.144331e+00, ||B|| = 1.824729e-01
Field energy E (1.016e-14 J) + H (2.115e-14 J) = 3.131e-14 J
Wrote fields to disk (Paraview) at step 43
Updating solution error estimates
It 43/100: t = 2.150000e-01 ns (elapsed time = 2.29e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 5.045291e-06
1 KSP residual norm ||r||_B = 5.707437e-06
2 KSP residual norm ||r||_B = 8.097662e-06
3 KSP residual norm ||r||_B = 1.088174e-05
4 KSP residual norm ||r||_B = 1.529035e-05
5 KSP residual norm ||r||_B = 1.739838e-05
6 KSP residual norm ||r||_B = 1.728970e-05
7 KSP residual norm ||r||_B = 8.642821e-06
8 KSP residual norm ||r||_B = 4.425341e-06
9 KSP residual norm ||r||_B = 2.919391e-06
10 KSP residual norm ||r||_B = 2.313856e-06
11 KSP residual norm ||r||_B = 2.253589e-06
12 KSP residual norm ||r||_B = 1.292885e-06
13 KSP residual norm ||r||_B = 5.355792e-07
14 KSP residual norm ||r||_B = 1.647923e-07
15 KSP residual norm ||r||_B = 5.463677e-08
16 KSP residual norm ||r||_B = 1.609807e-08
17 KSP residual norm ||r||_B = 3.960992e-09
18 KSP residual norm ||r||_B = 9.170182e-10
19 KSP residual norm ||r||_B = 2.332696e-10
20 KSP residual norm ||r||_B = 5.606073e-11
21 KSP residual norm ||r||_B = 1.130381e-11
22 KSP residual norm ||r||_B = 2.079160e-12
23 KSP residual norm ||r||_B = 3.968593e-13
24 KSP residual norm ||r||_B = 8.407945e-14
PCG solver converged in 24 iterations (avg. reduction factor: 4.422e-01)
Sol. ||E|| = 6.342347e+00, ||B|| = 1.270158e-01
Field energy E (4.886e-15 J) + H (1.025e-14 J) = 1.513e-14 J
Updating solution error estimates
It 44/100: t = 2.200000e-01 ns (elapsed time = 2.34e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.352800e-05
1 KSP residual norm ||r||_B = 9.048343e-06
2 KSP residual norm ||r||_B = 7.605490e-06
3 KSP residual norm ||r||_B = 8.069482e-06
4 KSP residual norm ||r||_B = 9.214505e-06
5 KSP residual norm ||r||_B = 1.383284e-05
6 KSP residual norm ||r||_B = 2.343161e-05
7 KSP residual norm ||r||_B = 2.395996e-05
8 KSP residual norm ||r||_B = 1.132003e-05
9 KSP residual norm ||r||_B = 4.362752e-06
10 KSP residual norm ||r||_B = 2.370717e-06
11 KSP residual norm ||r||_B = 1.350844e-06
12 KSP residual norm ||r||_B = 1.123775e-06
13 KSP residual norm ||r||_B = 1.162016e-06
14 KSP residual norm ||r||_B = 5.537717e-07
15 KSP residual norm ||r||_B = 1.876317e-07
16 KSP residual norm ||r||_B = 5.789236e-08
17 KSP residual norm ||r||_B = 1.764903e-08
18 KSP residual norm ||r||_B = 4.671827e-09
19 KSP residual norm ||r||_B = 1.081800e-09
20 KSP residual norm ||r||_B = 2.226818e-10
21 KSP residual norm ||r||_B = 4.366242e-11
22 KSP residual norm ||r||_B = 9.228551e-12
23 KSP residual norm ||r||_B = 2.054468e-12
24 KSP residual norm ||r||_B = 4.488142e-13
25 KSP residual norm ||r||_B = 9.577342e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.696e-01)
Sol. ||E|| = 3.273573e+00, ||B|| = 6.621314e-02
Field energy E (1.302e-15 J) + H (2.785e-15 J) = 4.087e-15 J
Wrote fields to disk (Paraview) at step 45
Updating solution error estimates
It 45/100: t = 2.250000e-01 ns (elapsed time = 2.40e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 7.520145e-06
1 KSP residual norm ||r||_B = 8.125689e-06
2 KSP residual norm ||r||_B = 9.935181e-06
3 KSP residual norm ||r||_B = 1.272282e-05
4 KSP residual norm ||r||_B = 1.781359e-05
5 KSP residual norm ||r||_B = 2.252377e-05
6 KSP residual norm ||r||_B = 2.578340e-05
7 KSP residual norm ||r||_B = 1.345490e-05
8 KSP residual norm ||r||_B = 8.105350e-06
9 KSP residual norm ||r||_B = 7.225725e-06
10 KSP residual norm ||r||_B = 6.434410e-06
11 KSP residual norm ||r||_B = 4.391308e-06
12 KSP residual norm ||r||_B = 2.211602e-06
13 KSP residual norm ||r||_B = 8.591272e-07
14 KSP residual norm ||r||_B = 2.322752e-07
15 KSP residual norm ||r||_B = 7.538796e-08
16 KSP residual norm ||r||_B = 2.477312e-08
17 KSP residual norm ||r||_B = 6.126348e-09
18 KSP residual norm ||r||_B = 1.290651e-09
19 KSP residual norm ||r||_B = 3.093915e-10
20 KSP residual norm ||r||_B = 7.694163e-11
21 KSP residual norm ||r||_B = 1.597763e-11
22 KSP residual norm ||r||_B = 2.862917e-12
23 KSP residual norm ||r||_B = 5.530964e-13
24 KSP residual norm ||r||_B = 1.222158e-13
25 KSP residual norm ||r||_B = 3.091872e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.595e-01)
Sol. ||E|| = 9.801112e-02, ||B|| = 2.679091e-03
Field energy E (1.141e-18 J) + H (4.587e-18 J) = 5.729e-18 J
Updating solution error estimates
It 46/100: t = 2.300000e-01 ns (elapsed time = 2.45e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.487787e-05
1 KSP residual norm ||r||_B = 1.024165e-05
2 KSP residual norm ||r||_B = 8.855267e-06
3 KSP residual norm ||r||_B = 9.458663e-06
4 KSP residual norm ||r||_B = 1.089146e-05
5 KSP residual norm ||r||_B = 1.635627e-05
6 KSP residual norm ||r||_B = 2.728114e-05
7 KSP residual norm ||r||_B = 2.602717e-05
8 KSP residual norm ||r||_B = 1.246412e-05
9 KSP residual norm ||r||_B = 6.551607e-06
10 KSP residual norm ||r||_B = 6.397633e-06
11 KSP residual norm ||r||_B = 5.352230e-06
12 KSP residual norm ||r||_B = 3.695065e-06
13 KSP residual norm ||r||_B = 1.886520e-06
14 KSP residual norm ||r||_B = 6.179402e-07
15 KSP residual norm ||r||_B = 1.947335e-07
16 KSP residual norm ||r||_B = 5.970455e-08
17 KSP residual norm ||r||_B = 1.838898e-08
18 KSP residual norm ||r||_B = 4.999865e-09
19 KSP residual norm ||r||_B = 1.177594e-09
20 KSP residual norm ||r||_B = 2.415878e-10
21 KSP residual norm ||r||_B = 4.685475e-11
22 KSP residual norm ||r||_B = 9.872844e-12
23 KSP residual norm ||r||_B = 2.221180e-12
24 KSP residual norm ||r||_B = 4.844295e-13
25 KSP residual norm ||r||_B = 1.025254e-13
26 KSP residual norm ||r||_B = 2.273877e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.658e-01)
Sol. ||E|| = 3.148514e+00, ||B|| = 6.116379e-02
Field energy E (1.204e-15 J) + H (2.376e-15 J) = 3.580e-15 J
Wrote fields to disk (Paraview) at step 47
Updating solution error estimates
It 47/100: t = 2.350000e-01 ns (elapsed time = 2.51e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 7.936018e-06
1 KSP residual norm ||r||_B = 8.184494e-06
2 KSP residual norm ||r||_B = 9.740338e-06
3 KSP residual norm ||r||_B = 1.220256e-05
4 KSP residual norm ||r||_B = 1.697757e-05
5 KSP residual norm ||r||_B = 2.094868e-05
6 KSP residual norm ||r||_B = 2.505281e-05
7 KSP residual norm ||r||_B = 1.493547e-05
8 KSP residual norm ||r||_B = 1.064652e-05
9 KSP residual norm ||r||_B = 9.905268e-06
10 KSP residual norm ||r||_B = 8.478152e-06
11 KSP residual norm ||r||_B = 5.626332e-06
12 KSP residual norm ||r||_B = 2.500590e-06
13 KSP residual norm ||r||_B = 9.446554e-07
14 KSP residual norm ||r||_B = 2.729012e-07
15 KSP residual norm ||r||_B = 8.964671e-08
16 KSP residual norm ||r||_B = 2.752465e-08
17 KSP residual norm ||r||_B = 6.722322e-09
18 KSP residual norm ||r||_B = 1.470249e-09
19 KSP residual norm ||r||_B = 3.650006e-10
20 KSP residual norm ||r||_B = 8.955154e-11
21 KSP residual norm ||r||_B = 1.814731e-11
22 KSP residual norm ||r||_B = 3.246540e-12
23 KSP residual norm ||r||_B = 6.167002e-13
24 KSP residual norm ||r||_B = 1.311481e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.637e-01)
Sol. ||E|| = 6.225179e+00, ||B|| = 1.222886e-01
Field energy E (4.707e-15 J) + H (9.499e-15 J) = 1.421e-14 J
Updating solution error estimates
It 48/100: t = 2.400000e-01 ns (elapsed time = 2.56e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.356240e-05
1 KSP residual norm ||r||_B = 9.165841e-06
2 KSP residual norm ||r||_B = 7.821899e-06
3 KSP residual norm ||r||_B = 8.153544e-06
4 KSP residual norm ||r||_B = 9.176914e-06
5 KSP residual norm ||r||_B = 1.348199e-05
6 KSP residual norm ||r||_B = 2.235085e-05
7 KSP residual norm ||r||_B = 2.188768e-05
8 KSP residual norm ||r||_B = 1.176298e-05
9 KSP residual norm ||r||_B = 8.127499e-06
10 KSP residual norm ||r||_B = 9.358221e-06
11 KSP residual norm ||r||_B = 6.541025e-06
12 KSP residual norm ||r||_B = 3.716376e-06
13 KSP residual norm ||r||_B = 1.744887e-06
14 KSP residual norm ||r||_B = 5.610961e-07
15 KSP residual norm ||r||_B = 1.760050e-07
16 KSP residual norm ||r||_B = 5.393011e-08
17 KSP residual norm ||r||_B = 1.666696e-08
18 KSP residual norm ||r||_B = 4.566836e-09
19 KSP residual norm ||r||_B = 1.081849e-09
20 KSP residual norm ||r||_B = 2.222306e-10
21 KSP residual norm ||r||_B = 4.299022e-11
22 KSP residual norm ||r||_B = 9.040490e-12
23 KSP residual norm ||r||_B = 2.034156e-12
24 KSP residual norm ||r||_B = 4.442591e-13
25 KSP residual norm ||r||_B = 9.392182e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.591e-01)
Sol. ||E|| = 9.039740e+00, ||B|| = 1.782585e-01
Field energy E (9.926e-15 J) + H (2.018e-14 J) = 3.011e-14 J
Wrote fields to disk (Paraview) at step 49
Updating solution error estimates
It 49/100: t = 2.450000e-01 ns (elapsed time = 2.62e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 6.529657e-06
1 KSP residual norm ||r||_B = 5.826836e-06
2 KSP residual norm ||r||_B = 6.975133e-06
3 KSP residual norm ||r||_B = 8.951308e-06
4 KSP residual norm ||r||_B = 1.228411e-05
5 KSP residual norm ||r||_B = 1.376079e-05
6 KSP residual norm ||r||_B = 1.587656e-05
7 KSP residual norm ||r||_B = 1.299624e-05
8 KSP residual norm ||r||_B = 1.067077e-05
9 KSP residual norm ||r||_B = 8.996540e-06
10 KSP residual norm ||r||_B = 8.034047e-06
11 KSP residual norm ||r||_B = 5.740662e-06
12 KSP residual norm ||r||_B = 2.214675e-06
13 KSP residual norm ||r||_B = 7.655252e-07
14 KSP residual norm ||r||_B = 2.678175e-07
15 KSP residual norm ||r||_B = 9.300204e-08
16 KSP residual norm ||r||_B = 2.255833e-08
17 KSP residual norm ||r||_B = 4.725007e-09
18 KSP residual norm ||r||_B = 9.275048e-10
19 KSP residual norm ||r||_B = 2.000648e-10
20 KSP residual norm ||r||_B = 4.957573e-11
21 KSP residual norm ||r||_B = 1.326661e-11
22 KSP residual norm ||r||_B = 3.109901e-12
23 KSP residual norm ||r||_B = 6.870385e-13
24 KSP residual norm ||r||_B = 1.596108e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.523e-01)
Sol. ||E|| = 1.148172e+01, ||B|| = 2.268760e-01
Field energy E (1.601e-14 J) + H (3.270e-14 J) = 4.871e-14 J
Updating solution error estimates
It 50/100: t = 2.500000e-01 ns (elapsed time = 2.67e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.012228e-05
1 KSP residual norm ||r||_B = 6.258241e-06
2 KSP residual norm ||r||_B = 4.948945e-06
3 KSP residual norm ||r||_B = 4.772964e-06
4 KSP residual norm ||r||_B = 4.938496e-06
5 KSP residual norm ||r||_B = 6.744266e-06
6 KSP residual norm ||r||_B = 1.107635e-05
7 KSP residual norm ||r||_B = 1.246086e-05
8 KSP residual norm ||r||_B = 8.242012e-06
9 KSP residual norm ||r||_B = 6.869401e-06
10 KSP residual norm ||r||_B = 8.264296e-06
11 KSP residual norm ||r||_B = 5.653810e-06
12 KSP residual norm ||r||_B = 3.209172e-06
13 KSP residual norm ||r||_B = 1.407031e-06
14 KSP residual norm ||r||_B = 4.476801e-07
15 KSP residual norm ||r||_B = 1.417830e-07
16 KSP residual norm ||r||_B = 4.338972e-08
17 KSP residual norm ||r||_B = 1.331340e-08
18 KSP residual norm ||r||_B = 3.573825e-09
19 KSP residual norm ||r||_B = 8.355181e-10
20 KSP residual norm ||r||_B = 1.726990e-10
21 KSP residual norm ||r||_B = 3.371742e-11
22 KSP residual norm ||r||_B = 7.100335e-12
23 KSP residual norm ||r||_B = 1.574847e-12
24 KSP residual norm ||r||_B = 3.452877e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.617e-01)
Sol. ||E|| = 1.346537e+01, ||B|| = 2.664298e-01
Field energy E (2.202e-14 J) + H (4.509e-14 J) = 6.711e-14 J
Wrote fields to disk (Paraview) at step 51
Updating solution error estimates
It 51/100: t = 2.550000e-01 ns (elapsed time = 2.73e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 5.809901e-06
1 KSP residual norm ||r||_B = 3.061312e-06
2 KSP residual norm ||r||_B = 2.395578e-06
3 KSP residual norm ||r||_B = 2.918954e-06
4 KSP residual norm ||r||_B = 4.247063e-06
5 KSP residual norm ||r||_B = 4.919539e-06
6 KSP residual norm ||r||_B = 4.160865e-06
7 KSP residual norm ||r||_B = 4.462942e-06
8 KSP residual norm ||r||_B = 7.196235e-06
9 KSP residual norm ||r||_B = 6.811782e-06
10 KSP residual norm ||r||_B = 2.838200e-06
11 KSP residual norm ||r||_B = 8.962718e-07
12 KSP residual norm ||r||_B = 4.739491e-07
13 KSP residual norm ||r||_B = 3.758862e-07
14 KSP residual norm ||r||_B = 1.471717e-07
15 KSP residual norm ||r||_B = 5.295559e-08
16 KSP residual norm ||r||_B = 1.794261e-08
17 KSP residual norm ||r||_B = 6.443343e-09
18 KSP residual norm ||r||_B = 1.985810e-09
19 KSP residual norm ||r||_B = 4.705955e-10
20 KSP residual norm ||r||_B = 1.032862e-10
21 KSP residual norm ||r||_B = 2.248797e-11
22 KSP residual norm ||r||_B = 4.707924e-12
23 KSP residual norm ||r||_B = 9.140450e-13
24 KSP residual norm ||r||_B = 2.026241e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.520e-01)
Sol. ||E|| = 1.493428e+01, ||B|| = 2.957885e-01
Field energy E (2.709e-14 J) + H (5.557e-14 J) = 8.267e-14 J
Updating solution error estimates
It 52/100: t = 2.600000e-01 ns (elapsed time = 2.78e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 6.193902e-06
1 KSP residual norm ||r||_B = 3.013303e-06
2 KSP residual norm ||r||_B = 1.818921e-06
3 KSP residual norm ||r||_B = 1.300045e-06
4 KSP residual norm ||r||_B = 8.798888e-07
5 KSP residual norm ||r||_B = 6.563881e-07
6 KSP residual norm ||r||_B = 6.493835e-07
7 KSP residual norm ||r||_B = 7.253972e-07
8 KSP residual norm ||r||_B = 6.705375e-07
9 KSP residual norm ||r||_B = 6.172134e-07
10 KSP residual norm ||r||_B = 9.183493e-07
11 KSP residual norm ||r||_B = 1.367464e-06
12 KSP residual norm ||r||_B = 1.672824e-06
13 KSP residual norm ||r||_B = 9.086383e-07
14 KSP residual norm ||r||_B = 3.132845e-07
15 KSP residual norm ||r||_B = 1.032453e-07
16 KSP residual norm ||r||_B = 3.101735e-08
17 KSP residual norm ||r||_B = 9.372396e-09
18 KSP residual norm ||r||_B = 2.380703e-09
19 KSP residual norm ||r||_B = 5.339105e-10
20 KSP residual norm ||r||_B = 1.133635e-10
21 KSP residual norm ||r||_B = 2.312333e-11
22 KSP residual norm ||r||_B = 4.872238e-12
23 KSP residual norm ||r||_B = 1.022645e-12
24 KSP residual norm ||r||_B = 2.270008e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.520e-01)
Sol. ||E|| = 1.586347e+01, ||B|| = 3.144434e-01
Field energy E (3.057e-14 J) + H (6.281e-14 J) = 9.337e-14 J
Wrote fields to disk (Paraview) at step 53
Updating solution error estimates
It 53/100: t = 2.650000e-01 ns (elapsed time = 2.84e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 7.955117e-06
1 KSP residual norm ||r||_B = 3.805084e-06
2 KSP residual norm ||r||_B = 2.131062e-06
3 KSP residual norm ||r||_B = 1.579657e-06
4 KSP residual norm ||r||_B = 1.330172e-06
5 KSP residual norm ||r||_B = 1.406445e-06
6 KSP residual norm ||r||_B = 1.858021e-06
7 KSP residual norm ||r||_B = 2.768834e-06
8 KSP residual norm ||r||_B = 3.482316e-06
9 KSP residual norm ||r||_B = 2.731334e-06
10 KSP residual norm ||r||_B = 2.286468e-06
11 KSP residual norm ||r||_B = 2.305225e-06
12 KSP residual norm ||r||_B = 2.404950e-06
13 KSP residual norm ||r||_B = 1.152060e-06
14 KSP residual norm ||r||_B = 4.132958e-07
15 KSP residual norm ||r||_B = 1.385434e-07
16 KSP residual norm ||r||_B = 4.153954e-08
17 KSP residual norm ||r||_B = 1.251408e-08
18 KSP residual norm ||r||_B = 3.058494e-09
19 KSP residual norm ||r||_B = 6.682811e-10
20 KSP residual norm ||r||_B = 1.445928e-10
21 KSP residual norm ||r||_B = 3.058179e-11
22 KSP residual norm ||r||_B = 6.363960e-12
23 KSP residual norm ||r||_B = 1.281473e-12
24 KSP residual norm ||r||_B = 2.884298e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.590e-01)
Sol. ||E|| = 1.625896e+01, ||B|| = 3.225020e-01
Field energy E (3.211e-14 J) + H (6.607e-14 J) = 9.818e-14 J
Updating solution error estimates
It 54/100: t = 2.700000e-01 ns (elapsed time = 2.88e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 4.529593e-06
1 KSP residual norm ||r||_B = 2.550809e-06
2 KSP residual norm ||r||_B = 2.678979e-06
3 KSP residual norm ||r||_B = 4.250662e-06
4 KSP residual norm ||r||_B = 7.488221e-06
5 KSP residual norm ||r||_B = 9.720117e-06
6 KSP residual norm ||r||_B = 6.749183e-06
7 KSP residual norm ||r||_B = 3.953865e-06
8 KSP residual norm ||r||_B = 3.701339e-06
9 KSP residual norm ||r||_B = 3.429955e-06
10 KSP residual norm ||r||_B = 1.983299e-06
11 KSP residual norm ||r||_B = 1.111936e-06
12 KSP residual norm ||r||_B = 9.206357e-07
13 KSP residual norm ||r||_B = 4.486083e-07
14 KSP residual norm ||r||_B = 1.238104e-07
15 KSP residual norm ||r||_B = 4.247286e-08
16 KSP residual norm ||r||_B = 1.426590e-08
17 KSP residual norm ||r||_B = 5.031997e-09
18 KSP residual norm ||r||_B = 1.545304e-09
19 KSP residual norm ||r||_B = 3.620135e-10
20 KSP residual norm ||r||_B = 7.874170e-11
21 KSP residual norm ||r||_B = 1.729884e-11
22 KSP residual norm ||r||_B = 3.680940e-12
23 KSP residual norm ||r||_B = 6.996181e-13
24 KSP residual norm ||r||_B = 1.492688e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.465e-01)
Sol. ||E|| = 1.615493e+01, ||B|| = 3.206318e-01
Field energy E (3.170e-14 J) + H (6.530e-14 J) = 9.701e-14 J
Wrote fields to disk (Paraview) at step 55
Updating solution error estimates
It 55/100: t = 2.750000e-01 ns (elapsed time = 2.94e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.061030e-05
1 KSP residual norm ||r||_B = 5.945457e-06
2 KSP residual norm ||r||_B = 4.373313e-06
3 KSP residual norm ||r||_B = 4.388278e-06
4 KSP residual norm ||r||_B = 4.785009e-06
5 KSP residual norm ||r||_B = 6.641040e-06
6 KSP residual norm ||r||_B = 1.090823e-05
7 KSP residual norm ||r||_B = 1.437356e-05
8 KSP residual norm ||r||_B = 9.635465e-06
9 KSP residual norm ||r||_B = 4.272494e-06
10 KSP residual norm ||r||_B = 2.145652e-06
11 KSP residual norm ||r||_B = 1.064721e-06
12 KSP residual norm ||r||_B = 8.968845e-07
13 KSP residual norm ||r||_B = 9.461616e-07
14 KSP residual norm ||r||_B = 4.844557e-07
15 KSP residual norm ||r||_B = 1.705841e-07
16 KSP residual norm ||r||_B = 5.222154e-08
17 KSP residual norm ||r||_B = 1.573809e-08
18 KSP residual norm ||r||_B = 3.971119e-09
19 KSP residual norm ||r||_B = 8.927523e-10
20 KSP residual norm ||r||_B = 1.881645e-10
21 KSP residual norm ||r||_B = 3.817385e-11
22 KSP residual norm ||r||_B = 8.038979e-12
23 KSP residual norm ||r||_B = 1.712088e-12
24 KSP residual norm ||r||_B = 3.796757e-13
25 KSP residual norm ||r||_B = 8.386432e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.552e-01)
Sol. ||E|| = 1.560897e+01, ||B|| = 3.099665e-01
Field energy E (2.960e-14 J) + H (6.103e-14 J) = 9.063e-14 J
Updating solution error estimates
It 56/100: t = 2.800000e-01 ns (elapsed time = 2.99e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 5.522279e-06
1 KSP residual norm ||r||_B = 4.416085e-06
2 KSP residual norm ||r||_B = 5.561586e-06
3 KSP residual norm ||r||_B = 7.660028e-06
4 KSP residual norm ||r||_B = 1.160502e-05
5 KSP residual norm ||r||_B = 1.411488e-05
6 KSP residual norm ||r||_B = 1.463658e-05
7 KSP residual norm ||r||_B = 1.041798e-05
8 KSP residual norm ||r||_B = 5.872633e-06
9 KSP residual norm ||r||_B = 2.758103e-06
10 KSP residual norm ||r||_B = 1.413868e-06
11 KSP residual norm ||r||_B = 1.333186e-06
12 KSP residual norm ||r||_B = 1.289096e-06
13 KSP residual norm ||r||_B = 5.787391e-07
14 KSP residual norm ||r||_B = 2.037298e-07
15 KSP residual norm ||r||_B = 7.956385e-08
16 KSP residual norm ||r||_B = 2.067328e-08
17 KSP residual norm ||r||_B = 4.643932e-09
18 KSP residual norm ||r||_B = 1.094807e-09
19 KSP residual norm ||r||_B = 2.912698e-10
20 KSP residual norm ||r||_B = 7.383647e-11
21 KSP residual norm ||r||_B = 1.660269e-11
22 KSP residual norm ||r||_B = 3.522006e-12
23 KSP residual norm ||r||_B = 7.192773e-13
24 KSP residual norm ||r||_B = 1.595481e-13
PCG solver converged in 24 iterations (avg. reduction factor: 4.543e-01)
Sol. ||E|| = 1.469587e+01, ||B|| = 2.919847e-01
Field energy E (2.623e-14 J) + H (5.416e-14 J) = 8.039e-14 J
Wrote fields to disk (Paraview) at step 57
Updating solution error estimates
It 57/100: t = 2.850000e-01 ns (elapsed time = 3.05e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.189990e-05
1 KSP residual norm ||r||_B = 7.059248e-06
2 KSP residual norm ||r||_B = 5.612640e-06
3 KSP residual norm ||r||_B = 5.909709e-06
4 KSP residual norm ||r||_B = 6.593499e-06
5 KSP residual norm ||r||_B = 9.314853e-06
6 KSP residual norm ||r||_B = 1.512993e-05
7 KSP residual norm ||r||_B = 1.756608e-05
8 KSP residual norm ||r||_B = 1.064471e-05
9 KSP residual norm ||r||_B = 5.803496e-06
10 KSP residual norm ||r||_B = 4.949016e-06
11 KSP residual norm ||r||_B = 4.296633e-06
12 KSP residual norm ||r||_B = 3.524385e-06
13 KSP residual norm ||r||_B = 1.708445e-06
14 KSP residual norm ||r||_B = 5.679560e-07
15 KSP residual norm ||r||_B = 1.832055e-07
16 KSP residual norm ||r||_B = 5.583933e-08
17 KSP residual norm ||r||_B = 1.692270e-08
18 KSP residual norm ||r||_B = 4.369860e-09
19 KSP residual norm ||r||_B = 9.966265e-10
20 KSP residual norm ||r||_B = 2.079417e-10
21 KSP residual norm ||r||_B = 4.151346e-11
22 KSP residual norm ||r||_B = 8.764021e-12
23 KSP residual norm ||r||_B = 1.900990e-12
24 KSP residual norm ||r||_B = 4.188546e-13
25 KSP residual norm ||r||_B = 9.106603e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.667e-01)
Sol. ||E|| = 1.350088e+01, ||B|| = 2.683744e-01
Field energy E (2.214e-14 J) + H (4.575e-14 J) = 6.789e-14 J
Updating solution error estimates
It 58/100: t = 2.900000e-01 ns (elapsed time = 3.10e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 6.272141e-06
1 KSP residual norm ||r||_B = 4.994742e-06
2 KSP residual norm ||r||_B = 5.913653e-06
3 KSP residual norm ||r||_B = 7.744440e-06
4 KSP residual norm ||r||_B = 1.152864e-05
5 KSP residual norm ||r||_B = 1.428156e-05
6 KSP residual norm ||r||_B = 1.607527e-05
7 KSP residual norm ||r||_B = 1.210610e-05
8 KSP residual norm ||r||_B = 7.449677e-06
9 KSP residual norm ||r||_B = 4.414196e-06
10 KSP residual norm ||r||_B = 3.406614e-06
11 KSP residual norm ||r||_B = 3.582902e-06
12 KSP residual norm ||r||_B = 2.045501e-06
13 KSP residual norm ||r||_B = 7.229910e-07
14 KSP residual norm ||r||_B = 2.511080e-07
15 KSP residual norm ||r||_B = 9.373662e-08
16 KSP residual norm ||r||_B = 2.340122e-08
17 KSP residual norm ||r||_B = 5.073640e-09
18 KSP residual norm ||r||_B = 1.119309e-09
19 KSP residual norm ||r||_B = 2.875379e-10
20 KSP residual norm ||r||_B = 7.595761e-11
21 KSP residual norm ||r||_B = 1.789851e-11
22 KSP residual norm ||r||_B = 3.846630e-12
23 KSP residual norm ||r||_B = 7.975760e-13
24 KSP residual norm ||r||_B = 1.786877e-13
25 KSP residual norm ||r||_B = 4.082809e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.563e-01)
Sol. ||E|| = 1.211280e+01, ||B|| = 2.408976e-01
Field energy E (1.782e-14 J) + H (3.686e-14 J) = 5.469e-14 J
Wrote fields to disk (Paraview) at step 59
Updating solution error estimates
It 59/100: t = 2.950000e-01 ns (elapsed time = 3.17e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.152165e-05
1 KSP residual norm ||r||_B = 6.734203e-06
2 KSP residual norm ||r||_B = 5.343114e-06
3 KSP residual norm ||r||_B = 5.594810e-06
4 KSP residual norm ||r||_B = 6.161829e-06
5 KSP residual norm ||r||_B = 8.502533e-06
6 KSP residual norm ||r||_B = 1.350331e-05
7 KSP residual norm ||r||_B = 1.558456e-05
8 KSP residual norm ||r||_B = 1.014871e-05
9 KSP residual norm ||r||_B = 6.688483e-06
10 KSP residual norm ||r||_B = 6.788233e-06
11 KSP residual norm ||r||_B = 5.676300e-06
12 KSP residual norm ||r||_B = 3.911758e-06
13 KSP residual norm ||r||_B = 1.697157e-06
14 KSP residual norm ||r||_B = 5.497411e-07
15 KSP residual norm ||r||_B = 1.767901e-07
16 KSP residual norm ||r||_B = 5.388864e-08
17 KSP residual norm ||r||_B = 1.637784e-08
18 KSP residual norm ||r||_B = 4.250115e-09
19 KSP residual norm ||r||_B = 9.718973e-10
20 KSP residual norm ||r||_B = 2.028190e-10
21 KSP residual norm ||r||_B = 4.042868e-11
22 KSP residual norm ||r||_B = 8.533257e-12
23 KSP residual norm ||r||_B = 1.850993e-12
24 KSP residual norm ||r||_B = 4.078243e-13
25 KSP residual norm ||r||_B = 8.861614e-14
26 KSP residual norm ||r||_B = 1.928171e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.706e-01)
Sol. ||E|| = 1.061784e+01, ||B|| = 2.112663e-01
Field energy E (1.369e-14 J) + H (2.835e-14 J) = 4.205e-14 J
Updating solution error estimates
It 60/100: t = 3.000000e-01 ns (elapsed time = 3.22e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 6.287456e-06
1 KSP residual norm ||r||_B = 4.205365e-06
2 KSP residual norm ||r||_B = 4.491241e-06
3 KSP residual norm ||r||_B = 5.950902e-06
4 KSP residual norm ||r||_B = 9.028222e-06
5 KSP residual norm ||r||_B = 1.145573e-05
6 KSP residual norm ||r||_B = 1.224134e-05
7 KSP residual norm ||r||_B = 1.066184e-05
8 KSP residual norm ||r||_B = 7.755818e-06
9 KSP residual norm ||r||_B = 4.735316e-06
10 KSP residual norm ||r||_B = 3.709539e-06
11 KSP residual norm ||r||_B = 3.824590e-06
12 KSP residual norm ||r||_B = 2.206733e-06
13 KSP residual norm ||r||_B = 6.959049e-07
14 KSP residual norm ||r||_B = 2.139906e-07
15 KSP residual norm ||r||_B = 8.648125e-08
16 KSP residual norm ||r||_B = 2.537799e-08
17 KSP residual norm ||r||_B = 6.511247e-09
18 KSP residual norm ||r||_B = 1.728867e-09
19 KSP residual norm ||r||_B = 4.437264e-10
20 KSP residual norm ||r||_B = 1.013216e-10
21 KSP residual norm ||r||_B = 2.164493e-11
22 KSP residual norm ||r||_B = 4.553265e-12
23 KSP residual norm ||r||_B = 9.189704e-13
24 KSP residual norm ||r||_B = 2.031399e-13
25 KSP residual norm ||r||_B = 4.660737e-14
26 KSP residual norm ||r||_B = 9.729938e-15
PCG solver converged in 26 iterations (avg. reduction factor: 4.748e-01)
Sol. ||E|| = 9.094385e+00, ||B|| = 1.810399e-01
Field energy E (1.005e-14 J) + H (2.082e-14 J) = 3.087e-14 J
Wrote fields to disk (Paraview) at step 61
Updating solution error estimates
It 61/100: t = 3.050000e-01 ns (elapsed time = 3.28e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.004687e-05
1 KSP residual norm ||r||_B = 5.428956e-06
2 KSP residual norm ||r||_B = 4.014531e-06
3 KSP residual norm ||r||_B = 4.018441e-06
4 KSP residual norm ||r||_B = 4.260151e-06
5 KSP residual norm ||r||_B = 5.527594e-06
6 KSP residual norm ||r||_B = 8.424912e-06
7 KSP residual norm ||r||_B = 1.044576e-05
8 KSP residual norm ||r||_B = 8.027515e-06
9 KSP residual norm ||r||_B = 5.917540e-06
10 KSP residual norm ||r||_B = 6.294079e-06
11 KSP residual norm ||r||_B = 5.408948e-06
12 KSP residual norm ||r||_B = 3.669658e-06
13 KSP residual norm ||r||_B = 1.523643e-06
14 KSP residual norm ||r||_B = 4.961740e-07
15 KSP residual norm ||r||_B = 1.609298e-07
16 KSP residual norm ||r||_B = 4.886299e-08
17 KSP residual norm ||r||_B = 1.483671e-08
18 KSP residual norm ||r||_B = 3.806052e-09
19 KSP residual norm ||r||_B = 8.625852e-10
20 KSP residual norm ||r||_B = 1.814362e-10
21 KSP residual norm ||r||_B = 3.657418e-11
22 KSP residual norm ||r||_B = 7.713746e-12
23 KSP residual norm ||r||_B = 1.647937e-12
24 KSP residual norm ||r||_B = 3.644642e-13
25 KSP residual norm ||r||_B = 8.016946e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.779e-01)
Sol. ||E|| = 7.609217e+00, ||B|| = 1.515484e-01
Field energy E (7.033e-15 J) + H (1.459e-14 J) = 2.162e-14 J
Updating solution error estimates
It 62/100: t = 3.100000e-01 ns (elapsed time = 3.33e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 6.368555e-06
1 KSP residual norm ||r||_B = 3.175730e-06
2 KSP residual norm ||r||_B = 2.465892e-06
3 KSP residual norm ||r||_B = 2.994258e-06
4 KSP residual norm ||r||_B = 4.901355e-06
5 KSP residual norm ||r||_B = 7.571743e-06
6 KSP residual norm ||r||_B = 7.447852e-06
7 KSP residual norm ||r||_B = 5.839455e-06
8 KSP residual norm ||r||_B = 5.555861e-06
9 KSP residual norm ||r||_B = 4.144054e-06
10 KSP residual norm ||r||_B = 2.694180e-06
11 KSP residual norm ||r||_B = 2.367078e-06
12 KSP residual norm ||r||_B = 1.977482e-06
13 KSP residual norm ||r||_B = 6.789335e-07
14 KSP residual norm ||r||_B = 1.587956e-07
15 KSP residual norm ||r||_B = 4.392392e-08
16 KSP residual norm ||r||_B = 1.094537e-08
17 KSP residual norm ||r||_B = 2.513422e-09
18 KSP residual norm ||r||_B = 6.823678e-10
19 KSP residual norm ||r||_B = 2.703930e-10
20 KSP residual norm ||r||_B = 9.464364e-11
21 KSP residual norm ||r||_B = 2.405371e-11
22 KSP residual norm ||r||_B = 5.243556e-12
23 KSP residual norm ||r||_B = 1.019130e-12
24 KSP residual norm ||r||_B = 2.221409e-13
25 KSP residual norm ||r||_B = 5.332957e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.738e-01)
Sol. ||E|| = 6.215193e+00, ||B|| = 1.238466e-01
Field energy E (4.692e-15 J) + H (9.743e-15 J) = 1.444e-14 J
Wrote fields to disk (Paraview) at step 63
Updating solution error estimates
It 63/100: t = 3.150000e-01 ns (elapsed time = 3.39e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 8.390420e-06
1 KSP residual norm ||r||_B = 3.950286e-06
2 KSP residual norm ||r||_B = 2.449177e-06
3 KSP residual norm ||r||_B = 2.121432e-06
4 KSP residual norm ||r||_B = 2.051082e-06
5 KSP residual norm ||r||_B = 2.323428e-06
6 KSP residual norm ||r||_B = 3.118875e-06
7 KSP residual norm ||r||_B = 4.155245e-06
8 KSP residual norm ||r||_B = 4.278766e-06
9 KSP residual norm ||r||_B = 3.536528e-06
10 KSP residual norm ||r||_B = 3.868730e-06
11 KSP residual norm ||r||_B = 3.930835e-06
12 KSP residual norm ||r||_B = 3.072276e-06
13 KSP residual norm ||r||_B = 1.281272e-06
14 KSP residual norm ||r||_B = 4.289561e-07
15 KSP residual norm ||r||_B = 1.423209e-07
16 KSP residual norm ||r||_B = 4.292158e-08
17 KSP residual norm ||r||_B = 1.305309e-08
18 KSP residual norm ||r||_B = 3.285872e-09
19 KSP residual norm ||r||_B = 7.305594e-10
20 KSP residual norm ||r||_B = 1.559127e-10
21 KSP residual norm ||r||_B = 3.224020e-11
22 KSP residual norm ||r||_B = 6.787408e-12
23 KSP residual norm ||r||_B = 1.403229e-12
24 KSP residual norm ||r||_B = 3.118144e-13
25 KSP residual norm ||r||_B = 7.066539e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.667e-01)
Sol. ||E|| = 4.950382e+00, ||B|| = 9.869571e-02
Field energy E (2.977e-15 J) + H (6.188e-15 J) = 9.165e-15 J
Updating solution error estimates
It 64/100: t = 3.200000e-01 ns (elapsed time = 3.44e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 6.994151e-06
1 KSP residual norm ||r||_B = 2.878016e-06
2 KSP residual norm ||r||_B = 1.376720e-06
3 KSP residual norm ||r||_B = 8.969037e-07
4 KSP residual norm ||r||_B = 9.590531e-07
5 KSP residual norm ||r||_B = 1.687905e-06
6 KSP residual norm ||r||_B = 3.079305e-06
7 KSP residual norm ||r||_B = 2.815180e-06
8 KSP residual norm ||r||_B = 2.026876e-06
9 KSP residual norm ||r||_B = 1.754117e-06
10 KSP residual norm ||r||_B = 1.467859e-06
11 KSP residual norm ||r||_B = 8.341040e-07
12 KSP residual norm ||r||_B = 7.160125e-07
13 KSP residual norm ||r||_B = 6.117894e-07
14 KSP residual norm ||r||_B = 2.556452e-07
15 KSP residual norm ||r||_B = 9.961670e-08
16 KSP residual norm ||r||_B = 3.223495e-08
17 KSP residual norm ||r||_B = 1.048012e-08
18 KSP residual norm ||r||_B = 2.737544e-09
19 KSP residual norm ||r||_B = 5.964253e-10
20 KSP residual norm ||r||_B = 1.294705e-10
21 KSP residual norm ||r||_B = 2.839004e-11
22 KSP residual norm ||r||_B = 5.968317e-12
23 KSP residual norm ||r||_B = 1.137945e-12
24 KSP residual norm ||r||_B = 2.489244e-13
25 KSP residual norm ||r||_B = 6.136017e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.684e-01)
Sol. ||E|| = 3.838435e+00, ||B|| = 7.657056e-02
Field energy E (1.790e-15 J) + H (3.724e-15 J) = 5.514e-15 J
Wrote fields to disk (Paraview) at step 65
Updating solution error estimates
It 65/100: t = 3.250000e-01 ns (elapsed time = 3.50e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 7.294289e-06
1 KSP residual norm ||r||_B = 3.007638e-06
2 KSP residual norm ||r||_B = 1.453619e-06
3 KSP residual norm ||r||_B = 8.883695e-07
4 KSP residual norm ||r||_B = 6.335122e-07
5 KSP residual norm ||r||_B = 5.058135e-07
6 KSP residual norm ||r||_B = 4.052048e-07
7 KSP residual norm ||r||_B = 3.326861e-07
8 KSP residual norm ||r||_B = 3.434537e-07
9 KSP residual norm ||r||_B = 3.145019e-07
10 KSP residual norm ||r||_B = 3.287960e-07
11 KSP residual norm ||r||_B = 4.362757e-07
12 KSP residual norm ||r||_B = 8.181378e-07
13 KSP residual norm ||r||_B = 8.230233e-07
14 KSP residual norm ||r||_B = 3.453106e-07
15 KSP residual norm ||r||_B = 1.237147e-07
16 KSP residual norm ||r||_B = 3.758496e-08
17 KSP residual norm ||r||_B = 1.160128e-08
18 KSP residual norm ||r||_B = 2.908634e-09
19 KSP residual norm ||r||_B = 6.335785e-10
20 KSP residual norm ||r||_B = 1.368496e-10
21 KSP residual norm ||r||_B = 2.925437e-11
22 KSP residual norm ||r||_B = 6.154014e-12
23 KSP residual norm ||r||_B = 1.216197e-12
24 KSP residual norm ||r||_B = 2.689272e-13
25 KSP residual norm ||r||_B = 6.382211e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.629e-01)
Sol. ||E|| = 2.890002e+00, ||B|| = 5.768734e-02
Field energy E (1.015e-15 J) + H (2.114e-15 J) = 3.129e-15 J
Updating solution error estimates
It 66/100: t = 3.300000e-01 ns (elapsed time = 3.55e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 7.811757e-06
1 KSP residual norm ||r||_B = 3.190473e-06
2 KSP residual norm ||r||_B = 1.434268e-06
3 KSP residual norm ||r||_B = 7.516964e-07
4 KSP residual norm ||r||_B = 4.496482e-07
5 KSP residual norm ||r||_B = 3.471965e-07
6 KSP residual norm ||r||_B = 3.333867e-07
7 KSP residual norm ||r||_B = 3.563672e-07
8 KSP residual norm ||r||_B = 5.403417e-07
9 KSP residual norm ||r||_B = 7.854647e-07
10 KSP residual norm ||r||_B = 7.655687e-07
11 KSP residual norm ||r||_B = 5.312321e-07
12 KSP residual norm ||r||_B = 6.152642e-07
13 KSP residual norm ||r||_B = 6.955749e-07
14 KSP residual norm ||r||_B = 3.417506e-07
15 KSP residual norm ||r||_B = 1.294196e-07
16 KSP residual norm ||r||_B = 3.990021e-08
17 KSP residual norm ||r||_B = 1.241395e-08
18 KSP residual norm ||r||_B = 3.107848e-09
19 KSP residual norm ||r||_B = 6.734482e-10
20 KSP residual norm ||r||_B = 1.459965e-10
21 KSP residual norm ||r||_B = 3.153732e-11
22 KSP residual norm ||r||_B = 6.614123e-12
23 KSP residual norm ||r||_B = 1.289219e-12
24 KSP residual norm ||r||_B = 2.852636e-13
25 KSP residual norm ||r||_B = 6.879200e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.702e-01)
Sol. ||E|| = 2.104792e+00, ||B|| = 4.204435e-02
Field energy E (5.382e-16 J) + H (1.123e-15 J) = 1.661e-15 J
Wrote fields to disk (Paraview) at step 67
Updating solution error estimates
It 67/100: t = 3.350000e-01 ns (elapsed time = 3.62e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 6.928115e-06
1 KSP residual norm ||r||_B = 2.755058e-06
2 KSP residual norm ||r||_B = 1.289447e-06
3 KSP residual norm ||r||_B = 7.972152e-07
4 KSP residual norm ||r||_B = 7.505405e-07
5 KSP residual norm ||r||_B = 1.064461e-06
6 KSP residual norm ||r||_B = 1.419480e-06
7 KSP residual norm ||r||_B = 1.234279e-06
8 KSP residual norm ||r||_B = 1.372613e-06
9 KSP residual norm ||r||_B = 1.839607e-06
10 KSP residual norm ||r||_B = 1.924927e-06
11 KSP residual norm ||r||_B = 1.391399e-06
12 KSP residual norm ||r||_B = 1.281298e-06
13 KSP residual norm ||r||_B = 7.794750e-07
14 KSP residual norm ||r||_B = 2.834187e-07
15 KSP residual norm ||r||_B = 1.059475e-07
16 KSP residual norm ||r||_B = 3.338958e-08
17 KSP residual norm ||r||_B = 1.067241e-08
18 KSP residual norm ||r||_B = 2.751832e-09
19 KSP residual norm ||r||_B = 5.971610e-10
20 KSP residual norm ||r||_B = 1.292430e-10
21 KSP residual norm ||r||_B = 2.821439e-11
22 KSP residual norm ||r||_B = 5.956116e-12
23 KSP residual norm ||r||_B = 1.142245e-12
24 KSP residual norm ||r||_B = 2.488505e-13
25 KSP residual norm ||r||_B = 6.098200e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.638e-01)
Sol. ||E|| = 1.474050e+00, ||B|| = 2.947075e-02
Field energy E (2.639e-16 J) + H (5.517e-16 J) = 8.157e-16 J
Updating solution error estimates
It 68/100: t = 3.400000e-01 ns (elapsed time = 3.67e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 8.380265e-06
1 KSP residual norm ||r||_B = 3.509493e-06
2 KSP residual norm ||r||_B = 1.746477e-06
3 KSP residual norm ||r||_B = 1.190352e-06
4 KSP residual norm ||r||_B = 1.067864e-06
5 KSP residual norm ||r||_B = 1.227643e-06
6 KSP residual norm ||r||_B = 1.556039e-06
7 KSP residual norm ||r||_B = 2.004482e-06
8 KSP residual norm ||r||_B = 2.711362e-06
9 KSP residual norm ||r||_B = 2.413547e-06
10 KSP residual norm ||r||_B = 1.933388e-06
11 KSP residual norm ||r||_B = 1.764822e-06
12 KSP residual norm ||r||_B = 1.990954e-06
13 KSP residual norm ||r||_B = 1.129227e-06
14 KSP residual norm ||r||_B = 4.097488e-07
15 KSP residual norm ||r||_B = 1.430019e-07
16 KSP residual norm ||r||_B = 4.339985e-08
17 KSP residual norm ||r||_B = 1.338453e-08
18 KSP residual norm ||r||_B = 3.340516e-09
19 KSP residual norm ||r||_B = 7.280051e-10
20 KSP residual norm ||r||_B = 1.572911e-10
21 KSP residual norm ||r||_B = 3.358073e-11
22 KSP residual norm ||r||_B = 7.051339e-12
23 KSP residual norm ||r||_B = 1.398140e-12
24 KSP residual norm ||r||_B = 3.102800e-13
25 KSP residual norm ||r||_B = 7.345866e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.751e-01)
Sol. ||E|| = 9.830679e-01, ||B|| = 1.967675e-02
Field energy E (1.174e-16 J) + H (2.460e-16 J) = 3.634e-16 J
Wrote fields to disk (Paraview) at step 69
Updating solution error estimates
It 69/100: t = 3.450000e-01 ns (elapsed time = 3.74e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 7.011577e-06
1 KSP residual norm ||r||_B = 2.815072e-06
2 KSP residual norm ||r||_B = 1.412524e-06
3 KSP residual norm ||r||_B = 1.030517e-06
4 KSP residual norm ||r||_B = 1.249329e-06
5 KSP residual norm ||r||_B = 2.266264e-06
6 KSP residual norm ||r||_B = 3.605388e-06
7 KSP residual norm ||r||_B = 2.666045e-06
8 KSP residual norm ||r||_B = 2.012231e-06
9 KSP residual norm ||r||_B = 2.343614e-06
10 KSP residual norm ||r||_B = 2.456588e-06
11 KSP residual norm ||r||_B = 1.030829e-06
12 KSP residual norm ||r||_B = 4.031174e-07
13 KSP residual norm ||r||_B = 2.679567e-07
14 KSP residual norm ||r||_B = 1.630174e-07
15 KSP residual norm ||r||_B = 8.289673e-08
16 KSP residual norm ||r||_B = 3.001210e-08
17 KSP residual norm ||r||_B = 1.019966e-08
18 KSP residual norm ||r||_B = 2.745543e-09
19 KSP residual norm ||r||_B = 6.016871e-10
20 KSP residual norm ||r||_B = 1.301489e-10
21 KSP residual norm ||r||_B = 2.857187e-11
22 KSP residual norm ||r||_B = 6.053320e-12
23 KSP residual norm ||r||_B = 1.152556e-12
24 KSP residual norm ||r||_B = 2.492446e-13
25 KSP residual norm ||r||_B = 6.151039e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.680e-01)
Sol. ||E|| = 6.135914e-01, ||B|| = 1.230114e-02
Field energy E (4.574e-17 J) + H (9.613e-17 J) = 1.419e-16 J
Updating solution error estimates
It 70/100: t = 3.500000e-01 ns (elapsed time = 3.79e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 8.596533e-06
1 KSP residual norm ||r||_B = 3.593978e-06
2 KSP residual norm ||r||_B = 1.838805e-06
3 KSP residual norm ||r||_B = 1.341306e-06
4 KSP residual norm ||r||_B = 1.299568e-06
5 KSP residual norm ||r||_B = 1.542596e-06
6 KSP residual norm ||r||_B = 1.914581e-06
7 KSP residual norm ||r||_B = 2.350843e-06
8 KSP residual norm ||r||_B = 2.987202e-06
9 KSP residual norm ||r||_B = 2.647714e-06
10 KSP residual norm ||r||_B = 2.359794e-06
11 KSP residual norm ||r||_B = 2.341441e-06
12 KSP residual norm ||r||_B = 2.418520e-06
13 KSP residual norm ||r||_B = 1.204889e-06
14 KSP residual norm ||r||_B = 4.231461e-07
15 KSP residual norm ||r||_B = 1.466052e-07
16 KSP residual norm ||r||_B = 4.446474e-08
17 KSP residual norm ||r||_B = 1.372454e-08
18 KSP residual norm ||r||_B = 3.434778e-09
19 KSP residual norm ||r||_B = 7.501683e-10
20 KSP residual norm ||r||_B = 1.618496e-10
21 KSP residual norm ||r||_B = 3.445598e-11
22 KSP residual norm ||r||_B = 7.245132e-12
23 KSP residual norm ||r||_B = 1.442386e-12
24 KSP residual norm ||r||_B = 3.198465e-13
25 KSP residual norm ||r||_B = 7.540505e-14
26 KSP residual norm ||r||_B = 1.589988e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.667e-01)
Sol. ||E|| = 3.458650e-01, ||B|| = 6.952284e-03
Field energy E (1.453e-17 J) + H (3.071e-17 J) = 4.524e-17 J
Wrote fields to disk (Paraview) at step 71
Updating solution error estimates
It 71/100: t = 3.550000e-01 ns (elapsed time = 3.86e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 7.274001e-06
1 KSP residual norm ||r||_B = 2.901289e-06
2 KSP residual norm ||r||_B = 1.436935e-06
3 KSP residual norm ||r||_B = 1.013097e-06
4 KSP residual norm ||r||_B = 1.182401e-06
5 KSP residual norm ||r||_B = 2.132627e-06
6 KSP residual norm ||r||_B = 3.601632e-06
7 KSP residual norm ||r||_B = 2.848365e-06
8 KSP residual norm ||r||_B = 2.059781e-06
9 KSP residual norm ||r||_B = 2.120440e-06
10 KSP residual norm ||r||_B = 2.077136e-06
11 KSP residual norm ||r||_B = 1.103359e-06
12 KSP residual norm ||r||_B = 7.680861e-07
13 KSP residual norm ||r||_B = 5.997524e-07
14 KSP residual norm ||r||_B = 2.410624e-07
15 KSP residual norm ||r||_B = 9.328332e-08
16 KSP residual norm ||r||_B = 3.099780e-08
17 KSP residual norm ||r||_B = 1.046572e-08
18 KSP residual norm ||r||_B = 2.841065e-09
19 KSP residual norm ||r||_B = 6.245094e-10
20 KSP residual norm ||r||_B = 1.350532e-10
21 KSP residual norm ||r||_B = 2.966440e-11
22 KSP residual norm ||r||_B = 6.292670e-12
23 KSP residual norm ||r||_B = 1.198220e-12
24 KSP residual norm ||r||_B = 2.588899e-13
25 KSP residual norm ||r||_B = 6.391296e-14
PCG solver converged in 25 iterations (avg. reduction factor: 4.743e-01)
Sol. ||E|| = 1.603032e-01, ||B|| = 3.241204e-03
Field energy E (3.122e-18 J) + H (6.674e-18 J) = 9.796e-18 J
Updating solution error estimates
It 72/100: t = 3.600000e-01 ns (elapsed time = 3.91e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 8.585511e-06
1 KSP residual norm ||r||_B = 3.503105e-06
2 KSP residual norm ||r||_B = 1.732795e-06
3 KSP residual norm ||r||_B = 1.208105e-06
4 KSP residual norm ||r||_B = 1.143529e-06
5 KSP residual norm ||r||_B = 1.339476e-06
6 KSP residual norm ||r||_B = 1.575745e-06
7 KSP residual norm ||r||_B = 1.775739e-06
8 KSP residual norm ||r||_B = 2.276599e-06
9 KSP residual norm ||r||_B = 2.246829e-06
10 KSP residual norm ||r||_B = 2.177658e-06
11 KSP residual norm ||r||_B = 2.236506e-06
12 KSP residual norm ||r||_B = 2.351815e-06
13 KSP residual norm ||r||_B = 1.185136e-06
14 KSP residual norm ||r||_B = 4.155300e-07
15 KSP residual norm ||r||_B = 1.452077e-07
16 KSP residual norm ||r||_B = 4.417059e-08
17 KSP residual norm ||r||_B = 1.370297e-08
18 KSP residual norm ||r||_B = 3.442505e-09
19 KSP residual norm ||r||_B = 7.508815e-10
20 KSP residual norm ||r||_B = 1.620563e-10
21 KSP residual norm ||r||_B = 3.462148e-11
22 KSP residual norm ||r||_B = 7.289809e-12
23 KSP residual norm ||r||_B = 1.444408e-12
24 KSP residual norm ||r||_B = 3.194883e-13
25 KSP residual norm ||r||_B = 7.572077e-14
26 KSP residual norm ||r||_B = 1.597288e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.730e-01)
Sol. ||E|| = 3.869602e-02, ||B|| = 8.055977e-04
Field energy E (1.819e-19 J) + H (4.124e-19 J) = 5.943e-19 J
Wrote fields to disk (Paraview) at step 73
Updating solution error estimates
It 73/100: t = 3.650000e-01 ns (elapsed time = 3.97e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 7.594507e-06
1 KSP residual norm ||r||_B = 2.971055e-06
2 KSP residual norm ||r||_B = 1.384905e-06
3 KSP residual norm ||r||_B = 8.484744e-07
4 KSP residual norm ||r||_B = 8.267039e-07
5 KSP residual norm ||r||_B = 1.351565e-06
6 KSP residual norm ||r||_B = 2.394100e-06
7 KSP residual norm ||r||_B = 2.132597e-06
8 KSP residual norm ||r||_B = 1.655062e-06
9 KSP residual norm ||r||_B = 1.875703e-06
10 KSP residual norm ||r||_B = 2.134395e-06
11 KSP residual norm ||r||_B = 1.131362e-06
12 KSP residual norm ||r||_B = 6.780245e-07
13 KSP residual norm ||r||_B = 5.393423e-07
14 KSP residual norm ||r||_B = 2.466265e-07
15 KSP residual norm ||r||_B = 1.000387e-07
16 KSP residual norm ||r||_B = 3.334146e-08
17 KSP residual norm ||r||_B = 1.115580e-08
18 KSP residual norm ||r||_B = 2.989902e-09
19 KSP residual norm ||r||_B = 6.544691e-10
20 KSP residual norm ||r||_B = 1.414783e-10
21 KSP residual norm ||r||_B = 3.104706e-11
22 KSP residual norm ||r||_B = 6.585830e-12
23 KSP residual norm ||r||_B = 1.256378e-12
24 KSP residual norm ||r||_B = 2.718467e-13
25 KSP residual norm ||r||_B = 6.706066e-14
26 KSP residual norm ||r||_B = 1.419120e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.660e-01)
Sol. ||E|| = 3.517864e-02, ||B|| = 6.753277e-04
Field energy E (1.503e-19 J) + H (2.896e-19 J) = 4.399e-19 J
Updating solution error estimates
It 74/100: t = 3.700000e-01 ns (elapsed time = 4.02e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 8.512817e-06
1 KSP residual norm ||r||_B = 3.367686e-06
2 KSP residual norm ||r||_B = 1.570884e-06
3 KSP residual norm ||r||_B = 9.820963e-07
4 KSP residual norm ||r||_B = 8.446378e-07
5 KSP residual norm ||r||_B = 9.500773e-07
6 KSP residual norm ||r||_B = 1.049631e-06
7 KSP residual norm ||r||_B = 1.023560e-06
8 KSP residual norm ||r||_B = 1.286661e-06
9 KSP residual norm ||r||_B = 1.493649e-06
10 KSP residual norm ||r||_B = 1.605335e-06
11 KSP residual norm ||r||_B = 1.673581e-06
12 KSP residual norm ||r||_B = 1.937389e-06
13 KSP residual norm ||r||_B = 1.108570e-06
14 KSP residual norm ||r||_B = 3.973246e-07
15 KSP residual norm ||r||_B = 1.414434e-07
16 KSP residual norm ||r||_B = 4.331617e-08
17 KSP residual norm ||r||_B = 1.354765e-08
18 KSP residual norm ||r||_B = 3.423101e-09
19 KSP residual norm ||r||_B = 7.448886e-10
20 KSP residual norm ||r||_B = 1.608663e-10
21 KSP residual norm ||r||_B = 3.458087e-11
22 KSP residual norm ||r||_B = 7.293666e-12
23 KSP residual norm ||r||_B = 1.433158e-12
24 KSP residual norm ||r||_B = 3.157439e-13
25 KSP residual norm ||r||_B = 7.553773e-14
26 KSP residual norm ||r||_B = 1.593903e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.758e-01)
Sol. ||E|| = 7.467623e-02, ||B|| = 1.470800e-03
Field energy E (6.774e-19 J) + H (1.374e-18 J) = 2.051e-18 J
Wrote fields to disk (Paraview) at step 75
Updating solution error estimates
It 75/100: t = 3.750000e-01 ns (elapsed time = 4.09e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 7.918968e-06
1 KSP residual norm ||r||_B = 3.043468e-06
2 KSP residual norm ||r||_B = 1.344875e-06
3 KSP residual norm ||r||_B = 7.112176e-07
4 KSP residual norm ||r||_B = 5.323337e-07
5 KSP residual norm ||r||_B = 6.924233e-07
6 KSP residual norm ||r||_B = 1.137911e-06
7 KSP residual norm ||r||_B = 1.055559e-06
8 KSP residual norm ||r||_B = 9.082845e-07
9 KSP residual norm ||r||_B = 1.235485e-06
10 KSP residual norm ||r||_B = 1.925303e-06
11 KSP residual norm ||r||_B = 1.115930e-06
12 KSP residual norm ||r||_B = 4.558241e-07
13 KSP residual norm ||r||_B = 2.936577e-07
14 KSP residual norm ||r||_B = 1.824422e-07
15 KSP residual norm ||r||_B = 9.689354e-08
16 KSP residual norm ||r||_B = 3.523559e-08
17 KSP residual norm ||r||_B = 1.186076e-08
18 KSP residual norm ||r||_B = 3.142935e-09
19 KSP residual norm ||r||_B = 6.854149e-10
20 KSP residual norm ||r||_B = 1.481129e-10
21 KSP residual norm ||r||_B = 3.244325e-11
22 KSP residual norm ||r||_B = 6.880771e-12
23 KSP residual norm ||r||_B = 1.316828e-12
24 KSP residual norm ||r||_B = 2.855135e-13
25 KSP residual norm ||r||_B = 7.027263e-14
26 KSP residual norm ||r||_B = 1.486895e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.708e-01)
Sol. ||E|| = 9.085995e-02, ||B|| = 1.799539e-03
Field energy E (1.003e-18 J) + H (2.057e-18 J) = 3.060e-18 J
Updating solution error estimates
It 76/100: t = 3.800000e-01 ns (elapsed time = 4.14e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 8.482024e-06
1 KSP residual norm ||r||_B = 3.270570e-06
2 KSP residual norm ||r||_B = 1.450935e-06
3 KSP residual norm ||r||_B = 8.048359e-07
4 KSP residual norm ||r||_B = 5.964386e-07
5 KSP residual norm ||r||_B = 6.162260e-07
6 KSP residual norm ||r||_B = 6.402187e-07
7 KSP residual norm ||r||_B = 5.037948e-07
8 KSP residual norm ||r||_B = 5.433935e-07
9 KSP residual norm ||r||_B = 7.277138e-07
10 KSP residual norm ||r||_B = 9.460765e-07
11 KSP residual norm ||r||_B = 9.825481e-07
12 KSP residual norm ||r||_B = 1.240906e-06
13 KSP residual norm ||r||_B = 9.564955e-07
14 KSP residual norm ||r||_B = 3.727148e-07
15 KSP residual norm ||r||_B = 1.369084e-07
16 KSP residual norm ||r||_B = 4.241675e-08
17 KSP residual norm ||r||_B = 1.340438e-08
18 KSP residual norm ||r||_B = 3.414462e-09
19 KSP residual norm ||r||_B = 7.419214e-10
20 KSP residual norm ||r||_B = 1.602483e-10
21 KSP residual norm ||r||_B = 3.465196e-11
22 KSP residual norm ||r||_B = 7.323916e-12
23 KSP residual norm ||r||_B = 1.427886e-12
24 KSP residual norm ||r||_B = 3.131284e-13
25 KSP residual norm ||r||_B = 7.558737e-14
26 KSP residual norm ||r||_B = 1.596573e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.753e-01)
Sol. ||E|| = 9.217384e-02, ||B|| = 1.830261e-03
Field energy E (1.032e-18 J) + H (2.128e-18 J) = 3.160e-18 J
Wrote fields to disk (Paraview) at step 77
Updating solution error estimates
It 77/100: t = 3.850000e-01 ns (elapsed time = 4.20e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 8.213498e-06
1 KSP residual norm ||r||_B = 3.117339e-06
2 KSP residual norm ||r||_B = 1.340910e-06
3 KSP residual norm ||r||_B = 6.555524e-07
4 KSP residual norm ||r||_B = 3.977846e-07
5 KSP residual norm ||r||_B = 3.881862e-07
6 KSP residual norm ||r||_B = 5.064734e-07
7 KSP residual norm ||r||_B = 4.057976e-07
8 KSP residual norm ||r||_B = 3.299569e-07
9 KSP residual norm ||r||_B = 4.672426e-07
10 KSP residual norm ||r||_B = 1.011777e-06
11 KSP residual norm ||r||_B = 9.941826e-07
12 KSP residual norm ||r||_B = 3.760622e-07
13 KSP residual norm ||r||_B = 1.532265e-07
14 KSP residual norm ||r||_B = 6.241983e-08
15 KSP residual norm ||r||_B = 3.852527e-08
16 KSP residual norm ||r||_B = 2.535547e-08
17 KSP residual norm ||r||_B = 1.152576e-08
18 KSP residual norm ||r||_B = 3.252595e-09
19 KSP residual norm ||r||_B = 7.133309e-10
20 KSP residual norm ||r||_B = 1.541514e-10
21 KSP residual norm ||r||_B = 3.369936e-11
22 KSP residual norm ||r||_B = 7.148640e-12
23 KSP residual norm ||r||_B = 1.372900e-12
24 KSP residual norm ||r||_B = 2.981419e-13
25 KSP residual norm ||r||_B = 7.316529e-14
26 KSP residual norm ||r||_B = 1.548727e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.733e-01)
Sol. ||E|| = 8.486363e-02, ||B|| = 1.687731e-03
Field energy E (8.748e-19 J) + H (1.809e-18 J) = 2.684e-18 J
Updating solution error estimates
It 78/100: t = 3.900000e-01 ns (elapsed time = 4.26e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 8.523205e-06
1 KSP residual norm ||r||_B = 3.229371e-06
2 KSP residual norm ||r||_B = 1.393554e-06
3 KSP residual norm ||r||_B = 7.134967e-07
4 KSP residual norm ||r||_B = 4.623899e-07
5 KSP residual norm ||r||_B = 4.296140e-07
6 KSP residual norm ||r||_B = 4.240098e-07
7 KSP residual norm ||r||_B = 2.620227e-07
8 KSP residual norm ||r||_B = 1.949587e-07
9 KSP residual norm ||r||_B = 2.394923e-07
10 KSP residual norm ||r||_B = 4.135748e-07
11 KSP residual norm ||r||_B = 4.790809e-07
12 KSP residual norm ||r||_B = 5.458128e-07
13 KSP residual norm ||r||_B = 6.303365e-07
14 KSP residual norm ||r||_B = 3.285936e-07
15 KSP residual norm ||r||_B = 1.314905e-07
16 KSP residual norm ||r||_B = 4.170066e-08
17 KSP residual norm ||r||_B = 1.333979e-08
18 KSP residual norm ||r||_B = 3.430031e-09
19 KSP residual norm ||r||_B = 7.452789e-10
20 KSP residual norm ||r||_B = 1.609166e-10
21 KSP residual norm ||r||_B = 3.494382e-11
22 KSP residual norm ||r||_B = 7.401710e-12
23 KSP residual norm ||r||_B = 1.435365e-12
24 KSP residual norm ||r||_B = 3.134587e-13
25 KSP residual norm ||r||_B = 7.614903e-14
26 KSP residual norm ||r||_B = 1.610972e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.745e-01)
Sol. ||E|| = 7.331862e-02, ||B|| = 1.459731e-03
Field energy E (6.530e-19 J) + H (1.354e-18 J) = 2.007e-18 J
Wrote fields to disk (Paraview) at step 79
Updating solution error estimates
It 79/100: t = 3.950000e-01 ns (elapsed time = 4.32e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 8.463803e-06
1 KSP residual norm ||r||_B = 3.181286e-06
2 KSP residual norm ||r||_B = 1.355939e-06
3 KSP residual norm ||r||_B = 6.527058e-07
4 KSP residual norm ||r||_B = 3.715106e-07
5 KSP residual norm ||r||_B = 3.131958e-07
6 KSP residual norm ||r||_B = 3.335908e-07
7 KSP residual norm ||r||_B = 2.083998e-07
8 KSP residual norm ||r||_B = 1.173456e-07
9 KSP residual norm ||r||_B = 1.132518e-07
10 KSP residual norm ||r||_B = 2.412012e-07
11 KSP residual norm ||r||_B = 5.064276e-07
12 KSP residual norm ||r||_B = 3.433924e-07
13 KSP residual norm ||r||_B = 1.530079e-07
14 KSP residual norm ||r||_B = 5.986908e-08
15 KSP residual norm ||r||_B = 3.476770e-08
16 KSP residual norm ||r||_B = 2.379506e-08
17 KSP residual norm ||r||_B = 1.163482e-08
18 KSP residual norm ||r||_B = 3.353898e-09
19 KSP residual norm ||r||_B = 7.372886e-10
20 KSP residual norm ||r||_B = 1.592675e-10
21 KSP residual norm ||r||_B = 3.476687e-11
22 KSP residual norm ||r||_B = 7.380042e-12
23 KSP residual norm ||r||_B = 1.421321e-12
24 KSP residual norm ||r||_B = 3.088541e-13
25 KSP residual norm ||r||_B = 7.561506e-14
26 KSP residual norm ||r||_B = 1.601972e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.743e-01)
Sol. ||E|| = 6.044257e-02, ||B|| = 1.204383e-03
Field energy E (4.438e-19 J) + H (9.214e-19 J) = 1.365e-18 J
Updating solution error estimates
It 80/100: t = 4.000000e-01 ns (elapsed time = 4.37e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 8.625021e-06
1 KSP residual norm ||r||_B = 3.228631e-06
2 KSP residual norm ||r||_B = 1.378230e-06
3 KSP residual norm ||r||_B = 6.824159e-07
4 KSP residual norm ||r||_B = 4.129207e-07
5 KSP residual norm ||r||_B = 3.590761e-07
6 KSP residual norm ||r||_B = 3.480107e-07
7 KSP residual norm ||r||_B = 1.873366e-07
8 KSP residual norm ||r||_B = 8.679992e-08
9 KSP residual norm ||r||_B = 5.803127e-08
10 KSP residual norm ||r||_B = 9.207397e-08
11 KSP residual norm ||r||_B = 1.984762e-07
12 KSP residual norm ||r||_B = 2.185341e-07
13 KSP residual norm ||r||_B = 1.996023e-07
14 KSP residual norm ||r||_B = 1.619799e-07
15 KSP residual norm ||r||_B = 1.046489e-07
16 KSP residual norm ||r||_B = 3.988505e-08
17 KSP residual norm ||r||_B = 1.330054e-08
18 KSP residual norm ||r||_B = 3.466881e-09
19 KSP residual norm ||r||_B = 7.542854e-10
20 KSP residual norm ||r||_B = 1.627715e-10
21 KSP residual norm ||r||_B = 3.543604e-11
22 KSP residual norm ||r||_B = 7.521019e-12
23 KSP residual norm ||r||_B = 1.454383e-12
24 KSP residual norm ||r||_B = 3.166198e-13
25 KSP residual norm ||r||_B = 7.719842e-14
26 KSP residual norm ||r||_B = 1.635950e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.741e-01)
Sol. ||E|| = 4.800818e-02, ||B|| = 9.572765e-04
Field energy E (2.800e-19 J) + H (5.821e-19 J) = 8.621e-19 J
Wrote fields to disk (Paraview) at step 81
Updating solution error estimates
It 81/100: t = 4.050000e-01 ns (elapsed time = 4.43e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 8.674143e-06
1 KSP residual norm ||r||_B = 3.230851e-06
2 KSP residual norm ||r||_B = 1.373308e-06
3 KSP residual norm ||r||_B = 6.659163e-07
4 KSP residual norm ||r||_B = 3.830719e-07
5 KSP residual norm ||r||_B = 3.176082e-07
6 KSP residual norm ||r||_B = 3.156676e-07
7 KSP residual norm ||r||_B = 1.751806e-07
8 KSP residual norm ||r||_B = 7.225528e-08
9 KSP residual norm ||r||_B = 3.072699e-08
10 KSP residual norm ||r||_B = 2.763526e-08
11 KSP residual norm ||r||_B = 5.169164e-08
12 KSP residual norm ||r||_B = 7.454480e-08
13 KSP residual norm ||r||_B = 8.795524e-08
14 KSP residual norm ||r||_B = 9.671276e-08
15 KSP residual norm ||r||_B = 8.600104e-08
16 KSP residual norm ||r||_B = 3.833337e-08
17 KSP residual norm ||r||_B = 1.321637e-08
18 KSP residual norm ||r||_B = 3.480185e-09
19 KSP residual norm ||r||_B = 7.580359e-10
20 KSP residual norm ||r||_B = 1.635385e-10
21 KSP residual norm ||r||_B = 3.567077e-11
22 KSP residual norm ||r||_B = 7.579737e-12
23 KSP residual norm ||r||_B = 1.462445e-12
24 KSP residual norm ||r||_B = 3.177232e-13
25 KSP residual norm ||r||_B = 7.768176e-14
26 KSP residual norm ||r||_B = 1.647652e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.746e-01)
Sol. ||E|| = 3.697339e-02, ||B|| = 7.376606e-04
Field energy E (1.661e-19 J) + H (3.457e-19 J) = 5.117e-19 J
Updating solution error estimates
It 82/100: t = 4.100000e-01 ns (elapsed time = 4.48e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 8.765143e-06
1 KSP residual norm ||r||_B = 3.249130e-06
2 KSP residual norm ||r||_B = 1.382153e-06
3 KSP residual norm ||r||_B = 6.792031e-07
4 KSP residual norm ||r||_B = 4.025136e-07
5 KSP residual norm ||r||_B = 3.407701e-07
6 KSP residual norm ||r||_B = 3.301017e-07
7 KSP residual norm ||r||_B = 1.759829e-07
8 KSP residual norm ||r||_B = 7.030415e-08
9 KSP residual norm ||r||_B = 2.485095e-08
10 KSP residual norm ||r||_B = 1.308683e-08
11 KSP residual norm ||r||_B = 1.299232e-08
12 KSP residual norm ||r||_B = 1.267375e-08
13 KSP residual norm ||r||_B = 1.490496e-08
14 KSP residual norm ||r||_B = 2.402175e-08
15 KSP residual norm ||r||_B = 4.320768e-08
16 KSP residual norm ||r||_B = 3.405139e-08
17 KSP residual norm ||r||_B = 1.319585e-08
18 KSP residual norm ||r||_B = 3.518286e-09
19 KSP residual norm ||r||_B = 7.670625e-10
20 KSP residual norm ||r||_B = 1.654288e-10
21 KSP residual norm ||r||_B = 3.606237e-11
22 KSP residual norm ||r||_B = 7.667360e-12
23 KSP residual norm ||r||_B = 1.481122e-12
24 KSP residual norm ||r||_B = 3.217494e-13
25 KSP residual norm ||r||_B = 7.858804e-14
26 KSP residual norm ||r||_B = 1.668055e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.741e-01)
Sol. ||E|| = 2.773767e-02, ||B|| = 5.536783e-04
Field energy E (9.346e-20 J) + H (1.947e-19 J) = 2.882e-19 J
Wrote fields to disk (Paraview) at step 83
Updating solution error estimates
It 83/100: t = 4.150000e-01 ns (elapsed time = 4.54e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 8.857610e-06
1 KSP residual norm ||r||_B = 3.269053e-06
2 KSP residual norm ||r||_B = 1.387745e-06
3 KSP residual norm ||r||_B = 6.794944e-07
4 KSP residual norm ||r||_B = 3.982642e-07
5 KSP residual norm ||r||_B = 3.320840e-07
6 KSP residual norm ||r||_B = 3.230446e-07
7 KSP residual norm ||r||_B = 1.762096e-07
8 KSP residual norm ||r||_B = 7.279456e-08
9 KSP residual norm ||r||_B = 2.843221e-08
10 KSP residual norm ||r||_B = 1.685070e-08
11 KSP residual norm ||r||_B = 1.278239e-08
12 KSP residual norm ||r||_B = 6.741938e-09
13 KSP residual norm ||r||_B = 5.417125e-09
14 KSP residual norm ||r||_B = 8.072879e-09
15 KSP residual norm ||r||_B = 1.825870e-08
16 KSP residual norm ||r||_B = 2.544249e-08
17 KSP residual norm ||r||_B = 1.280090e-08
18 KSP residual norm ||r||_B = 3.547023e-09
19 KSP residual norm ||r||_B = 7.754682e-10
20 KSP residual norm ||r||_B = 1.672119e-10
21 KSP residual norm ||r||_B = 3.646474e-11
22 KSP residual norm ||r||_B = 7.758284e-12
23 KSP residual norm ||r||_B = 1.498562e-12
24 KSP residual norm ||r||_B = 3.253271e-13
25 KSP residual norm ||r||_B = 7.949669e-14
26 KSP residual norm ||r||_B = 1.688341e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.746e-01)
Sol. ||E|| = 2.035126e-02, ||B|| = 4.063937e-04
Field energy E (5.031e-20 J) + H (1.049e-19 J) = 1.552e-19 J
Updating solution error estimates
It 84/100: t = 4.200000e-01 ns (elapsed time = 4.59e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 8.924662e-06
1 KSP residual norm ||r||_B = 3.278150e-06
2 KSP residual norm ||r||_B = 1.392641e-06
3 KSP residual norm ||r||_B = 6.861648e-07
4 KSP residual norm ||r||_B = 4.058597e-07
5 KSP residual norm ||r||_B = 3.383410e-07
6 KSP residual norm ||r||_B = 3.250443e-07
7 KSP residual norm ||r||_B = 1.777560e-07
8 KSP residual norm ||r||_B = 7.699894e-08
9 KSP residual norm ||r||_B = 3.479269e-08
10 KSP residual norm ||r||_B = 2.421891e-08
11 KSP residual norm ||r||_B = 1.677303e-08
12 KSP residual norm ||r||_B = 9.040483e-09
13 KSP residual norm ||r||_B = 9.920403e-09
14 KSP residual norm ||r||_B = 1.880913e-08
15 KSP residual norm ||r||_B = 3.907042e-08
16 KSP residual norm ||r||_B = 3.376930e-08
17 KSP residual norm ||r||_B = 1.336162e-08
18 KSP residual norm ||r||_B = 3.582881e-09
19 KSP residual norm ||r||_B = 7.819185e-10
20 KSP residual norm ||r||_B = 1.685205e-10
21 KSP residual norm ||r||_B = 3.675883e-11
22 KSP residual norm ||r||_B = 7.827567e-12
23 KSP residual norm ||r||_B = 1.512089e-12
24 KSP residual norm ||r||_B = 3.279934e-13
25 KSP residual norm ||r||_B = 8.016640e-14
26 KSP residual norm ||r||_B = 1.704037e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.742e-01)
Sol. ||E|| = 1.465939e-02, ||B|| = 2.928402e-04
Field energy E (2.611e-20 J) + H (5.448e-20 J) = 8.058e-20 J
Wrote fields to disk (Paraview) at step 85
Updating solution error estimates
It 85/100: t = 4.250000e-01 ns (elapsed time = 4.65e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.026855e-06
1 KSP residual norm ||r||_B = 3.300754e-06
2 KSP residual norm ||r||_B = 1.399838e-06
3 KSP residual norm ||r||_B = 6.913012e-07
4 KSP residual norm ||r||_B = 4.102179e-07
5 KSP residual norm ||r||_B = 3.407617e-07
6 KSP residual norm ||r||_B = 3.256272e-07
7 KSP residual norm ||r||_B = 1.795908e-07
8 KSP residual norm ||r||_B = 8.045919e-08
9 KSP residual norm ||r||_B = 3.940748e-08
10 KSP residual norm ||r||_B = 2.959357e-08
11 KSP residual norm ||r||_B = 2.095145e-08
12 KSP residual norm ||r||_B = 1.396778e-08
13 KSP residual norm ||r||_B = 2.073464e-08
14 KSP residual norm ||r||_B = 4.293196e-08
15 KSP residual norm ||r||_B = 6.853730e-08
16 KSP residual norm ||r||_B = 3.873529e-08
17 KSP residual norm ||r||_B = 1.370763e-08
18 KSP residual norm ||r||_B = 3.629586e-09
19 KSP residual norm ||r||_B = 7.916721e-10
20 KSP residual norm ||r||_B = 1.705679e-10
21 KSP residual norm ||r||_B = 3.719871e-11
22 KSP residual norm ||r||_B = 7.925413e-12
23 KSP residual norm ||r||_B = 1.532068e-12
24 KSP residual norm ||r||_B = 3.322770e-13
25 KSP residual norm ||r||_B = 8.118097e-14
26 KSP residual norm ||r||_B = 1.726458e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.746e-01)
Sol. ||E|| = 1.041567e-02, ||B|| = 2.081014e-04
Field energy E (1.318e-20 J) + H (2.751e-20 J) = 4.069e-20 J
Updating solution error estimates
It 86/100: t = 4.300000e-01 ns (elapsed time = 4.69e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.091456e-06
1 KSP residual norm ||r||_B = 3.309104e-06
2 KSP residual norm ||r||_B = 1.404490e-06
3 KSP residual norm ||r||_B = 6.965301e-07
4 KSP residual norm ||r||_B = 4.138173e-07
5 KSP residual norm ||r||_B = 3.398543e-07
6 KSP residual norm ||r||_B = 3.206877e-07
7 KSP residual norm ||r||_B = 1.799127e-07
8 KSP residual norm ||r||_B = 8.576945e-08
9 KSP residual norm ||r||_B = 4.639559e-08
10 KSP residual norm ||r||_B = 3.436604e-08
11 KSP residual norm ||r||_B = 1.968860e-08
12 KSP residual norm ||r||_B = 1.074200e-08
13 KSP residual norm ||r||_B = 1.408798e-08
14 KSP residual norm ||r||_B = 2.923811e-08
15 KSP residual norm ||r||_B = 5.434698e-08
16 KSP residual norm ||r||_B = 3.704759e-08
17 KSP residual norm ||r||_B = 1.369136e-08
18 KSP residual norm ||r||_B = 3.653440e-09
19 KSP residual norm ||r||_B = 7.976382e-10
20 KSP residual norm ||r||_B = 1.717913e-10
21 KSP residual norm ||r||_B = 3.748085e-11
22 KSP residual norm ||r||_B = 7.992750e-12
23 KSP residual norm ||r||_B = 1.544935e-12
24 KSP residual norm ||r||_B = 3.347585e-13
25 KSP residual norm ||r||_B = 8.182539e-14
26 KSP residual norm ||r||_B = 1.741667e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.743e-01)
Sol. ||E|| = 7.341306e-03, ||B|| = 1.467023e-04
Field energy E (6.547e-21 J) + H (1.367e-20 J) = 2.022e-20 J
Wrote fields to disk (Paraview) at step 87
Updating solution error estimates
It 87/100: t = 4.350000e-01 ns (elapsed time = 4.76e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.190115e-06
1 KSP residual norm ||r||_B = 3.329287e-06
2 KSP residual norm ||r||_B = 1.410824e-06
3 KSP residual norm ||r||_B = 7.025032e-07
4 KSP residual norm ||r||_B = 4.201835e-07
5 KSP residual norm ||r||_B = 3.444725e-07
6 KSP residual norm ||r||_B = 3.221984e-07
7 KSP residual norm ||r||_B = 1.815779e-07
8 KSP residual norm ||r||_B = 8.891195e-08
9 KSP residual norm ||r||_B = 4.989429e-08
10 KSP residual norm ||r||_B = 3.701051e-08
11 KSP residual norm ||r||_B = 2.075790e-08
12 KSP residual norm ||r||_B = 1.192254e-08
13 KSP residual norm ||r||_B = 1.686362e-08
14 KSP residual norm ||r||_B = 3.567390e-08
15 KSP residual norm ||r||_B = 6.210647e-08
16 KSP residual norm ||r||_B = 3.844411e-08
17 KSP residual norm ||r||_B = 1.388349e-08
18 KSP residual norm ||r||_B = 3.696520e-09
19 KSP residual norm ||r||_B = 8.071386e-10
20 KSP residual norm ||r||_B = 1.737850e-10
21 KSP residual norm ||r||_B = 3.790504e-11
22 KSP residual norm ||r||_B = 8.087391e-12
23 KSP residual norm ||r||_B = 1.564596e-12
24 KSP residual norm ||r||_B = 3.389947e-13
25 KSP residual norm ||r||_B = 8.281366e-14
26 KSP residual norm ||r||_B = 1.763581e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.746e-01)
Sol. ||E|| = 5.176211e-03, ||B|| = 1.034132e-04
Field energy E (3.255e-21 J) + H (6.794e-21 J) = 1.005e-20 J
Updating solution error estimates
It 88/100: t = 4.400000e-01 ns (elapsed time = 4.80e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.259149e-06
1 KSP residual norm ||r||_B = 3.339068e-06
2 KSP residual norm ||r||_B = 1.415839e-06
3 KSP residual norm ||r||_B = 7.079515e-07
4 KSP residual norm ||r||_B = 4.233807e-07
5 KSP residual norm ||r||_B = 3.419959e-07
6 KSP residual norm ||r||_B = 3.153753e-07
7 KSP residual norm ||r||_B = 1.813079e-07
8 KSP residual norm ||r||_B = 9.411519e-08
9 KSP residual norm ||r||_B = 5.612697e-08
10 KSP residual norm ||r||_B = 3.990559e-08
11 KSP residual norm ||r||_B = 1.921831e-08
12 KSP residual norm ||r||_B = 8.412223e-09
13 KSP residual norm ||r||_B = 8.714475e-09
14 KSP residual norm ||r||_B = 1.670133e-08
15 KSP residual norm ||r||_B = 3.612599e-08
16 KSP residual norm ||r||_B = 3.369167e-08
17 KSP residual norm ||r||_B = 1.372977e-08
18 KSP residual norm ||r||_B = 3.719709e-09
19 KSP residual norm ||r||_B = 8.134963e-10
20 KSP residual norm ||r||_B = 1.750979e-10
21 KSP residual norm ||r||_B = 3.820359e-11
22 KSP residual norm ||r||_B = 8.158053e-12
23 KSP residual norm ||r||_B = 1.578365e-12
24 KSP residual norm ||r||_B = 3.417115e-13
25 KSP residual norm ||r||_B = 8.350406e-14
26 KSP residual norm ||r||_B = 1.779705e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.745e-01)
Sol. ||E|| = 3.688253e-03, ||B|| = 7.367496e-05
Field energy E (1.653e-21 J) + H (3.448e-21 J) = 5.101e-21 J
Wrote fields to disk (Paraview) at step 89
Updating solution error estimates
It 89/100: t = 4.450000e-01 ns (elapsed time = 4.86e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.351331e-06
1 KSP residual norm ||r||_B = 3.356062e-06
2 KSP residual norm ||r||_B = 1.421082e-06
3 KSP residual norm ||r||_B = 7.137712e-07
4 KSP residual norm ||r||_B = 4.296005e-07
5 KSP residual norm ||r||_B = 3.456513e-07
6 KSP residual norm ||r||_B = 3.154464e-07
7 KSP residual norm ||r||_B = 1.825415e-07
8 KSP residual norm ||r||_B = 9.740815e-08
9 KSP residual norm ||r||_B = 5.955011e-08
10 KSP residual norm ||r||_B = 4.179980e-08
11 KSP residual norm ||r||_B = 1.965277e-08
12 KSP residual norm ||r||_B = 8.687119e-09
13 KSP residual norm ||r||_B = 9.244092e-09
14 KSP residual norm ||r||_B = 1.798607e-08
15 KSP residual norm ||r||_B = 3.846962e-08
16 KSP residual norm ||r||_B = 3.457471e-08
17 KSP residual norm ||r||_B = 1.389301e-08
18 KSP residual norm ||r||_B = 3.759544e-09
19 KSP residual norm ||r||_B = 8.223871e-10
20 KSP residual norm ||r||_B = 1.769563e-10
21 KSP residual norm ||r||_B = 3.859960e-11
22 KSP residual norm ||r||_B = 8.247214e-12
23 KSP residual norm ||r||_B = 1.596965e-12
24 KSP residual norm ||r||_B = 3.456961e-13
25 KSP residual norm ||r||_B = 8.443367e-14
26 KSP residual norm ||r||_B = 1.800474e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.746e-01)
Sol. ||E|| = 2.693483e-03, ||B|| = 5.375528e-05
Field energy E (8.814e-22 J) + H (1.836e-21 J) = 2.717e-21 J
Updating solution error estimates
It 90/100: t = 4.500000e-01 ns (elapsed time = 4.91e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.425074e-06
1 KSP residual norm ||r||_B = 3.366967e-06
2 KSP residual norm ||r||_B = 1.426033e-06
3 KSP residual norm ||r||_B = 7.194954e-07
4 KSP residual norm ||r||_B = 4.333190e-07
5 KSP residual norm ||r||_B = 3.435124e-07
6 KSP residual norm ||r||_B = 3.088519e-07
7 KSP residual norm ||r||_B = 1.820125e-07
8 KSP residual norm ||r||_B = 1.019489e-07
9 KSP residual norm ||r||_B = 6.467525e-08
10 KSP residual norm ||r||_B = 4.386388e-08
11 KSP residual norm ||r||_B = 1.897227e-08
12 KSP residual norm ||r||_B = 6.597985e-09
13 KSP residual norm ||r||_B = 4.432449e-09
14 KSP residual norm ||r||_B = 6.209865e-09
15 KSP residual norm ||r||_B = 1.437713e-08
16 KSP residual norm ||r||_B = 2.320749e-08
17 KSP residual norm ||r||_B = 1.317075e-08
18 KSP residual norm ||r||_B = 3.774027e-09
19 KSP residual norm ||r||_B = 8.291341e-10
20 KSP residual norm ||r||_B = 1.783759e-10
21 KSP residual norm ||r||_B = 3.891617e-11
22 KSP residual norm ||r||_B = 8.321370e-12
23 KSP residual norm ||r||_B = 1.611801e-12
24 KSP residual norm ||r||_B = 3.487013e-13
25 KSP residual norm ||r||_B = 8.517520e-14
26 KSP residual norm ||r||_B = 1.817602e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.746e-01)
Sol. ||E|| = 2.042282e-03, ||B|| = 4.073798e-05
Field energy E (5.067e-22 J) + H (1.054e-21 J) = 1.561e-21 J
Wrote fields to disk (Paraview) at step 91
Updating solution error estimates
It 91/100: t = 4.550000e-01 ns (elapsed time = 4.97e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.511752e-06
1 KSP residual norm ||r||_B = 3.381344e-06
2 KSP residual norm ||r||_B = 1.430394e-06
3 KSP residual norm ||r||_B = 7.250267e-07
4 KSP residual norm ||r||_B = 4.389080e-07
5 KSP residual norm ||r||_B = 3.455021e-07
6 KSP residual norm ||r||_B = 3.070248e-07
7 KSP residual norm ||r||_B = 1.826126e-07
8 KSP residual norm ||r||_B = 1.052434e-07
9 KSP residual norm ||r||_B = 6.801249e-08
10 KSP residual norm ||r||_B = 4.541782e-08
11 KSP residual norm ||r||_B = 1.931341e-08
12 KSP residual norm ||r||_B = 6.796219e-09
13 KSP residual norm ||r||_B = 4.771155e-09
14 KSP residual norm ||r||_B = 6.985226e-09
15 KSP residual norm ||r||_B = 1.625866e-08
16 KSP residual norm ||r||_B = 2.485445e-08
17 KSP residual norm ||r||_B = 1.342015e-08
18 KSP residual norm ||r||_B = 3.813075e-09
19 KSP residual norm ||r||_B = 8.374983e-10
20 KSP residual norm ||r||_B = 1.801127e-10
21 KSP residual norm ||r||_B = 3.928758e-11
22 KSP residual norm ||r||_B = 8.405809e-12
23 KSP residual norm ||r||_B = 1.629454e-12
24 KSP residual norm ||r||_B = 3.524570e-13
25 KSP residual norm ||r||_B = 8.605375e-14
26 KSP residual norm ||r||_B = 1.837374e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.746e-01)
Sol. ||E|| = 1.629078e-03, ||B|| = 3.244431e-05
Field energy E (3.224e-22 J) + H (6.687e-22 J) = 9.911e-22 J
Updating solution error estimates
It 92/100: t = 4.600000e-01 ns (elapsed time = 5.02e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.588490e-06
1 KSP residual norm ||r||_B = 3.392530e-06
2 KSP residual norm ||r||_B = 1.434796e-06
3 KSP residual norm ||r||_B = 7.306859e-07
4 KSP residual norm ||r||_B = 4.430347e-07
5 KSP residual norm ||r||_B = 3.438703e-07
6 KSP residual norm ||r||_B = 3.010232e-07
7 KSP residual norm ||r||_B = 1.818410e-07
8 KSP residual norm ||r||_B = 1.089173e-07
9 KSP residual norm ||r||_B = 7.200038e-08
10 KSP residual norm ||r||_B = 4.694518e-08
11 KSP residual norm ||r||_B = 1.919849e-08
12 KSP residual norm ||r||_B = 5.935994e-09
13 KSP residual norm ||r||_B = 2.648314e-09
14 KSP residual norm ||r||_B = 2.081564e-09
15 KSP residual norm ||r||_B = 3.698396e-09
16 KSP residual norm ||r||_B = 8.775037e-09
17 KSP residual norm ||r||_B = 1.033313e-08
18 KSP residual norm ||r||_B = 3.765176e-09
19 KSP residual norm ||r||_B = 8.439240e-10
20 KSP residual norm ||r||_B = 1.815993e-10
21 KSP residual norm ||r||_B = 3.961521e-11
22 KSP residual norm ||r||_B = 8.482060e-12
23 KSP residual norm ||r||_B = 1.645054e-12
24 KSP residual norm ||r||_B = 3.556774e-13
25 KSP residual norm ||r||_B = 8.683013e-14
26 KSP residual norm ||r||_B = 1.855177e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.746e-01)
Sol. ||E|| = 1.370890e-03, ||B|| = 2.728955e-05
Field energy E (2.283e-22 J) + H (4.730e-22 J) = 7.014e-22 J
Wrote fields to disk (Paraview) at step 93
Updating solution error estimates
It 93/100: t = 4.650000e-01 ns (elapsed time = 5.09e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.671394e-06
1 KSP residual norm ||r||_B = 3.404975e-06
2 KSP residual norm ||r||_B = 1.438391e-06
3 KSP residual norm ||r||_B = 7.359069e-07
4 KSP residual norm ||r||_B = 4.480195e-07
5 KSP residual norm ||r||_B = 3.444001e-07
6 KSP residual norm ||r||_B = 2.976356e-07
7 KSP residual norm ||r||_B = 1.817011e-07
8 KSP residual norm ||r||_B = 1.118466e-07
9 KSP residual norm ||r||_B = 7.494361e-08
10 KSP residual norm ||r||_B = 4.815625e-08
11 KSP residual norm ||r||_B = 1.947040e-08
12 KSP residual norm ||r||_B = 6.079127e-09
13 KSP residual norm ||r||_B = 2.888680e-09
14 KSP residual norm ||r||_B = 2.575987e-09
15 KSP residual norm ||r||_B = 4.993361e-09
16 KSP residual norm ||r||_B = 1.138044e-08
17 KSP residual norm ||r||_B = 1.133126e-08
18 KSP residual norm ||r||_B = 3.825886e-09
19 KSP residual norm ||r||_B = 8.521544e-10
20 KSP residual norm ||r||_B = 1.832529e-10
21 KSP residual norm ||r||_B = 3.996901e-11
22 KSP residual norm ||r||_B = 8.563125e-12
23 KSP residual norm ||r||_B = 1.662075e-12
24 KSP residual norm ||r||_B = 3.592837e-13
25 KSP residual norm ||r||_B = 8.767392e-14
26 KSP residual norm ||r||_B = 1.874269e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.747e-01)
Sol. ||E|| = 1.216471e-03, ||B|| = 2.417454e-05
Field energy E (1.798e-22 J) + H (3.712e-22 J) = 5.510e-22 J
Updating solution error estimates
It 94/100: t = 4.700000e-01 ns (elapsed time = 5.14e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.749426e-06
1 KSP residual norm ||r||_B = 3.415777e-06
2 KSP residual norm ||r||_B = 1.441959e-06
3 KSP residual norm ||r||_B = 7.412096e-07
4 KSP residual norm ||r||_B = 4.522405e-07
5 KSP residual norm ||r||_B = 3.429644e-07
6 KSP residual norm ||r||_B = 2.920035e-07
7 KSP residual norm ||r||_B = 1.806034e-07
8 KSP residual norm ||r||_B = 1.146411e-07
9 KSP residual norm ||r||_B = 7.793585e-08
10 KSP residual norm ||r||_B = 4.926679e-08
11 KSP residual norm ||r||_B = 1.957990e-08
12 KSP residual norm ||r||_B = 5.852548e-09
13 KSP residual norm ||r||_B = 2.180175e-09
14 KSP residual norm ||r||_B = 9.679151e-10
15 KSP residual norm ||r||_B = 8.920003e-10
16 KSP residual norm ||r||_B = 1.848834e-09
17 KSP residual norm ||r||_B = 4.264861e-09
18 KSP residual norm ||r||_B = 3.393785e-09
19 KSP residual norm ||r||_B = 8.540960e-10
20 KSP residual norm ||r||_B = 1.847272e-10
21 KSP residual norm ||r||_B = 4.030012e-11
22 KSP residual norm ||r||_B = 8.640065e-12
23 KSP residual norm ||r||_B = 1.678099e-12
24 KSP residual norm ||r||_B = 3.626325e-13
25 KSP residual norm ||r||_B = 8.846777e-14
26 KSP residual norm ||r||_B = 1.892401e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.747e-01)
Sol. ||E|| = 1.124033e-03, ||B|| = 2.233948e-05
Field energy E (1.535e-22 J) + H (3.170e-22 J) = 4.705e-22 J
Wrote fields to disk (Paraview) at step 95
Updating solution error estimates
It 95/100: t = 4.750000e-01 ns (elapsed time = 5.20e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.829905e-06
1 KSP residual norm ||r||_B = 3.426753e-06
2 KSP residual norm ||r||_B = 1.444775e-06
3 KSP residual norm ||r||_B = 7.460463e-07
4 KSP residual norm ||r||_B = 4.567251e-07
5 KSP residual norm ||r||_B = 3.424304e-07
6 KSP residual norm ||r||_B = 2.875603e-07
7 KSP residual norm ||r||_B = 1.797335e-07
8 KSP residual norm ||r||_B = 1.169438e-07
9 KSP residual norm ||r||_B = 8.030048e-08
10 KSP residual norm ||r||_B = 5.015959e-08
11 KSP residual norm ||r||_B = 1.979156e-08
12 KSP residual norm ||r||_B = 5.928128e-09
13 KSP residual norm ||r||_B = 2.260704e-09
14 KSP residual norm ||r||_B = 1.126946e-09
15 KSP residual norm ||r||_B = 1.249125e-09
16 KSP residual norm ||r||_B = 2.832859e-09
17 KSP residual norm ||r||_B = 5.825208e-09
18 KSP residual norm ||r||_B = 3.603954e-09
19 KSP residual norm ||r||_B = 8.640519e-10
20 KSP residual norm ||r||_B = 1.863456e-10
21 KSP residual norm ||r||_B = 4.064201e-11
22 KSP residual norm ||r||_B = 8.718800e-12
23 KSP residual norm ||r||_B = 1.694748e-12
24 KSP residual norm ||r||_B = 3.661571e-13
25 KSP residual norm ||r||_B = 8.928984e-14
26 KSP residual norm ||r||_B = 1.911062e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.747e-01)
Sol. ||E|| = 1.073096e-03, ||B|| = 2.129746e-05
Field energy E (1.399e-22 J) + H (2.881e-22 J) = 4.281e-22 J
Updating solution error estimates
It 96/100: t = 4.800000e-01 ns (elapsed time = 5.25e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.908089e-06
1 KSP residual norm ||r||_B = 3.436795e-06
2 KSP residual norm ||r||_B = 1.447386e-06
3 KSP residual norm ||r||_B = 7.508160e-07
4 KSP residual norm ||r||_B = 4.607960e-07
5 KSP residual norm ||r||_B = 3.409021e-07
6 KSP residual norm ||r||_B = 2.820297e-07
7 KSP residual norm ||r||_B = 1.782272e-07
8 KSP residual norm ||r||_B = 1.189023e-07
9 KSP residual norm ||r||_B = 8.246538e-08
10 KSP residual norm ||r||_B = 5.094413e-08
11 KSP residual norm ||r||_B = 1.995846e-08
12 KSP residual norm ||r||_B = 5.925371e-09
13 KSP residual norm ||r||_B = 2.129528e-09
14 KSP residual norm ||r||_B = 7.609822e-10
15 KSP residual norm ||r||_B = 4.018929e-10
16 KSP residual norm ||r||_B = 5.159901e-10
17 KSP residual norm ||r||_B = 1.274268e-09
18 KSP residual norm ||r||_B = 2.344155e-09
19 KSP residual norm ||r||_B = 8.479259e-10
20 KSP residual norm ||r||_B = 1.876361e-10
21 KSP residual norm ||r||_B = 4.097010e-11
22 KSP residual norm ||r||_B = 8.795446e-12
23 KSP residual norm ||r||_B = 1.710952e-12
24 KSP residual norm ||r||_B = 3.695706e-13
25 KSP residual norm ||r||_B = 9.008880e-14
26 KSP residual norm ||r||_B = 1.929277e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.748e-01)
Sol. ||E|| = 1.043363e-03, ||B|| = 2.071974e-05
Field energy E (1.323e-22 J) + H (2.727e-22 J) = 4.050e-22 J
Wrote fields to disk (Paraview) at step 97
Updating solution error estimates
It 97/100: t = 4.850000e-01 ns (elapsed time = 5.32e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 9.986945e-06
1 KSP residual norm ||r||_B = 3.446558e-06
2 KSP residual norm ||r||_B = 1.449352e-06
3 KSP residual norm ||r||_B = 7.551572e-07
4 KSP residual norm ||r||_B = 4.648452e-07
5 KSP residual norm ||r||_B = 3.396313e-07
6 KSP residual norm ||r||_B = 2.769358e-07
7 KSP residual norm ||r||_B = 1.766952e-07
8 KSP residual norm ||r||_B = 1.204643e-07
9 KSP residual norm ||r||_B = 8.420793e-08
10 KSP residual norm ||r||_B = 5.157157e-08
11 KSP residual norm ||r||_B = 2.013381e-08
12 KSP residual norm ||r||_B = 5.971917e-09
13 KSP residual norm ||r||_B = 2.131659e-09
14 KSP residual norm ||r||_B = 7.243809e-10
15 KSP residual norm ||r||_B = 2.994449e-10
16 KSP residual norm ||r||_B = 2.662890e-10
17 KSP residual norm ||r||_B = 5.620579e-10
18 KSP residual norm ||r||_B = 1.464975e-09
19 KSP residual norm ||r||_B = 8.169405e-10
20 KSP residual norm ||r||_B = 1.887613e-10
21 KSP residual norm ||r||_B = 4.129838e-11
22 KSP residual norm ||r||_B = 8.872397e-12
23 KSP residual norm ||r||_B = 1.727383e-12
24 KSP residual norm ||r||_B = 3.730546e-13
25 KSP residual norm ||r||_B = 9.089670e-14
26 KSP residual norm ||r||_B = 1.947651e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.748e-01)
Sol. ||E|| = 1.029410e-03, ||B|| = 2.041954e-05
Field energy E (1.288e-22 J) + H (2.649e-22 J) = 3.936e-22 J
Updating solution error estimates
It 98/100: t = 4.900000e-01 ns (elapsed time = 5.37e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.006465e-05
1 KSP residual norm ||r||_B = 3.455676e-06
2 KSP residual norm ||r||_B = 1.450970e-06
3 KSP residual norm ||r||_B = 7.592917e-07
4 KSP residual norm ||r||_B = 4.686235e-07
5 KSP residual norm ||r||_B = 3.378552e-07
6 KSP residual norm ||r||_B = 2.713448e-07
7 KSP residual norm ||r||_B = 1.747316e-07
8 KSP residual norm ||r||_B = 1.216329e-07
9 KSP residual norm ||r||_B = 8.568063e-08
10 KSP residual norm ||r||_B = 5.209905e-08
11 KSP residual norm ||r||_B = 2.030043e-08
12 KSP residual norm ||r||_B = 6.026463e-09
13 KSP residual norm ||r||_B = 2.161700e-09
14 KSP residual norm ||r||_B = 7.681641e-10
15 KSP residual norm ||r||_B = 3.975104e-10
16 KSP residual norm ||r||_B = 4.990509e-10
17 KSP residual norm ||r||_B = 1.223290e-09
18 KSP residual norm ||r||_B = 2.317720e-09
19 KSP residual norm ||r||_B = 8.605772e-10
20 KSP residual norm ||r||_B = 1.906989e-10
21 KSP residual norm ||r||_B = 4.162928e-11
22 KSP residual norm ||r||_B = 8.948272e-12
23 KSP residual norm ||r||_B = 1.743620e-12
24 KSP residual norm ||r||_B = 3.764941e-13
25 KSP residual norm ||r||_B = 9.169339e-14
26 KSP residual norm ||r||_B = 1.965802e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.748e-01)
Sol. ||E|| = 1.020722e-03, ||B|| = 2.026424e-05
Field energy E (1.266e-22 J) + H (2.608e-22 J) = 3.874e-22 J
Wrote fields to disk (Paraview) at step 99
Updating solution error estimates
It 99/100: t = 4.950000e-01 ns (elapsed time = 5.44e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.014228e-05
1 KSP residual norm ||r||_B = 3.464361e-06
2 KSP residual norm ||r||_B = 1.452024e-06
3 KSP residual norm ||r||_B = 7.630282e-07
4 KSP residual norm ||r||_B = 4.722611e-07
5 KSP residual norm ||r||_B = 3.360650e-07
6 KSP residual norm ||r||_B = 2.658597e-07
7 KSP residual norm ||r||_B = 1.726144e-07
8 KSP residual norm ||r||_B = 1.224365e-07
9 KSP residual norm ||r||_B = 8.682926e-08
10 KSP residual norm ||r||_B = 5.250683e-08
11 KSP residual norm ||r||_B = 2.045502e-08
12 KSP residual norm ||r||_B = 6.072849e-09
13 KSP residual norm ||r||_B = 2.165731e-09
14 KSP residual norm ||r||_B = 7.368192e-10
15 KSP residual norm ||r||_B = 3.080099e-10
16 KSP residual norm ||r||_B = 2.808289e-10
17 KSP residual norm ||r||_B = 6.003141e-10
18 KSP residual norm ||r||_B = 1.538920e-09
19 KSP residual norm ||r||_B = 8.338548e-10
20 KSP residual norm ||r||_B = 1.918461e-10
21 KSP residual norm ||r||_B = 4.195068e-11
22 KSP residual norm ||r||_B = 9.023753e-12
23 KSP residual norm ||r||_B = 1.759908e-12
24 KSP residual norm ||r||_B = 3.799566e-13
25 KSP residual norm ||r||_B = 9.249045e-14
26 KSP residual norm ||r||_B = 1.983946e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.749e-01)
Sol. ||E|| = 1.018367e-03, ||B|| = 2.019722e-05
Field energy E (1.260e-22 J) + H (2.591e-22 J) = 3.851e-22 J
Updating solution error estimates
It 100/100: t = 5.000000e-01 ns (elapsed time = 5.49e+03 s)
Residual norms for PCG solve
0 KSP residual norm ||r||_B = 1.021921e-05
1 KSP residual norm ||r||_B = 3.472518e-06
2 KSP residual norm ||r||_B = 1.452650e-06
3 KSP residual norm ||r||_B = 7.664625e-07
4 KSP residual norm ||r||_B = 4.756760e-07
5 KSP residual norm ||r||_B = 3.339954e-07
6 KSP residual norm ||r||_B = 2.601473e-07
7 KSP residual norm ||r||_B = 1.701813e-07
8 KSP residual norm ||r||_B = 1.228588e-07
9 KSP residual norm ||r||_B = 8.770754e-08
10 KSP residual norm ||r||_B = 5.282285e-08
11 KSP residual norm ||r||_B = 2.060635e-08
12 KSP residual norm ||r||_B = 6.137182e-09
13 KSP residual norm ||r||_B = 2.224058e-09
14 KSP residual norm ||r||_B = 8.567606e-10
15 KSP residual norm ||r||_B = 5.817365e-10
16 KSP residual norm ||r||_B = 9.737036e-10
17 KSP residual norm ||r||_B = 2.446883e-09
18 KSP residual norm ||r||_B = 3.064676e-09
19 KSP residual norm ||r||_B = 8.910068e-10
20 KSP residual norm ||r||_B = 1.939059e-10
21 KSP residual norm ||r||_B = 4.227748e-11
22 KSP residual norm ||r||_B = 9.098501e-12
23 KSP residual norm ||r||_B = 1.776096e-12
24 KSP residual norm ||r||_B = 3.834005e-13
25 KSP residual norm ||r||_B = 9.328076e-14
26 KSP residual norm ||r||_B = 2.001950e-14
PCG solver converged in 26 iterations (avg. reduction factor: 4.749e-01)
Sol. ||E|| = 1.015768e-03, ||B|| = 2.016402e-05
Field energy E (1.254e-22 J) + H (2.583e-22 J) = 3.836e-22 J
Wrote fields to disk (Paraview) at step 101
Updating solution error estimates
Completed 0 iterations of adaptive mesh refinement (AMR):
Indicator norm = 2.155e-01, global unknowns = 546784
Max. iterations = 0, tol. = 1.000e-02
Estimated peak per-rank memory usage is: Min. 2.5G, Max. 2.5G, Avg. 2.5G, Total 2.5G
Estimated peak per-node memory usage is: Min. 2.5G, Max. 2.5G, Avg. 2.5G, Total 2.5G
Elapsed Time Report (s) Min. Max. Avg.
==============================================================
Initialization 0.344 0.344 0.344
Mesh Preprocessing 1.335 1.335 1.335
Operator Construction 0.876 0.876 0.876
Linear Solve 473.309 473.309 473.309
Setup 19.717 19.717 19.717
Preconditioner 3568.592 3568.592 3568.592
Coarse Solve 141.657 141.657 141.657
Time Stepping 26.853 26.853 26.853
Estimation 9.934 9.934 9.934
Construction 14.838 14.838 14.838
Solve 564.968 564.968 564.968
Postprocessing 11.328 11.328 11.328
Paraview 735.266 735.266 735.266
Disk IO 0.405 0.405 0.405
--------------------------------------------------------------
Total 5569.694 5569.694 5569.694
Peak Memory Per-Node Total Total HWM
==============================================================
Initialization 1.8M 1.8M 1.8M
Mesh Preprocessing 40.9M 40.9M 42.7M
Operator Construction 417.5M 417.5M 460.1M
Linear Solve 0.0K 0.0K 460.1M
Setup 599.9M 599.9M 1.0G
Preconditioner 0.0K 0.0K 1.0G
Coarse Solve 0.0K 0.0K 1.0G
Time Stepping 386.7M 386.7M 1.4G
Estimation 272.8M 272.8M 1.7G
Construction 378.6M 378.6M 2.0G
Solve 223.3M 223.3M 2.3G
Postprocessing 124.5M 124.5M 2.4G
Paraview 24.9M 24.9M 2.4G
Disk IO 28.7M 28.7M 2.4G
--------------------------------------------------------------
Total 2.5G 2.5G 2.5GTime domain simulation#
from palacetoolkit.postpro_vtu import generate_transient_video
generate_transient_video(
"postpro/l_antenna_transient",
"l_antenna.gif",
field_name="E", fps=10,
)
Computing global field range (excluding air box)...
Global max |E|: 7.5595e+06
Rendering 51 frames at 10 fps...
Saved: /home/runner/work/PalaceToolkit/PalaceToolkit/docs/examples/l_antenna.gif
PosixPath('l_antenna.gif')
Driven simulation#
We need to perform a driven type simulation to get the s parameters.
run_palace(config_file="l_antenna_driven.json", num_procs=1)
Palace simulation output
Running: /home/runner/.cache/palacetoolkit/runtime/palace-cpu-v0.17.0/bin/palace --serial /home/runner/work/PalaceToolkit/PalaceToolkit/docs/examples/l_antenna_driven.json
>> /home/runner/.cache/palacetoolkit/runtime/palace-cpu-v0.17.0/bin/palace-x86_64.bin /home/runner/work/PalaceToolkit/PalaceToolkit/docs/examples/l_antenna_driven.json
_____________ _______
_____ __ \____ __ /____ ____________
____ /_/ / __ ` / / __ ` / ___/ _ \
___ _____/ /_/ / / /_/ / /__/ ___/
/__/ \___,__/__/\___,__/\_____\_____/
Git changeset ID: v0.17.0-272-gb22f654ab
Running with 1 MPI process, 1 OpenMP thread
Device configuration: omp,cpu
Memory configuration: host-std
libCEED backend: /cpu/self/xsmm/blocked
Added 1443 duplicate vertices for interior boundaries in the mesh
Added 3286 duplicate boundary elements for interior boundaries in the mesh
Characteristic length and time scales:
Lc = 1.100e-01 m, tc = 3.669e-01 ns
Finished partitioning mesh into 1 subdomain
Mesh curvature order: 1
Mesh bounding box:
(Xmin, Ymin, Zmin) = (-5.497e-02, -5.500e-02, -5.500e-02) m
(Xmax, Ymax, Zmax) = (+5.492e-02, +5.491e-02, +5.500e-02) m
Parallel Mesh Stats:
minimum average maximum total
vertices 16196 16196 16196 16196
edges 103526 103526 103526 103526
faces 169866 169866 169866 169866
elements 82533 82533 82533 82533
neighbors 0 0 0
minimum maximum
h 0.00474058 0.0966723
kappa 1.05585 7.38466
Estimated current per-rank memory usage is: Min. 107.5M, Max. 107.5M, Avg. 107.5M, Total 107.5M
Estimated current per-node memory usage is: Min. 107.5M, Max. 107.5M, Avg. 107.5M, Total 107.5M
Configuring Robin absorbing BC (order 1) at attributes:
8
Configuring Robin impedance BC for lumped ports at attributes:
5: Rs = 7.692e+01 Ω/sq, n = (-1.0,+0.0,+0.0)
6: Rs = 7.692e+01 Ω/sq, n = (+0.0,+1.0,+0.0)
Configuring lumped port circuit properties:
Index = 1: R = 5.000e+01 Ω
Index = 2: R = 5.000e+01 Ω
Configuring lumped port excitation source term at attributes:
5: Index = 1
Configuring Dirichlet PEC BC at attributes:
3-4
Computing adaptive fast frequency response for:
Excitation with index 1 has contributions from:
Lumped port 1
Beginning PROM construction offline phase:
51 points for frequency sweep over [3.300e+00, 3.800e+00] GHz
Assembling system matrices, number of global unknowns:
H1 (p = 2): 119722, ND (p = 2): 546784, RT (p = 2): 757197
Operator assembly level: Partial
Mesh geometries:
Tetrahedron: P = 20, Q = 14 (quadrature order = 4)
Assembling multigrid hierarchy:
Level 0 (p = 1): 103526 unknowns
Level 1 (p = 2): 546784 unknowns
Level 0 (auxiliary) (p = 1): 16196 unknowns
Level 1 (auxiliary) (p = 2): 119722 unknowns
Residual norms for GMRES solve
0 (restart 0) KSP residual norm 3.922436e+01
1 (restart 0) KSP residual norm 2.998914e+01
2 (restart 0) KSP residual norm 2.553717e+01
3 (restart 0) KSP residual norm 2.434204e+01
4 (restart 0) KSP residual norm 2.114707e+01
5 (restart 0) KSP residual norm 1.922956e+01
6 (restart 0) KSP residual norm 1.208588e+01
7 (restart 0) KSP residual norm 5.882668e+00
8 (restart 0) KSP residual norm 5.761450e+00
9 (restart 0) KSP residual norm 4.421852e+00
10 (restart 0) KSP residual norm 3.676630e+00
11 (restart 0) KSP residual norm 2.806542e+00
12 (restart 0) KSP residual norm 2.691402e+00
13 (restart 0) KSP residual norm 1.764170e+00
14 (restart 0) KSP residual norm 1.731235e+00
15 (restart 0) KSP residual norm 1.517894e+00
16 (restart 0) KSP residual norm 6.392207e-01
17 (restart 0) KSP residual norm 6.041661e-01
18 (restart 0) KSP residual norm 5.730704e-01
19 (restart 0) KSP residual norm 4.905260e-01
20 (restart 0) KSP residual norm 4.548167e-01
21 (restart 0) KSP residual norm 3.275533e-01
22 (restart 0) KSP residual norm 2.768831e-01
23 (restart 0) KSP residual norm 2.533515e-01
24 (restart 0) KSP residual norm 2.311170e-01
25 (restart 0) KSP residual norm 2.020009e-01
26 (restart 0) KSP residual norm 1.622597e-01
27 (restart 0) KSP residual norm 1.301737e-01
28 (restart 0) KSP residual norm 1.181370e-01
29 (restart 0) KSP residual norm 9.488322e-02
30 (restart 0) KSP residual norm 6.264633e-02
31 (restart 0) KSP residual norm 4.257479e-02
32 (restart 0) KSP residual norm 3.217465e-02
33 (restart 0) KSP residual norm 2.674944e-02
34 (restart 0) KSP residual norm 2.191582e-02
35 (restart 0) KSP residual norm 1.547871e-02
36 (restart 0) KSP residual norm 1.382406e-02
37 (restart 0) KSP residual norm 8.582380e-03
38 (restart 0) KSP residual norm 6.614432e-03
39 (restart 0) KSP residual norm 5.410321e-03
40 (restart 0) KSP residual norm 4.684410e-03
41 (restart 0) KSP residual norm 4.073911e-03
42 (restart 0) KSP residual norm 2.614549e-03
43 (restart 0) KSP residual norm 2.161837e-03
44 (restart 0) KSP residual norm 1.964953e-03
45 (restart 0) KSP residual norm 1.285620e-03
46 (restart 0) KSP residual norm 1.129726e-03
47 (restart 0) KSP residual norm 8.352211e-04
48 (restart 0) KSP residual norm 5.832074e-04
49 (restart 0) KSP residual norm 4.258658e-04
50 (restart 0) KSP residual norm 2.305193e-04
51 (restart 0) KSP residual norm 1.256430e-04
52 (restart 0) KSP residual norm 8.578692e-05
53 (restart 0) KSP residual norm 5.690392e-05
54 (restart 0) KSP residual norm 3.362031e-05
55 (restart 0) KSP residual norm 1.761884e-05
56 (restart 0) KSP residual norm 1.303148e-05
57 (restart 0) KSP residual norm 7.496070e-06
58 (restart 0) KSP residual norm 4.711543e-06
59 (restart 0) KSP residual norm 2.560824e-06
60 (restart 0) KSP residual norm 1.610749e-06
61 (restart 0) KSP residual norm 1.137810e-06
62 (restart 0) KSP residual norm 7.365934e-07
63 (restart 0) KSP residual norm 4.675186e-07
64 (restart 0) KSP residual norm 2.312260e-07
GMRES solver converged in 64 iterations (avg. reduction factor: 7.437e-01)
Field energy E (1.492e-10 J) + H (1.401e-10 J) = 2.893e-10 J
Residual norms for GMRES solve
0 (restart 0) KSP residual norm 3.596286e+01
1 (restart 0) KSP residual norm 3.304809e+01
2 (restart 0) KSP residual norm 1.880210e+01
3 (restart 0) KSP residual norm 1.766458e+01
4 (restart 0) KSP residual norm 1.745271e+01
5 (restart 0) KSP residual norm 1.706799e+01
6 (restart 0) KSP residual norm 1.588373e+01
7 (restart 0) KSP residual norm 1.362665e+01
8 (restart 0) KSP residual norm 1.238618e+01
9 (restart 0) KSP residual norm 9.803165e+00
10 (restart 0) KSP residual norm 9.043339e+00
11 (restart 0) KSP residual norm 8.104011e+00
12 (restart 0) KSP residual norm 6.593751e+00
13 (restart 0) KSP residual norm 4.697939e+00
14 (restart 0) KSP residual norm 4.362455e+00
15 (restart 0) KSP residual norm 3.217954e+00
16 (restart 0) KSP residual norm 3.195660e+00
17 (restart 0) KSP residual norm 2.852584e+00
18 (restart 0) KSP residual norm 2.738290e+00
19 (restart 0) KSP residual norm 2.318928e+00
20 (restart 0) KSP residual norm 2.147248e+00
21 (restart 0) KSP residual norm 1.409789e+00
22 (restart 0) KSP residual norm 1.216548e+00
23 (restart 0) KSP residual norm 1.046385e+00
24 (restart 0) KSP residual norm 8.457066e-01
25 (restart 0) KSP residual norm 7.230788e-01
26 (restart 0) KSP residual norm 5.667596e-01
27 (restart 0) KSP residual norm 4.177161e-01
28 (restart 0) KSP residual norm 3.637576e-01
29 (restart 0) KSP residual norm 2.992549e-01
30 (restart 0) KSP residual norm 2.111618e-01
31 (restart 0) KSP residual norm 1.436468e-01
32 (restart 0) KSP residual norm 1.275933e-01
33 (restart 0) KSP residual norm 1.121680e-01
34 (restart 0) KSP residual norm 8.321728e-02
35 (restart 0) KSP residual norm 5.982972e-02
36 (restart 0) KSP residual norm 4.748090e-02
37 (restart 0) KSP residual norm 3.668187e-02
38 (restart 0) KSP residual norm 3.007341e-02
39 (restart 0) KSP residual norm 2.454520e-02
40 (restart 0) KSP residual norm 2.203858e-02
41 (restart 0) KSP residual norm 1.783687e-02
42 (restart 0) KSP residual norm 1.553067e-02
43 (restart 0) KSP residual norm 9.092707e-03
44 (restart 0) KSP residual norm 6.934046e-03
45 (restart 0) KSP residual norm 4.790067e-03
46 (restart 0) KSP residual norm 4.394823e-03
47 (restart 0) KSP residual norm 3.099971e-03
48 (restart 0) KSP residual norm 2.351384e-03
49 (restart 0) KSP residual norm 1.873711e-03
50 (restart 0) KSP residual norm 1.296138e-03
51 (restart 0) KSP residual norm 1.147359e-03
52 (restart 0) KSP residual norm 1.025825e-03
53 (restart 0) KSP residual norm 6.941768e-04
54 (restart 0) KSP residual norm 5.310800e-04
55 (restart 0) KSP residual norm 4.129556e-04
56 (restart 0) KSP residual norm 3.173348e-04
57 (restart 0) KSP residual norm 2.711006e-04
58 (restart 0) KSP residual norm 1.300188e-04
59 (restart 0) KSP residual norm 8.276087e-05
60 (restart 0) KSP residual norm 7.036095e-05
61 (restart 0) KSP residual norm 4.861953e-05
62 (restart 0) KSP residual norm 3.751496e-05
63 (restart 0) KSP residual norm 2.574220e-05
64 (restart 0) KSP residual norm 1.697005e-05
65 (restart 0) KSP residual norm 1.054367e-05
66 (restart 0) KSP residual norm 6.160624e-06
67 (restart 0) KSP residual norm 4.617314e-06
68 (restart 0) KSP residual norm 3.038302e-06
69 (restart 0) KSP residual norm 1.903493e-06
70 (restart 0) KSP residual norm 1.335509e-06
71 (restart 0) KSP residual norm 9.543581e-07
72 (restart 0) KSP residual norm 7.341625e-07
73 (restart 0) KSP residual norm 4.848301e-07
74 (restart 0) KSP residual norm 3.512078e-07
GMRES solver converged in 74 iterations (avg. reduction factor: 7.794e-01)
Field energy E (1.461e-10 J) + H (1.497e-10 J) = 2.957e-10 J
Residual norms for GMRES solve
0 (restart 0) KSP residual norm 3.253818e+01
1 (restart 0) KSP residual norm 2.445963e+01
2 (restart 0) KSP residual norm 2.239526e+01
3 (restart 0) KSP residual norm 1.989809e+01
4 (restart 0) KSP residual norm 1.886535e+01
5 (restart 0) KSP residual norm 1.013160e+01
6 (restart 0) KSP residual norm 9.974011e+00
7 (restart 0) KSP residual norm 6.440261e+00
8 (restart 0) KSP residual norm 6.127536e+00
9 (restart 0) KSP residual norm 5.627766e+00
10 (restart 0) KSP residual norm 3.536897e+00
11 (restart 0) KSP residual norm 3.313178e+00
12 (restart 0) KSP residual norm 2.321511e+00
13 (restart 0) KSP residual norm 2.096738e+00
14 (restart 0) KSP residual norm 1.529484e+00
15 (restart 0) KSP residual norm 1.200563e+00
16 (restart 0) KSP residual norm 1.014536e+00
17 (restart 0) KSP residual norm 8.589883e-01
18 (restart 0) KSP residual norm 8.059813e-01
19 (restart 0) KSP residual norm 6.322864e-01
20 (restart 0) KSP residual norm 5.360445e-01
21 (restart 0) KSP residual norm 4.894592e-01
22 (restart 0) KSP residual norm 4.489054e-01
23 (restart 0) KSP residual norm 3.765878e-01
24 (restart 0) KSP residual norm 3.047713e-01
25 (restart 0) KSP residual norm 2.875527e-01
26 (restart 0) KSP residual norm 2.519572e-01
27 (restart 0) KSP residual norm 2.082418e-01
28 (restart 0) KSP residual norm 1.882634e-01
29 (restart 0) KSP residual norm 1.639058e-01
30 (restart 0) KSP residual norm 1.384117e-01
31 (restart 0) KSP residual norm 1.129935e-01
32 (restart 0) KSP residual norm 8.957628e-02
33 (restart 0) KSP residual norm 6.692792e-02
34 (restart 0) KSP residual norm 5.163257e-02
35 (restart 0) KSP residual norm 4.252265e-02
36 (restart 0) KSP residual norm 3.163602e-02
37 (restart 0) KSP residual norm 2.674510e-02
38 (restart 0) KSP residual norm 2.284192e-02
39 (restart 0) KSP residual norm 1.863712e-02
40 (restart 0) KSP residual norm 1.339720e-02
41 (restart 0) KSP residual norm 1.118696e-02
42 (restart 0) KSP residual norm 9.308010e-03
43 (restart 0) KSP residual norm 6.524279e-03
44 (restart 0) KSP residual norm 3.443957e-03
45 (restart 0) KSP residual norm 2.502362e-03
46 (restart 0) KSP residual norm 2.064234e-03
47 (restart 0) KSP residual norm 1.374717e-03
48 (restart 0) KSP residual norm 8.446115e-04
49 (restart 0) KSP residual norm 4.791244e-04
50 (restart 0) KSP residual norm 3.895547e-04
51 (restart 0) KSP residual norm 2.533613e-04
52 (restart 0) KSP residual norm 2.107802e-04
53 (restart 0) KSP residual norm 1.245089e-04
54 (restart 0) KSP residual norm 7.647446e-05
55 (restart 0) KSP residual norm 5.991144e-05
56 (restart 0) KSP residual norm 4.158881e-05
57 (restart 0) KSP residual norm 2.764944e-05
58 (restart 0) KSP residual norm 2.164852e-05
59 (restart 0) KSP residual norm 1.386013e-05
60 (restart 0) KSP residual norm 9.671291e-06
61 (restart 0) KSP residual norm 7.164418e-06
62 (restart 0) KSP residual norm 5.274096e-06
63 (restart 0) KSP residual norm 3.954030e-06
64 (restart 0) KSP residual norm 3.225464e-06
65 (restart 0) KSP residual norm 2.045867e-06
66 (restart 0) KSP residual norm 1.417566e-06
67 (restart 0) KSP residual norm 1.024558e-06
68 (restart 0) KSP residual norm 7.214062e-07
69 (restart 0) KSP residual norm 4.470769e-07
70 (restart 0) KSP residual norm 2.711949e-07
GMRES solver converged in 70 iterations (avg. reduction factor: 7.666e-01)
Greedy iteration 1 (n = 4): ω* = 3.559e+00 GHz (8.204e+00), error = 2.889e-02, memory = 0/2
Field energy E (1.514e-10 J) + H (1.488e-10 J) = 3.002e-10 J
Residual norms for GMRES solve
0 (restart 0) KSP residual norm 3.799793e+01
1 (restart 0) KSP residual norm 3.373488e+01
2 (restart 0) KSP residual norm 3.366240e+01
3 (restart 0) KSP residual norm 3.310908e+01
4 (restart 0) KSP residual norm 3.016054e+01
5 (restart 0) KSP residual norm 2.058769e+01
6 (restart 0) KSP residual norm 1.928484e+01
7 (restart 0) KSP residual norm 1.904266e+01
8 (restart 0) KSP residual norm 1.638849e+01
9 (restart 0) KSP residual norm 1.283174e+01
10 (restart 0) KSP residual norm 1.279014e+01
11 (restart 0) KSP residual norm 9.955407e+00
12 (restart 0) KSP residual norm 9.377381e+00
13 (restart 0) KSP residual norm 7.972331e+00
14 (restart 0) KSP residual norm 6.860992e+00
15 (restart 0) KSP residual norm 6.459150e+00
16 (restart 0) KSP residual norm 4.633945e+00
17 (restart 0) KSP residual norm 4.266297e+00
18 (restart 0) KSP residual norm 2.286506e+00
19 (restart 0) KSP residual norm 1.892844e+00
20 (restart 0) KSP residual norm 1.376684e+00
21 (restart 0) KSP residual norm 1.241813e+00
22 (restart 0) KSP residual norm 9.259599e-01
23 (restart 0) KSP residual norm 7.148967e-01
24 (restart 0) KSP residual norm 6.161655e-01
25 (restart 0) KSP residual norm 5.022682e-01
26 (restart 0) KSP residual norm 4.173773e-01
27 (restart 0) KSP residual norm 3.125985e-01
28 (restart 0) KSP residual norm 2.641145e-01
29 (restart 0) KSP residual norm 1.927417e-01
30 (restart 0) KSP residual norm 1.620283e-01
31 (restart 0) KSP residual norm 1.073067e-01
32 (restart 0) KSP residual norm 8.792590e-02
33 (restart 0) KSP residual norm 7.085695e-02
34 (restart 0) KSP residual norm 5.744400e-02
35 (restart 0) KSP residual norm 4.810685e-02
36 (restart 0) KSP residual norm 4.245190e-02
37 (restart 0) KSP residual norm 3.684941e-02
38 (restart 0) KSP residual norm 2.834244e-02
39 (restart 0) KSP residual norm 1.819396e-02
40 (restart 0) KSP residual norm 1.622967e-02
41 (restart 0) KSP residual norm 1.445967e-02
42 (restart 0) KSP residual norm 1.021607e-02
43 (restart 0) KSP residual norm 6.631629e-03
44 (restart 0) KSP residual norm 4.795889e-03
45 (restart 0) KSP residual norm 4.050043e-03
46 (restart 0) KSP residual norm 3.767681e-03
47 (restart 0) KSP residual norm 2.170337e-03
48 (restart 0) KSP residual norm 1.776211e-03
49 (restart 0) KSP residual norm 1.443217e-03
50 (restart 0) KSP residual norm 1.092010e-03
51 (restart 0) KSP residual norm 7.212491e-04
52 (restart 0) KSP residual norm 3.992882e-04
53 (restart 0) KSP residual norm 2.810394e-04
54 (restart 0) KSP residual norm 2.250887e-04
55 (restart 0) KSP residual norm 1.603196e-04
56 (restart 0) KSP residual norm 1.107502e-04
57 (restart 0) KSP residual norm 9.165032e-05
58 (restart 0) KSP residual norm 5.473565e-05
59 (restart 0) KSP residual norm 3.137105e-05
60 (restart 0) KSP residual norm 2.289418e-05
61 (restart 0) KSP residual norm 1.832247e-05
62 (restart 0) KSP residual norm 1.364970e-05
63 (restart 0) KSP residual norm 8.953106e-06
64 (restart 0) KSP residual norm 6.102721e-06
65 (restart 0) KSP residual norm 4.768332e-06
66 (restart 0) KSP residual norm 3.699389e-06
67 (restart 0) KSP residual norm 2.975463e-06
68 (restart 0) KSP residual norm 2.168325e-06
69 (restart 0) KSP residual norm 1.321818e-06
70 (restart 0) KSP residual norm 7.505610e-07
71 (restart 0) KSP residual norm 5.233529e-07
72 (restart 0) KSP residual norm 3.677744e-07
GMRES solver converged in 72 iterations (avg. reduction factor: 7.739e-01)
Greedy iteration 2 (n = 6): ω* = 3.699e+00 GHz (8.528e+00), error = 3.554e-04, memory = 1/2
Field energy E (1.489e-10 J) + H (1.503e-10 J) = 2.992e-10 J
Residual norms for GMRES solve
0 (restart 0) KSP residual norm 3.536610e+01
1 (restart 0) KSP residual norm 2.571423e+01
2 (restart 0) KSP residual norm 2.422841e+01
3 (restart 0) KSP residual norm 2.309287e+01
4 (restart 0) KSP residual norm 2.046721e+01
5 (restart 0) KSP residual norm 1.183939e+01
6 (restart 0) KSP residual norm 1.146978e+01
7 (restart 0) KSP residual norm 6.143077e+00
8 (restart 0) KSP residual norm 3.937467e+00
9 (restart 0) KSP residual norm 3.642669e+00
10 (restart 0) KSP residual norm 3.136752e+00
11 (restart 0) KSP residual norm 2.942034e+00
12 (restart 0) KSP residual norm 1.622465e+00
13 (restart 0) KSP residual norm 1.210364e+00
14 (restart 0) KSP residual norm 1.163298e+00
15 (restart 0) KSP residual norm 7.321433e-01
16 (restart 0) KSP residual norm 6.824077e-01
17 (restart 0) KSP residual norm 5.879976e-01
18 (restart 0) KSP residual norm 5.692206e-01
19 (restart 0) KSP residual norm 4.173462e-01
20 (restart 0) KSP residual norm 3.789784e-01
21 (restart 0) KSP residual norm 3.313825e-01
22 (restart 0) KSP residual norm 2.903195e-01
23 (restart 0) KSP residual norm 2.462981e-01
24 (restart 0) KSP residual norm 2.109452e-01
25 (restart 0) KSP residual norm 1.561334e-01
26 (restart 0) KSP residual norm 1.464396e-01
27 (restart 0) KSP residual norm 1.378046e-01
28 (restart 0) KSP residual norm 1.160200e-01
29 (restart 0) KSP residual norm 9.607997e-02
30 (restart 0) KSP residual norm 8.192800e-02
31 (restart 0) KSP residual norm 7.469792e-02
32 (restart 0) KSP residual norm 6.305716e-02
33 (restart 0) KSP residual norm 3.948976e-02
34 (restart 0) KSP residual norm 3.451110e-02
35 (restart 0) KSP residual norm 3.277911e-02
36 (restart 0) KSP residual norm 2.267087e-02
37 (restart 0) KSP residual norm 1.482570e-02
38 (restart 0) KSP residual norm 1.307038e-02
39 (restart 0) KSP residual norm 1.026631e-02
40 (restart 0) KSP residual norm 8.110762e-03
41 (restart 0) KSP residual norm 5.710051e-03
42 (restart 0) KSP residual norm 4.618839e-03
43 (restart 0) KSP residual norm 3.633657e-03
44 (restart 0) KSP residual norm 2.781496e-03
45 (restart 0) KSP residual norm 1.753873e-03
46 (restart 0) KSP residual norm 1.461383e-03
47 (restart 0) KSP residual norm 8.470596e-04
48 (restart 0) KSP residual norm 7.167393e-04
49 (restart 0) KSP residual norm 4.713145e-04
50 (restart 0) KSP residual norm 3.738804e-04
51 (restart 0) KSP residual norm 2.366735e-04
52 (restart 0) KSP residual norm 1.939915e-04
53 (restart 0) KSP residual norm 1.193320e-04
54 (restart 0) KSP residual norm 8.507378e-05
55 (restart 0) KSP residual norm 5.150795e-05
56 (restart 0) KSP residual norm 2.853629e-05
57 (restart 0) KSP residual norm 1.390993e-05
58 (restart 0) KSP residual norm 1.090543e-05
59 (restart 0) KSP residual norm 7.069266e-06
60 (restart 0) KSP residual norm 3.362940e-06
61 (restart 0) KSP residual norm 2.186088e-06
62 (restart 0) KSP residual norm 1.257064e-06
63 (restart 0) KSP residual norm 9.412653e-07
64 (restart 0) KSP residual norm 5.152412e-07
65 (restart 0) KSP residual norm 3.243458e-07
GMRES solver converged in 65 iterations (avg. reduction factor: 7.522e-01)
Greedy iteration 3 (n = 8): ω* = 3.390e+00 GHz (7.815e+00), error = 3.837e-05, memory = 2/2
Field energy E (1.510e-10 J) + H (1.437e-10 J) = 2.946e-10 J
Adaptive sampling converged with 5 frequency samples:
n = 10, error = 3.837e-05, tol = 1.000e-03, memory = 2/2
Sampled frequencies (GHz): 3.300e+00, 3.800e+00, 3.559e+00, 3.699e+00,
3.390e+00
Sample errors: inf, inf, 2.889e-02, 3.554e-04, 3.837e-05
Total offline phase elapsed time: 2.24e+03 s
Beginning fast frequency sweep online phase
It 1/51: ω/2π = 3.300e+00 GHz (total elapsed time = 2.24e+03 s)
Sol. ||E|| = 3.490689e+01
Field energy E (1.492e-10 J) + H (1.401e-10 J) = 2.893e-10 J
S[1][1] = +1.117e-01-1.895e-01i, |S[1][1]| = -1.315e+01, arg(S[1][1]) = -5.949e+01
S[2][1] = +8.268e-01+5.012e-01i, |S[2][1]| = -2.931e-01, arg(S[2][1]) = +3.122e+01
Wrote fields to disk (Paraview) at step 1
It 2/51: ω/2π = 3.310e+00 GHz (total elapsed time = 2.26e+03 s)
Sol. ||E|| = 3.493403e+01
Field energy E (1.494e-10 J) + H (1.405e-10 J) = 2.899e-10 J
S[1][1] = +1.053e-01-1.866e-01i, |S[1][1]| = -1.338e+01, arg(S[1][1]) = -6.055e+01
S[2][1] = +8.368e-01+4.866e-01i, |S[2][1]| = -2.825e-01, arg(S[2][1]) = +3.018e+01
It 3/51: ω/2π = 3.320e+00 GHz (total elapsed time = 2.26e+03 s)
Sol. ||E|| = 3.495984e+01
Field energy E (1.497e-10 J) + H (1.409e-10 J) = 2.906e-10 J
S[1][1] = +9.914e-02-1.835e-01i, |S[1][1]| = -1.361e+01, arg(S[1][1]) = -6.162e+01
S[2][1] = +8.465e-01+4.719e-01i, |S[2][1]| = -2.720e-01, arg(S[2][1]) = +2.913e+01
It 4/51: ω/2π = 3.330e+00 GHz (total elapsed time = 2.26e+03 s)
Sol. ||E|| = 3.498429e+01
Field energy E (1.499e-10 J) + H (1.413e-10 J) = 2.912e-10 J
S[1][1] = +9.304e-02-1.802e-01i, |S[1][1]| = -1.386e+01, arg(S[1][1]) = -6.269e+01
S[2][1] = +8.560e-01+4.568e-01i, |S[2][1]| = -2.618e-01, arg(S[2][1]) = +2.809e+01
It 5/51: ω/2π = 3.340e+00 GHz (total elapsed time = 2.27e+03 s)
Sol. ||E|| = 3.500734e+01
Field energy E (1.501e-10 J) + H (1.417e-10 J) = 2.918e-10 J
S[1][1] = +8.706e-02-1.767e-01i, |S[1][1]| = -1.411e+01, arg(S[1][1]) = -6.377e+01
S[2][1] = +8.653e-01+4.416e-01i, |S[2][1]| = -2.518e-01, arg(S[2][1]) = +2.704e+01
It 6/51: ω/2π = 3.350e+00 GHz (total elapsed time = 2.27e+03 s)
Sol. ||E|| = 3.502898e+01
Field energy E (1.503e-10 J) + H (1.421e-10 J) = 2.924e-10 J
S[1][1] = +8.121e-02-1.730e-01i, |S[1][1]| = -1.438e+01, arg(S[1][1]) = -6.485e+01
S[2][1] = +8.742e-01+4.261e-01i, |S[2][1]| = -2.420e-01, arg(S[2][1]) = +2.598e+01
Wrote fields to disk (Paraview) at step 6
It 7/51: ω/2π = 3.360e+00 GHz (total elapsed time = 2.29e+03 s)
Sol. ||E|| = 3.504916e+01
Field energy E (1.505e-10 J) + H (1.425e-10 J) = 2.930e-10 J
S[1][1] = +7.550e-02-1.690e-01i, |S[1][1]| = -1.465e+01, arg(S[1][1]) = -6.593e+01
S[2][1] = +8.829e-01+4.104e-01i, |S[2][1]| = -2.325e-01, arg(S[2][1]) = +2.493e+01
It 8/51: ω/2π = 3.370e+00 GHz (total elapsed time = 2.29e+03 s)
Sol. ||E|| = 3.506786e+01
Field energy E (1.507e-10 J) + H (1.429e-10 J) = 2.936e-10 J
S[1][1] = +6.993e-02-1.649e-01i, |S[1][1]| = -1.494e+01, arg(S[1][1]) = -6.702e+01
S[2][1] = +8.912e-01+3.944e-01i, |S[2][1]| = -2.233e-01, arg(S[2][1]) = +2.387e+01
It 9/51: ω/2π = 3.380e+00 GHz (total elapsed time = 2.29e+03 s)
Sol. ||E|| = 3.508507e+01
Field energy E (1.508e-10 J) + H (1.433e-10 J) = 2.941e-10 J
S[1][1] = +6.451e-02-1.606e-01i, |S[1][1]| = -1.524e+01, arg(S[1][1]) = -6.811e+01
S[2][1] = +8.993e-01+3.783e-01i, |S[2][1]| = -2.143e-01, arg(S[2][1]) = +2.281e+01
It 10/51: ω/2π = 3.390e+00 GHz (total elapsed time = 2.29e+03 s)
Sol. ||E|| = 3.510075e+01
Field energy E (1.510e-10 J) + H (1.437e-10 J) = 2.947e-10 J
S[1][1] = +5.925e-02-1.561e-01i, |S[1][1]| = -1.555e+01, arg(S[1][1]) = -6.921e+01
S[2][1] = +9.071e-01+3.619e-01i, |S[2][1]| = -2.056e-01, arg(S[2][1]) = +2.175e+01
It 11/51: ω/2π = 3.400e+00 GHz (total elapsed time = 2.29e+03 s)
Sol. ||E|| = 3.511489e+01
Field energy E (1.511e-10 J) + H (1.440e-10 J) = 2.952e-10 J
S[1][1] = +5.416e-02-1.514e-01i, |S[1][1]| = -1.587e+01, arg(S[1][1]) = -7.032e+01
S[2][1] = +9.145e-01+3.454e-01i, |S[2][1]| = -1.972e-01, arg(S[2][1]) = +2.069e+01
Wrote fields to disk (Paraview) at step 11
It 12/51: ω/2π = 3.410e+00 GHz (total elapsed time = 2.32e+03 s)
Sol. ||E|| = 3.512747e+01
Field energy E (1.513e-10 J) + H (1.444e-10 J) = 2.957e-10 J
S[1][1] = +4.924e-02-1.466e-01i, |S[1][1]| = -1.622e+01, arg(S[1][1]) = -7.143e+01
S[2][1] = +9.216e-01+3.287e-01i, |S[2][1]| = -1.890e-01, arg(S[2][1]) = +1.963e+01
It 13/51: ω/2π = 3.420e+00 GHz (total elapsed time = 2.32e+03 s)
Sol. ||E|| = 3.513848e+01
Field energy E (1.514e-10 J) + H (1.448e-10 J) = 2.961e-10 J
S[1][1] = +4.451e-02-1.415e-01i, |S[1][1]| = -1.657e+01, arg(S[1][1]) = -7.254e+01
S[2][1] = +9.284e-01+3.117e-01i, |S[2][1]| = -1.812e-01, arg(S[2][1]) = +1.856e+01
It 14/51: ω/2π = 3.430e+00 GHz (total elapsed time = 2.32e+03 s)
Sol. ||E|| = 3.514789e+01
Field energy E (1.515e-10 J) + H (1.451e-10 J) = 2.966e-10 J
S[1][1] = +3.996e-02-1.364e-01i, |S[1][1]| = -1.695e+01, arg(S[1][1]) = -7.367e+01
S[2][1] = +9.349e-01+2.946e-01i, |S[2][1]| = -1.737e-01, arg(S[2][1]) = +1.749e+01
It 15/51: ω/2π = 3.440e+00 GHz (total elapsed time = 2.32e+03 s)
Sol. ||E|| = 3.515571e+01
Field energy E (1.515e-10 J) + H (1.455e-10 J) = 2.970e-10 J
S[1][1] = +3.560e-02-1.310e-01i, |S[1][1]| = -1.734e+01, arg(S[1][1]) = -7.480e+01
S[2][1] = +9.410e-01+2.774e-01i, |S[2][1]| = -1.666e-01, arg(S[2][1]) = +1.642e+01
It 16/51: ω/2π = 3.450e+00 GHz (total elapsed time = 2.32e+03 s)
Sol. ||E|| = 3.516192e+01
Field energy E (1.516e-10 J) + H (1.458e-10 J) = 2.974e-10 J
S[1][1] = +3.144e-02-1.256e-01i, |S[1][1]| = -1.776e+01, arg(S[1][1]) = -7.594e+01
S[2][1] = +9.467e-01+2.599e-01i, |S[2][1]| = -1.597e-01, arg(S[2][1]) = +1.535e+01
Wrote fields to disk (Paraview) at step 16
It 17/51: ω/2π = 3.460e+00 GHz (total elapsed time = 2.34e+03 s)
Sol. ||E|| = 3.516651e+01
Field energy E (1.517e-10 J) + H (1.461e-10 J) = 2.978e-10 J
S[1][1] = +2.749e-02-1.199e-01i, |S[1][1]| = -1.820e+01, arg(S[1][1]) = -7.709e+01
S[2][1] = +9.522e-01+2.424e-01i, |S[2][1]| = -1.532e-01, arg(S[2][1]) = +1.428e+01
It 18/51: ω/2π = 3.470e+00 GHz (total elapsed time = 2.35e+03 s)
Sol. ||E|| = 3.516949e+01
Field energy E (1.517e-10 J) + H (1.465e-10 J) = 2.982e-10 J
S[1][1] = +2.375e-02-1.142e-01i, |S[1][1]| = -1.866e+01, arg(S[1][1]) = -7.825e+01
S[2][1] = +9.572e-01+2.246e-01i, |S[2][1]| = -1.471e-01, arg(S[2][1]) = +1.321e+01
It 19/51: ω/2π = 3.480e+00 GHz (total elapsed time = 2.35e+03 s)
Sol. ||E|| = 3.517085e+01
Field energy E (1.517e-10 J) + H (1.468e-10 J) = 2.985e-10 J
S[1][1] = +2.023e-02-1.083e-01i, |S[1][1]| = -1.916e+01, arg(S[1][1]) = -7.942e+01
S[2][1] = +9.619e-01+2.068e-01i, |S[2][1]| = -1.413e-01, arg(S[2][1]) = +1.213e+01
It 20/51: ω/2π = 3.490e+00 GHz (total elapsed time = 2.35e+03 s)
Sol. ||E|| = 3.517059e+01
Field energy E (1.517e-10 J) + H (1.471e-10 J) = 2.988e-10 J
S[1][1] = +1.693e-02-1.024e-01i, |S[1][1]| = -1.968e+01, arg(S[1][1]) = -8.061e+01
S[2][1] = +9.662e-01+1.888e-01i, |S[2][1]| = -1.358e-01, arg(S[2][1]) = +1.106e+01
It 21/51: ω/2π = 3.500e+00 GHz (total elapsed time = 2.35e+03 s)
Sol. ||E|| = 3.516871e+01
Field energy E (1.517e-10 J) + H (1.473e-10 J) = 2.991e-10 J
S[1][1] = +1.385e-02-9.628e-02i, |S[1][1]| = -2.024e+01, arg(S[1][1]) = -8.181e+01
S[2][1] = +9.702e-01+1.707e-01i, |S[2][1]| = -1.307e-01, arg(S[2][1]) = +9.981e+00
Wrote fields to disk (Paraview) at step 21
It 22/51: ω/2π = 3.510e+00 GHz (total elapsed time = 2.37e+03 s)
Sol. ||E|| = 3.516523e+01
Field energy E (1.517e-10 J) + H (1.476e-10 J) = 2.993e-10 J
S[1][1] = +1.100e-02-9.011e-02i, |S[1][1]| = -2.084e+01, arg(S[1][1]) = -8.304e+01
S[2][1] = +9.737e-01+1.525e-01i, |S[2][1]| = -1.260e-01, arg(S[2][1]) = +8.904e+00
It 23/51: ω/2π = 3.520e+00 GHz (total elapsed time = 2.37e+03 s)
Sol. ||E|| = 3.516015e+01
Field energy E (1.517e-10 J) + H (1.479e-10 J) = 2.996e-10 J
S[1][1] = +8.384e-03-8.385e-02i, |S[1][1]| = -2.149e+01, arg(S[1][1]) = -8.429e+01
S[2][1] = +9.769e-01+1.343e-01i, |S[2][1]| = -1.217e-01, arg(S[2][1]) = +7.825e+00
It 24/51: ω/2π = 3.530e+00 GHz (total elapsed time = 2.37e+03 s)
Sol. ||E|| = 3.515348e+01
Field energy E (1.516e-10 J) + H (1.481e-10 J) = 2.998e-10 J
S[1][1] = +6.003e-03-7.752e-02i, |S[1][1]| = -2.219e+01, arg(S[1][1]) = -8.557e+01
S[2][1] = +9.797e-01+1.159e-01i, |S[2][1]| = -1.177e-01, arg(S[2][1]) = +6.746e+00
It 25/51: ω/2π = 3.540e+00 GHz (total elapsed time = 2.37e+03 s)
Sol. ||E|| = 3.514525e+01
Field energy E (1.516e-10 J) + H (1.484e-10 J) = 2.999e-10 J
S[1][1] = +3.860e-03-7.113e-02i, |S[1][1]| = -2.295e+01, arg(S[1][1]) = -8.689e+01
S[2][1] = +9.821e-01+9.745e-02i, |S[2][1]| = -1.141e-01, arg(S[2][1]) = +5.666e+00
It 26/51: ω/2π = 3.550e+00 GHz (total elapsed time = 2.37e+03 s)
Sol. ||E|| = 3.513545e+01
Field energy E (1.515e-10 J) + H (1.486e-10 J) = 3.001e-10 J
S[1][1] = +1.957e-03-6.467e-02i, |S[1][1]| = -2.378e+01, arg(S[1][1]) = -8.827e+01
S[2][1] = +9.842e-01+7.894e-02i, |S[2][1]| = -1.109e-01, arg(S[2][1]) = +4.586e+00
Wrote fields to disk (Paraview) at step 26
It 27/51: ω/2π = 3.560e+00 GHz (total elapsed time = 2.40e+03 s)
Sol. ||E|| = 3.512412e+01
Field energy E (1.514e-10 J) + H (1.488e-10 J) = 3.002e-10 J
S[1][1] = +2.970e-04-5.818e-02i, |S[1][1]| = -2.470e+01, arg(S[1][1]) = -8.971e+01
S[2][1] = +9.858e-01+6.039e-02i, |S[2][1]| = -1.080e-01, arg(S[2][1]) = +3.505e+00
It 28/51: ω/2π = 3.570e+00 GHz (total elapsed time = 2.40e+03 s)
Sol. ||E|| = 3.511128e+01
Field energy E (1.513e-10 J) + H (1.490e-10 J) = 3.003e-10 J
S[1][1] = -1.119e-03-5.164e-02i, |S[1][1]| = -2.574e+01, arg(S[1][1]) = -9.124e+01
S[2][1] = +9.870e-01+4.179e-02i, |S[2][1]| = -1.056e-01, arg(S[2][1]) = +2.424e+00
It 29/51: ω/2π = 3.580e+00 GHz (total elapsed time = 2.40e+03 s)
Sol. ||E|| = 3.509694e+01
Field energy E (1.512e-10 J) + H (1.492e-10 J) = 3.004e-10 J
S[1][1] = -2.291e-03-4.508e-02i, |S[1][1]| = -2.691e+01, arg(S[1][1]) = -9.291e+01
S[2][1] = +9.879e-01+2.316e-02i, |S[2][1]| = -1.035e-01, arg(S[2][1]) = +1.343e+00
It 30/51: ω/2π = 3.590e+00 GHz (total elapsed time = 2.40e+03 s)
Sol. ||E|| = 3.508114e+01
Field energy E (1.511e-10 J) + H (1.494e-10 J) = 3.004e-10 J
S[1][1] = -3.218e-03-3.850e-02i, |S[1][1]| = -2.826e+01, arg(S[1][1]) = -9.478e+01
S[2][1] = +9.883e-01+4.511e-03i, |S[2][1]| = -1.018e-01, arg(S[2][1]) = +2.615e-01
It 31/51: ω/2π = 3.600e+00 GHz (total elapsed time = 2.40e+03 s)
Sol. ||E|| = 3.506391e+01
Field energy E (1.509e-10 J) + H (1.495e-10 J) = 3.004e-10 J
S[1][1] = -3.900e-03-3.192e-02i, |S[1][1]| = -2.985e+01, arg(S[1][1]) = -9.697e+01
S[2][1] = +9.884e-01-1.415e-02i, |S[2][1]| = -1.004e-01, arg(S[2][1]) = -8.201e-01
Wrote fields to disk (Paraview) at step 31
It 32/51: ω/2π = 3.610e+00 GHz (total elapsed time = 2.43e+03 s)
Sol. ||E|| = 3.504527e+01
Field energy E (1.508e-10 J) + H (1.497e-10 J) = 3.004e-10 J
S[1][1] = -4.336e-03-2.534e-02i, |S[1][1]| = -3.180e+01, arg(S[1][1]) = -9.971e+01
S[2][1] = +9.881e-01-3.280e-02i, |S[2][1]| = -9.948e-02, arg(S[2][1]) = -1.902e+00
It 33/51: ω/2π = 3.620e+00 GHz (total elapsed time = 2.43e+03 s)
Sol. ||E|| = 3.502526e+01
Field energy E (1.506e-10 J) + H (1.498e-10 J) = 3.004e-10 J
S[1][1] = -4.529e-03-1.877e-02i, |S[1][1]| = -3.428e+01, arg(S[1][1]) = -1.036e+02
S[2][1] = +9.873e-01-5.145e-02i, |S[2][1]| = -9.891e-02, arg(S[2][1]) = -2.983e+00
It 34/51: ω/2π = 3.630e+00 GHz (total elapsed time = 2.43e+03 s)
Sol. ||E|| = 3.500392e+01
Field energy E (1.504e-10 J) + H (1.499e-10 J) = 3.003e-10 J
S[1][1] = -4.480e-03-1.223e-02i, |S[1][1]| = -3.771e+01, arg(S[1][1]) = -1.101e+02
S[2][1] = +9.862e-01-7.007e-02i, |S[2][1]| = -9.870e-02, arg(S[2][1]) = -4.064e+00
It 35/51: ω/2π = 3.640e+00 GHz (total elapsed time = 2.43e+03 s)
Sol. ||E|| = 3.498129e+01
Field energy E (1.502e-10 J) + H (1.500e-10 J) = 3.002e-10 J
S[1][1] = -4.189e-03-5.715e-03i, |S[1][1]| = -4.299e+01, arg(S[1][1]) = -1.262e+02
S[2][1] = +9.847e-01-8.866e-02i, |S[2][1]| = -9.887e-02, arg(S[2][1]) = -5.145e+00
It 36/51: ω/2π = 3.650e+00 GHz (total elapsed time = 2.43e+03 s)
Sol. ||E|| = 3.495739e+01
Field energy E (1.500e-10 J) + H (1.501e-10 J) = 3.001e-10 J
S[1][1] = -3.660e-03+7.543e-04i, |S[1][1]| = -4.855e+01, arg(S[1][1]) = +1.684e+02
S[2][1] = +9.828e-01-1.072e-01i, |S[2][1]| = -9.940e-02, arg(S[2][1]) = -6.226e+00
Wrote fields to disk (Paraview) at step 36
It 37/51: ω/2π = 3.660e+00 GHz (total elapsed time = 2.45e+03 s)
Sol. ||E|| = 3.493229e+01
Field energy E (1.498e-10 J) + H (1.501e-10 J) = 3.000e-10 J
S[1][1] = -2.894e-03+7.172e-03i, |S[1][1]| = -4.223e+01, arg(S[1][1]) = +1.120e+02
S[2][1] = +9.805e-01-1.257e-01i, |S[2][1]| = -1.003e-01, arg(S[2][1]) = -7.306e+00
It 38/51: ω/2π = 3.670e+00 GHz (total elapsed time = 2.45e+03 s)
Sol. ||E|| = 3.490601e+01
Field energy E (1.496e-10 J) + H (1.502e-10 J) = 2.998e-10 J
S[1][1] = -1.895e-03+1.353e-02i, |S[1][1]| = -3.729e+01, arg(S[1][1]) = +9.797e+01
S[2][1] = +9.778e-01-1.441e-01i, |S[2][1]| = -1.015e-01, arg(S[2][1]) = -8.385e+00
It 39/51: ω/2π = 3.680e+00 GHz (total elapsed time = 2.45e+03 s)
Sol. ||E|| = 3.487861e+01
Field energy E (1.494e-10 J) + H (1.502e-10 J) = 2.996e-10 J
S[1][1] = -6.663e-04+1.981e-02i, |S[1][1]| = -3.406e+01, arg(S[1][1]) = +9.193e+01
S[2][1] = +9.747e-01-1.625e-01i, |S[2][1]| = -1.031e-01, arg(S[2][1]) = -9.464e+00
It 40/51: ω/2π = 3.690e+00 GHz (total elapsed time = 2.45e+03 s)
Sol. ||E|| = 3.485013e+01
Field energy E (1.492e-10 J) + H (1.503e-10 J) = 2.994e-10 J
S[1][1] = +7.884e-04+2.602e-02i, |S[1][1]| = -3.169e+01, arg(S[1][1]) = +8.826e+01
S[2][1] = +9.713e-01-1.808e-01i, |S[2][1]| = -1.051e-01, arg(S[2][1]) = -1.054e+01
It 41/51: ω/2π = 3.700e+00 GHz (total elapsed time = 2.45e+03 s)
Sol. ||E|| = 3.482062e+01
Field energy E (1.489e-10 J) + H (1.503e-10 J) = 2.992e-10 J
S[1][1] = +2.465e-03+3.214e-02i, |S[1][1]| = -2.983e+01, arg(S[1][1]) = +8.561e+01
S[2][1] = +9.675e-01-1.989e-01i, |S[2][1]| = -1.073e-01, arg(S[2][1]) = -1.162e+01
Wrote fields to disk (Paraview) at step 41
It 42/51: ω/2π = 3.710e+00 GHz (total elapsed time = 2.48e+03 s)
Sol. ||E|| = 3.479013e+01
Field energy E (1.486e-10 J) + H (1.503e-10 J) = 2.989e-10 J
S[1][1] = +4.359e-03+3.816e-02i, |S[1][1]| = -2.831e+01, arg(S[1][1]) = +8.348e+01
S[2][1] = +9.633e-01-2.170e-01i, |S[2][1]| = -1.099e-01, arg(S[2][1]) = -1.270e+01
It 43/51: ω/2π = 3.720e+00 GHz (total elapsed time = 2.48e+03 s)
Sol. ||E|| = 3.475871e+01
Field energy E (1.484e-10 J) + H (1.503e-10 J) = 2.987e-10 J
S[1][1] = +6.466e-03+4.408e-02i, |S[1][1]| = -2.702e+01, arg(S[1][1]) = +8.165e+01
S[2][1] = +9.587e-01-2.350e-01i, |S[2][1]| = -1.129e-01, arg(S[2][1]) = -1.377e+01
It 44/51: ω/2π = 3.730e+00 GHz (total elapsed time = 2.48e+03 s)
Sol. ||E|| = 3.472641e+01
Field energy E (1.481e-10 J) + H (1.502e-10 J) = 2.984e-10 J
S[1][1] = +8.780e-03+4.988e-02i, |S[1][1]| = -2.591e+01, arg(S[1][1]) = +8.002e+01
S[2][1] = +9.538e-01-2.528e-01i, |S[2][1]| = -1.161e-01, arg(S[2][1]) = -1.484e+01
It 45/51: ω/2π = 3.740e+00 GHz (total elapsed time = 2.48e+03 s)
Sol. ||E|| = 3.469330e+01
Field energy E (1.478e-10 J) + H (1.502e-10 J) = 2.980e-10 J
S[1][1] = +1.130e-02+5.556e-02i, |S[1][1]| = -2.493e+01, arg(S[1][1]) = +7.851e+01
S[2][1] = +9.485e-01-2.705e-01i, |S[2][1]| = -1.196e-01, arg(S[2][1]) = -1.592e+01
It 46/51: ω/2π = 3.750e+00 GHz (total elapsed time = 2.48e+03 s)
Sol. ||E|| = 3.465942e+01
Field energy E (1.476e-10 J) + H (1.501e-10 J) = 2.977e-10 J
S[1][1] = +1.401e-02+6.112e-02i, |S[1][1]| = -2.405e+01, arg(S[1][1]) = +7.709e+01
S[2][1] = +9.429e-01-2.881e-01i, |S[2][1]| = -1.235e-01, arg(S[2][1]) = -1.699e+01
Wrote fields to disk (Paraview) at step 46
It 47/51: ω/2π = 3.760e+00 GHz (total elapsed time = 2.51e+03 s)
Sol. ||E|| = 3.462482e+01
Field energy E (1.473e-10 J) + H (1.501e-10 J) = 2.973e-10 J
S[1][1] = +1.691e-02+6.653e-02i, |S[1][1]| = -2.327e+01, arg(S[1][1]) = +7.574e+01
S[2][1] = +9.369e-01-3.055e-01i, |S[2][1]| = -1.276e-01, arg(S[2][1]) = -1.806e+01
It 48/51: ω/2π = 3.770e+00 GHz (total elapsed time = 2.51e+03 s)
Sol. ||E|| = 3.458957e+01
Field energy E (1.470e-10 J) + H (1.500e-10 J) = 2.970e-10 J
S[1][1] = +1.999e-02+7.181e-02i, |S[1][1]| = -2.255e+01, arg(S[1][1]) = +7.444e+01
S[2][1] = +9.305e-01-3.228e-01i, |S[2][1]| = -1.320e-01, arg(S[2][1]) = -1.913e+01
It 49/51: ω/2π = 3.780e+00 GHz (total elapsed time = 2.51e+03 s)
Sol. ||E|| = 3.455373e+01
Field energy E (1.467e-10 J) + H (1.499e-10 J) = 2.966e-10 J
S[1][1] = +2.325e-02+7.694e-02i, |S[1][1]| = -2.190e+01, arg(S[1][1]) = +7.318e+01
S[2][1] = +9.239e-01-3.399e-01i, |S[2][1]| = -1.367e-01, arg(S[2][1]) = -2.020e+01
It 50/51: ω/2π = 3.790e+00 GHz (total elapsed time = 2.51e+03 s)
Sol. ||E|| = 3.451734e+01
Field energy E (1.464e-10 J) + H (1.498e-10 J) = 2.962e-10 J
S[1][1] = +2.669e-02+8.191e-02i, |S[1][1]| = -2.130e+01, arg(S[1][1]) = +7.196e+01
S[2][1] = +9.169e-01-3.568e-01i, |S[2][1]| = -1.416e-01, arg(S[2][1]) = -2.126e+01
It 51/51: ω/2π = 3.800e+00 GHz (total elapsed time = 2.51e+03 s)
Sol. ||E|| = 3.448046e+01
Field energy E (1.461e-10 J) + H (1.497e-10 J) = 2.957e-10 J
S[1][1] = +3.028e-02+8.672e-02i, |S[1][1]| = -2.074e+01, arg(S[1][1]) = +7.075e+01
S[2][1] = +9.095e-01-3.735e-01i, |S[2][1]| = -1.468e-01, arg(S[2][1]) = -2.233e+01
Wrote fields to disk (Paraview) at step 51
Completed 0 iterations of adaptive mesh refinement (AMR):
Indicator norm = 2.142e-01, global unknowns = 546784
Max. iterations = 0, tol. = 1.000e-02
Estimated peak per-rank memory usage is: Min. 4.4G, Max. 4.4G, Avg. 4.4G, Total 4.4G
Estimated peak per-node memory usage is: Min. 4.4G, Max. 4.4G, Avg. 4.4G, Total 4.4G
Elapsed Time Report (s) Min. Max. Avg.
==============================================================
Initialization 0.344 0.344 0.344
Mesh Preprocessing 1.330 1.330 1.330
Operator Construction 0.957 0.957 0.957
Wave Ports 0.000 0.000 0.000
Linear Solve 154.415 154.415 154.415
Setup 233.179 233.179 233.179
Preconditioner 1733.194 1733.194 1733.194
Coarse Solve 54.638 54.638 54.638
PROM Construction 2.217 2.217 2.217
PROM Solve 0.215 0.215 0.215
Estimation 1.044 1.044 1.044
Construction 15.491 15.491 15.491
Solve 58.353 58.353 58.353
Postprocessing 15.440 15.440 15.440
Paraview 281.430 281.430 281.430
Disk IO 0.410 0.410 0.410
--------------------------------------------------------------
Total 2552.931 2552.931 2552.931
Peak Memory Per-Node Total Total HWM
==============================================================
Initialization 2.0M 2.0M 2.0M
Mesh Preprocessing 41.8M 41.8M 43.7M
Operator Construction 204.4M 204.4M 248.1M
Wave Ports 0.0K 0.0K 248.1M
Linear Solve 199.5M 199.5M 447.7M
Setup 1.6G 1.6G 2.1G
Preconditioner 454.5M 454.5M 2.5G
Coarse Solve 1.2G 1.2G 3.7G
PROM Construction 0.0K 0.0K 3.7G
PROM Solve 0.0K 0.0K 3.7G
Estimation 115.5M 115.5M 3.8G
Construction 518.7M 518.7M 4.4G
Solve 0.0K 0.0K 4.4G
Postprocessing 0.0K 0.0K 4.4G
Paraview 0.0K 0.0K 4.4G
Disk IO 28.5M 28.5M 4.4G
--------------------------------------------------------------
Total 4.4G 4.4G 4.4G# S parameters. Return the frequency where the minimum is reached.
from pathlib import Path
from palacetoolkit.postpro import s_params
notebook_dir = Path().resolve()
postpro_dir = notebook_dir / "postpro" / "l_antenna_driven"
f = s_params(str(postpro_dir / "port-S.csv"))
Chamfered L-Antenna#
Now repeat the analysis with a 45° chamfer (miter) at the inner corner of the bend. Chamfering a right-angle microstrip bend reduces the discontinuity capacitance, improving return loss and signal integrity at high frequencies.
chamfer: float = 0.6 * w3
mesh_file_ch: str = "l_antenna_chamfered.msh"
total_xmin = -l1/2 - air_margin
total_xmax = l1/2 + air_margin
total_ymin = -w1/2 - air_margin
total_ymax = w1/2 + air_margin
total_zmax = h + air_height
gmsh.initialize()
gmsh.model.add("patch_antenna_chamfered")
kernel = gmsh.model.occ
c = chamfer
poly_pts = [
(-l1/2, -w3/2, h),
(w3 - c, -w3/2, h),
(w3, -w3/2 + c, h),
(w3, w1/2, h),
(0, w1/2, h),
(0, w3/2, h),
(-l1/2, w3/2, h),
]
pt_tags = [kernel.addPoint(x, y, z) for x, y, z in poly_pts]
lines = []
for i in range(len(pt_tags)):
lines.append(kernel.addLine(pt_tags[i], pt_tags[(i+1) % len(pt_tags)]))
loop = kernel.addCurveLoop(lines)
top_conductor_ch = kernel.addPlaneSurface([loop])
kernel.synchronize()
substrate = kernel.addBox(-l1/2, -w1/2, 0, l1, w1, h)
airsphere_radius = max(abs(total_xmin), abs(total_xmax),
abs(total_ymin), abs(total_ymax), total_zmax)
air_sphere = kernel.addSphere(0.0, 0.0, 0.0, airsphere_radius)
ground_plane = kernel.addRectangle(-l1/2, -w1/2, 0, l1, w1)
# Port 1 at x = -l1/2
pa = kernel.addPoint(-l1/2, -w3/2, 0)
pb = kernel.addPoint(-l1/2, w3/2, 0)
pc = kernel.addPoint(-l1/2, w3/2, h)
pd = kernel.addPoint(-l1/2, -w3/2, h)
la = kernel.addLine(pa, pb)
lb = kernel.addLine(pb, pc)
lc = kernel.addLine(pc, pd)
ld = kernel.addLine(pd, pa)
loop1 = kernel.addCurveLoop([la, lb, lc, ld])
lumped_port_1 = kernel.addPlaneSurface([loop1])
# Port 2 at y = w1/2
pe = kernel.addPoint(0, w1/2, 0)
pf = kernel.addPoint(w3, w1/2, 0)
pg = kernel.addPoint(w3, w1/2, h)
ph = kernel.addPoint(0, w1/2, h)
le = kernel.addLine(pe, pf)
lf = kernel.addLine(pf, pg)
lg = kernel.addLine(pg, ph)
lh = kernel.addLine(ph, pe)
loop2 = kernel.addCurveLoop([le, lf, lg, lh])
lumped_port_2 = kernel.addPlaneSurface([loop2])
kernel.synchronize()
entities_ch = [
Entity("substrate", dim=3, btype="dielectric", mesh_order=1,
tags=[substrate], loss_tan=loss_tan, eps_r=eps_r, mu_r=1.0),
Entity("air_sphere", dim=3, btype="dielectric", mesh_order=2,
tags=[air_sphere], loss_tan=0.0, eps_r=1.0, mu_r=1.0),
Entity("top_conductor", dim=2, btype="pec", mesh_order=1,
tags=[top_conductor_ch]),
Entity("ground_plane", dim=2, btype="pec", mesh_order=1, tags=[ground_plane]),
Entity("lumped_port_1", dim=2, btype="lumped_port", mesh_order=0,
tags=[lumped_port_1], R=50.0, direction="+Z", excitation=True),
Entity("lumped_port_2", dim=2, btype="lumped_port", mesh_order=0,
tags=[lumped_port_2], R=50.0, direction="+Z", excitation=False),
]
print("puto")
# Single fragment against 3D volumes (skips boolean cut pipeline)
gmsh.model.occ.synchronize()
dimtags_2d = [dt for e in entities_ch if e.dim == 2 for dt in e.dimtags]
dimtags_3d = [dt for e in entities_ch if e.dim == 3 for dt in e.dimtags]
_, out_map = gmsh.model.occ.fragment(
dimtags_2d, dimtags_3d,
removeObject=True, removeTool=True,
)
gmsh.model.occ.synchronize()
# Update dimtags in same order as fragment call (2D first, then 3D)
frag_order = [e for e in entities_ch if e.dim == 2] + [e for e in entities_ch if e.dim == 3]
idx = 0
for entity in frag_order:
new_tags = []
for _ in entity.dimtags:
if idx < len(out_map):
new_tags.extend(out_map[idx])
idx += 1
if new_tags:
entity.dimtags = list(set(new_tags))
# Direct physical groups
# 3D volumes first, deduplicated by priority so the substrate keeps
# its volume and the air_sphere only claims the remaining air.
pg_map_ch = {}
claimed_vols = set()
for entity in sorted([e for e in entities_ch if e.dim == 3], key=lambda e: e.mesh_order):
tags = [t for d, t in entity.dimtags if d == 3]
unique = [t for t in tags if t not in claimed_vols]
claimed_vols.update(unique)
if unique:
pg = gmsh.model.addPhysicalGroup(3, unique, name=entity.name)
pg_map_ch[entity.name] = pg
for entity in entities_ch:
if entity.dim != 2:
continue
tags = sorted(set(t for d, t in entity.dimtags if d == entity.dim))
if tags:
pg = gmsh.model.addPhysicalGroup(entity.dim, tags, name=entity.name)
pg_map_ch[entity.name] = pg
# Interface surfaces between 3D volumes
vol_ents = [e for e in entities_ch if e.dim == 3]
surf_to_names = {}
for ve in vol_ents:
bnd = gmsh.model.getBoundary(
ve.dimtags, combined=False, oriented=False, recursive=False
)
for d, t in bnd:
if d == 2:
atag = abs(t)
up, _ = gmsh.model.getAdjacencies(2, atag)
adj = {abs(s) for s in up if s > 0}
names = set()
for ve2 in vol_ents:
if any(abs(vt) in adj for dd, vt in ve2.dimtags):
names.add(ve2.name)
surf_to_names.setdefault(atag, set()).update(names)
assigned = {abs(t) for e in entities_ch if e.dim == 2
for d, t in e.dimtags if d == 2}
for stag, names in surf_to_names.items():
if stag in assigned:
continue
slist = sorted(names)
label = "__".join(slist) if len(slist) > 1 else f"{slist[0]}__None"
if label not in pg_map_ch:
pg = gmsh.model.addPhysicalGroup(2, [stag], name=label)
pg_map_ch[label] = pg
create_graded_mesh(wavelength,
ppw_near=30,
ppw_far=15,
set_as_background=True,
local_refinements={
entities_ch[-1].dimtags[0]: 30,
entities_ch[-2].dimtags[0]: 30
})
mesh_sizes_ch = {
"substrate": wavelength / 12,
"air_sphere": wavelength / 4,
"lumped_port_1": wavelength / 18,
"lumped_port_2": wavelength / 18,
"top_conductor": wavelength / 10
}
generate_3d_mesh(entities_ch, mesh_sizes_ch, mesh_file_ch,
optimize=True, verbose=False)
gmsh.finalize()
puto
Info : [ 0%] Fragments
Info : [ 10%] Fragments
Info : [ 20%] Fragments
Info : [ 30%] Fragments
Info : [ 40%] Fragments
Info : [ 50%] Fragments
Info : [ 60%] Fragments
Info : [ 70%] Fragments - Filling splits of vertices
Info : [ 80%] Fragments
Info : [ 90%] Fragments - Looking for internal shapes
ignoring 3 curves from {'air_sphere__None'}
global: 29 curves, SizeMin=0.0030
ppw_near=30 ppw_far=15
SizeMax=0.0061 transition=0.0227
local: dimtag=(2, 11), ppw=30, SizeMin=0.0030
local: dimtag=(2, 10), ppw=30, SizeMin=0.0030
view_mesh(mesh_file_ch, transparent_groups= "air_sphere__None")
Loading mesh file: l_antenna_chamfered.msh
Groups to render transparent: air_sphere__None
Mesh loaded successfully with 2 cell blocks
Found 3600 triangles total
Physical group tags in mesh: {3: 'top_conductor', 4: 'ground_plane', 5: 'lumped_port_1', 6: 'lumped_port_2', 7: 'air_sphere__substrate', 8: 'air_sphere__None'}
from palacetoolkit.simulation import generate_palace_config_from_entities
output_file_transient_ch = "l_antenna_chamfered_transient.json"
output_file_driven_ch = "l_antenna_chamfered_driven.json"
config_transient_ch = generate_palace_config_from_entities(
entity_defs=[e.to_dict() for e in entities_ch],
pg_map=pg_map_ch,
mesh_file=mesh_file_ch,
output_file=output_file_transient_ch,
sim_type="transient",
excitation_freq=freq,
excitation_width=0.05,
max_time=0.5,
time_step=0.005,
save_step=2,
)
config_driven_ch = generate_palace_config_from_entities(
entity_defs=[e.to_dict() for e in entities_ch],
pg_map=pg_map_ch,
mesh_file=mesh_file_ch,
output_file=output_file_driven_ch,
sim_type="driven",
L0=1.0,
solver_order=2,
absorbing_order=1,
farfield=False,
freq_min=freq_min,
freq_max=freq_max,
freq_step=freq_step,
linear_maxits=300,
)
Palace config written to l_antenna_chamfered_transient.json
Palace config written to l_antenna_chamfered_driven.json
from palacetoolkit.simulation import run_palace
# Uncomment to run the simulations (may take hours each):
# run_palace(config_file=output_file_transient_ch, num_procs=1)
# run_palace(config_file=output_file_driven_ch, num_procs=1)
from palacetoolkit.postpro_vtu import generate_transient_video
# Uncomment after running the transient simulation:
# generate_transient_video(
# "postpro/l_antenna_chamfered_transient",
# "l_antenna_chamfered.gif",
# field_name="E", fps=10,
# )
Execution using papermill encountered an exception here and stopped:
import matplotlib.pyplot as plt
import numpy as np
from pathlib import Path
notebook_dir = Path().resolve()
base = notebook_dir / "postpro"
def load_port_s(csv_path):
data = np.loadtxt(csv_path, delimiter=",", skiprows=1)
return data[:, 0], data[:, 1], data[:, 3] # freq, |S11|_dB, |S21|_dB
f_orig, s11_orig, s21_orig = load_port_s(
str(base / "l_antenna_driven" / "port-S.csv"))
f_ch, s11_ch, s21_ch = load_port_s(
str(base / "l_antenna_chamfered_driven" / "port-S.csv"))
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 5))
ax1.plot(f_orig, s11_orig, "b-^", label="Original", markersize=4)
ax1.plot(f_ch, s11_ch, "r-s", label="Chamfered", markersize=4)
ax1.set_xlabel("Frequency (GHz)")
ax1.set_ylabel("|S11| (dB)")
ax1.set_title("Return Loss (S11) - lower is better")
ax1.legend()
ax1.grid(True)
ax2.plot(f_orig, s21_orig, "b-^", label="Original", markersize=4)
ax2.plot(f_ch, s21_ch, "r-s", label="Chamfered", markersize=4)
ax2.set_xlabel("Frequency (GHz)")
ax2.set_ylabel("|S21| (dB)")
ax2.set_title("Insertion Loss (S21) - higher is better")
ax2.legend()
ax2.grid(True)
plt.tight_layout()
plt.show()
idx_orig = np.argmin(s11_orig)
idx_ch = np.argmin(s11_ch)
print(f"Original - min |S11| = {s11_orig[idx_orig]:.1f} dB @ {f_orig[idx_orig]:.3f} GHz")
print(f"Chamfered - min |S11| = {s11_ch[idx_ch]:.1f} dB @ {f_ch[idx_ch]:.3f} GHz")
print(f"|S21| at S11 min: original = {s21_orig[idx_orig]:.2f} dB, chamfered = {s21_ch[idx_ch]:.2f} dB")
---------------------------------------------------------------------------
FileNotFoundError Traceback (most recent call last)
Cell In[18], line 14
10 return data[:, 0], data[:, 1], data[:, 3] # freq, |S11|_dB, |S21|_dB
11
12 f_orig, s11_orig, s21_orig = load_port_s(
13 str(base / "l_antenna_driven" / "port-S.csv"))
---> 14 f_ch, s11_ch, s21_ch = load_port_s(
15 str(base / "l_antenna_chamfered_driven" / "port-S.csv"))
16
17 fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(14, 5))
Cell In[18], line 9, in load_port_s(csv_path)
8 def load_port_s(csv_path):
----> 9 data = np.loadtxt(csv_path, delimiter=",", skiprows=1)
10 return data[:, 0], data[:, 1], data[:, 3] # freq, |S11|_dB, |S21|_dB
File /opt/hostedtoolcache/Python/3.12.13/x64/lib/python3.12/site-packages/numpy/lib/_npyio_impl.py:1381, in loadtxt(fname, dtype, comments, delimiter, converters, skiprows, usecols, unpack, ndmin, encoding, max_rows, quotechar, like)
1378 if isinstance(delimiter, bytes):
1379 delimiter = delimiter.decode('latin1')
-> 1381 arr = _read(fname, dtype=dtype, comment=comment, delimiter=delimiter,
1382 converters=converters, skiplines=skiprows, usecols=usecols,
1383 unpack=unpack, ndmin=ndmin, encoding=encoding,
1384 max_rows=max_rows, quote=quotechar)
1386 return arr
File /opt/hostedtoolcache/Python/3.12.13/x64/lib/python3.12/site-packages/numpy/lib/_npyio_impl.py:1011, in _read(fname, delimiter, comment, quote, imaginary_unit, usecols, skiplines, max_rows, converters, ndmin, unpack, dtype, encoding)
1009 fname = os.fspath(fname)
1010 if isinstance(fname, str):
-> 1011 fh = np.lib._datasource.open(fname, 'rt', encoding=encoding)
1012 if encoding is None:
1013 encoding = getattr(fh, 'encoding', 'latin1')
File /opt/hostedtoolcache/Python/3.12.13/x64/lib/python3.12/site-packages/numpy/lib/_datasource.py:192, in open(path, mode, destpath, encoding, newline)
155 """
156 Open `path` with `mode` and return the file object.
157
(...) 188
189 """
191 ds = DataSource(destpath)
--> 192 return ds.open(path, mode, encoding=encoding, newline=newline)
File /opt/hostedtoolcache/Python/3.12.13/x64/lib/python3.12/site-packages/numpy/lib/_datasource.py:529, in DataSource.open(self, path, mode, encoding, newline)
526 return _file_openers[ext](found, mode=mode,
527 encoding=encoding, newline=newline)
528 else:
--> 529 raise FileNotFoundError(f"{path} not found.")
FileNotFoundError: /home/runner/work/PalaceToolkit/PalaceToolkit/docs/examples/postpro/l_antenna_chamfered_driven/port-S.csv not found.
