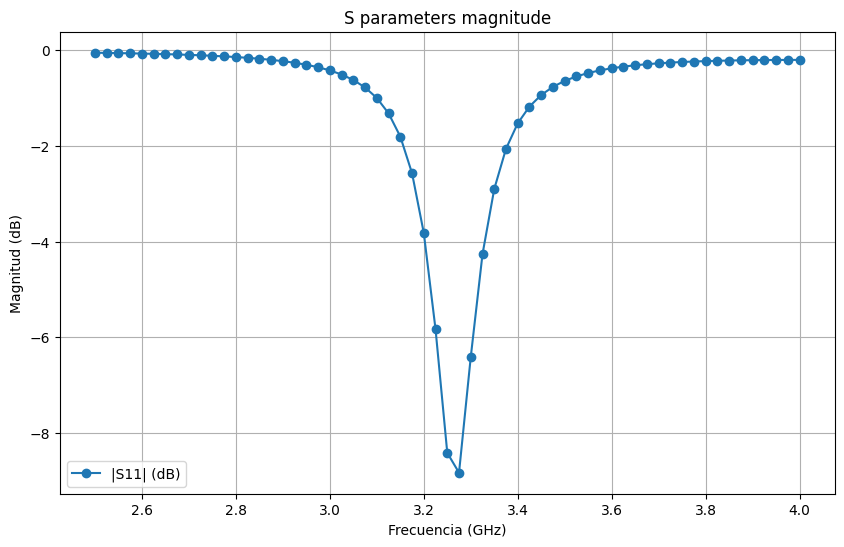

Patch Antenna#
We now apply a refined mesh for the patch antenna. Because the electromagnetic fields change rapidly near the metallic patch and the substrate edges, we increase the mesh density in these areas to ensure high simulation accuracy for resonance and radiation patterns.
import gmsh
import math
from palacetoolkit.plot_farfield import load_data, polar_plots, three_d_plot
from palacetoolkit.postpro import s_params
from palacetoolkit.simulation import generate_palace_config_from_entities
from palacetoolkit.viz import view_mesh
from palacetoolkit.mesh import (
Entity,
run_meshing_pipeline,
generate_3d_mesh,
refine_near_surfaces
)
Parameters:#
l : Patch length along x-axis, specified as a scalar in meters.
w : Patch width along y-axis, specified as a scalar in meters.
h : Patch height along z-axis, specified as a scalar in meters.
l1 : Ground plane length along x-axis, specified as a scalar in meters
w1 : Ground plane width along y-axis, specified as a scalar in meters
l2 : Notch length along x-axis, specified as a scalar in meters.
w2 : Notch width along x-axis, specified as a scalar in meters.
w3 : Strip line width along y-axis, specified as a scalar in meters.
airsphere_radius : Air sphere radius, specified as a scalar in meters.
freq : Simulation frequency in GHz, specified as a scalar.
filename : Output mesh filename, specified as a string.
eps_r: relative permittivity of the substrate
loss_tan: loss tangent of the substrate
port_impedance: characteristic impedance of the lumped port (Ohms)
# Patch
l: float = 0.030
w: float = 0.029
# Ground plane
l1: float = 0.06
w1: float = 0.06
# Notch
l2: float = 0.008
w2: float = 0.003
# Feed line
w3: float = 0.002
# Substrate
h: float = 0.0013
freq: float = 3.3
eps_r: float = 2.2
loss_tan: float = 0.0009
mu_r = 1.0
port_impedance: float = 50.0
wavelength = 3e8 / (freq * 1e9)
# Air sphere
airsphere_radius: float = wavelength
# Filename where the mesh is loadeds
filename = "patch_antenna.msh"
Initialize the model#
gmsh.initialize()
gmsh.model.add("patch_antenna")
kernel = gmsh.model.occ
Geometry Construction#
In this step, we build the physical structure of the patch antenna. We define the substrate, the metallic ground plane, and the antenna patch itself.
Patch Design: We combine the main patch and the feed line, including an inset to help with impedance matching. Excitation: A lumped port is created and positioned to feed the antenna. Domain Setup: We enclose the entire structure in an “air sphere,” which defines the simulation region (the radiation space). Finalizing: We use boolean operations (fragmenting) to ensure all components are properly connected and recognized as a single cohesive model by the solver.
substrate = kernel.addBox(-l1/2, -w1/2, 0, l1, w1, h)
# Ground plane
ground_plane = kernel.addRectangle(-l1/2, -w1/2, 0, l1, w1)
# Patch definition
main_patch = kernel.addRectangle(-l/2, -w/2, h, l, w)
inset = kernel.addRectangle(-l/2, -w2/2, h, l2, w2)
patch_dimtags, _ = kernel.cut(
[(2, main_patch)],
[(2, inset)],
removeObject=True, removeTool=True
)
kernel.synchronize()
feed_length = (l1 - l)/2 + l2
feed_line = kernel.addRectangle(-l1/2, -w3/2, h, feed_length, w3)
# Our patch
top_conductor, _ = kernel.fuse(
patch_dimtags, [(2, feed_line)],
removeObject=True, removeTool=True
)
kernel.synchronize()
# Gap bewteen the gropund plane and the bottom of the lumped port.
lumped_port = kernel.addRectangle(-l1/2, -w3/2, 0, h, w3)
kernel.rotate([(2, lumped_port)], -l1/2, 0, 0, 0, 1, 0, -math.pi/2)
kernel.synchronize()
def create_air_sphere(airsphere_radius: float) -> int:
return kernel.addSphere(0.0, 0.0, 0.0, airsphere_radius)
air_sphere = create_air_sphere(airsphere_radius)
kernel.synchronize()
Info : Cannot bind existing OpenCASCADE surface 8 to second tag 9
Info : Could not preserve tag of 2D object 9 (->8)
Entities definition and mesh refinement.#
# Define the entities which later will become the physical groups.
entities = [
Entity("air_sphere", dim = 3, mesh_order = 2, btype = "dielectric", tags = [air_sphere], loss_tan = 0.0, eps_r = 1.0, mu_r = 1.0),
Entity("substrate", dim = 3, mesh_order = 1, btype = "dielectric", tags = [substrate], loss_tan = loss_tan, eps_r = eps_r, mu_r = mu_r),
Entity("top_conductor", dim = 2, mesh_order= 1, btype = "pec", tags = [top_conductor[0][1]]),
Entity("ground_plane", dim = 2, mesh_order = 1, btype = "pec", tags = [ground_plane]),
Entity("lumped_port", dim = 2, mesh_order = 0, btype = "lumped_port", tags = [lumped_port], R = port_impedance, direction = '+Z', excitation = True)
]
# Boolean operations to guarantee a nice mesh, algo it returns the
# physical group map.
pg_map = run_meshing_pipeline(entities)
# Refine near the top conductor and locally the lumped port
refine_near_surfaces(entities[2].dimtags + entities[-1].dimtags,
wavelength,
ppw_near=400,
ppw_far=5,
transition_distance=wavelength/4,
set_as_background=True)
# # Mesh sizes
# mesh_sizes = {
# "substrate": wavelength / 12,
# "air_sphere": wavelength / 4,
# "lumped_port": wavelength / 150,
# "ground_plane" : wavelength / 10,
# "top_conductor": wavelength / 50
# }
generate_3d_mesh(entities, output_file=filename, optimize=True)
gmsh.option.setNumber("Mesh.MshFileVersion", 2.2)
gmsh.write(filename)
gmsh.finalize()

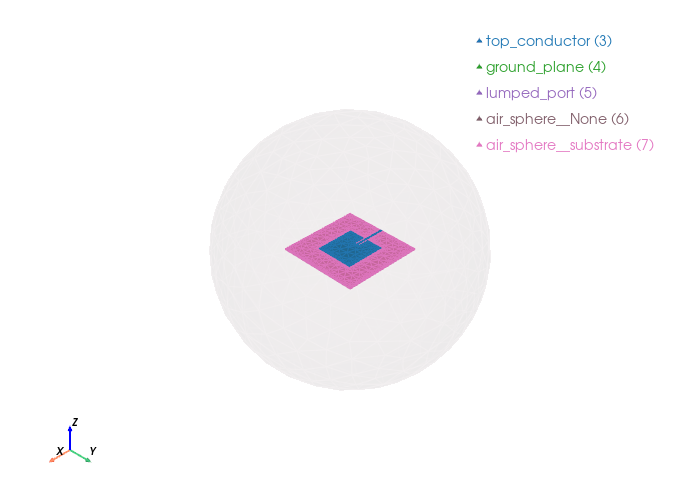

Physical group 'air_sphere' (dim=3): pg=1, tags=[2]
Physical group 'substrate' (dim=3): pg=2, tags=[1]
Physical group 'top_conductor' (dim=2): pg=3, tags=[8]
Physical group 'ground_plane' (dim=2): pg=4, tags=[7]
Physical group 'lumped_port' (dim=2): pg=5, tags=[9]
Physical group 'air_sphere__None' (dim=2): pg=6, tags=[16]
Physical group 'air_sphere__substrate' (dim=2): pg=7, tags=[10, 11, 13, 15, 14, 12]
ppw_near=400 ppw_far=5
SizeMax=0.0182 transition=0.0227
global: 15 curves, SizeMin=0.0002
